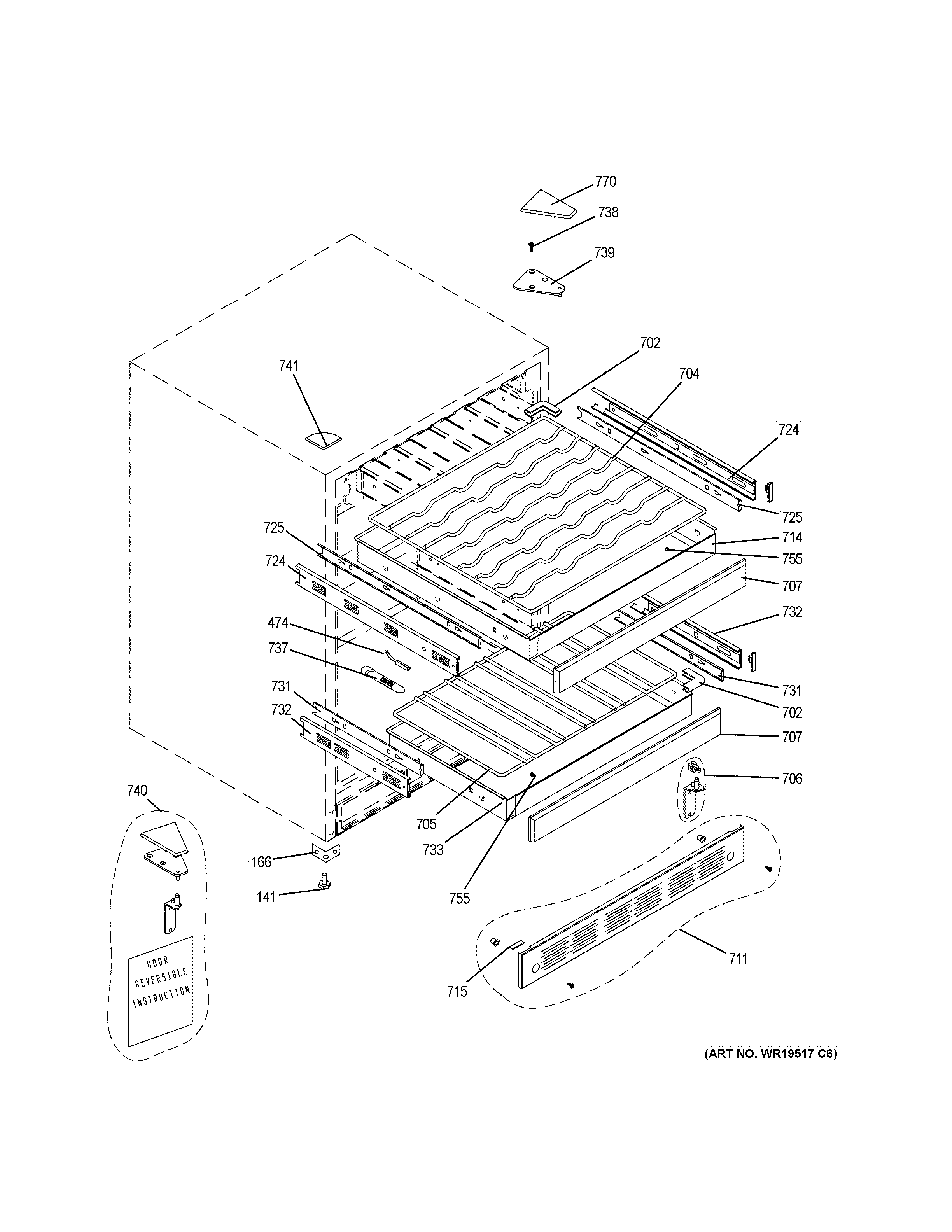

ZDWR240NABS CABINET & SHELVES

ZDWR240NABS CABINET & SHELVES

Written by

in

ZDWR240NABS CABINET & SHELVES

Products

PositionProduct
141WR01X10456 GE Refrigerator Leveling Leg
166WR02X11844 GE Leveling Leg Support
474WR55X10409 GE Refrigerator Temperature Sensor
702WR02X11830 GE Refrigerator Corner Piece
704WR71X23914 GE Refrigerator Bottle Rack
705WR71X23915 GE Refrigerator Short Bottle Rack
706WR17X11701 GE Refrigerator Hinge & Cam Riser Assembly
707WR17X23918 GE Refrigerator Front Frame
711WR74X10142 GE Refrigerator Black Kick Plate
711WR79X10030 GE Refrigerator Kick Plate Stainless Steel
714WR72X23916 GE Refrigerator Bottle Shelf Frame Upper
715WR02X11414 GE Front Kick Plate
724FRAME GUIDE – LONG
725INNER-LINER GUIDE LONG
731INNNER-LINER GUIDE SHORT
732FRAME GUIDE – SHORT
733WR72X23917 GE Refrigerator Bottle Shelf Frame Lower
737TEMP CONTROL BULB COVER
738SCREW ST4 8X13
739WR13X10276 GE Refrigerator Right Upper Hinge
740WR13X10275 GE Refrigerator Reverse Door Hinge Kit
741HINGE COVER
755WR01X10526 GE Frame Front Screw
770WR02X11486 GE Refrigerator Cover Hinge Support Right Hand
