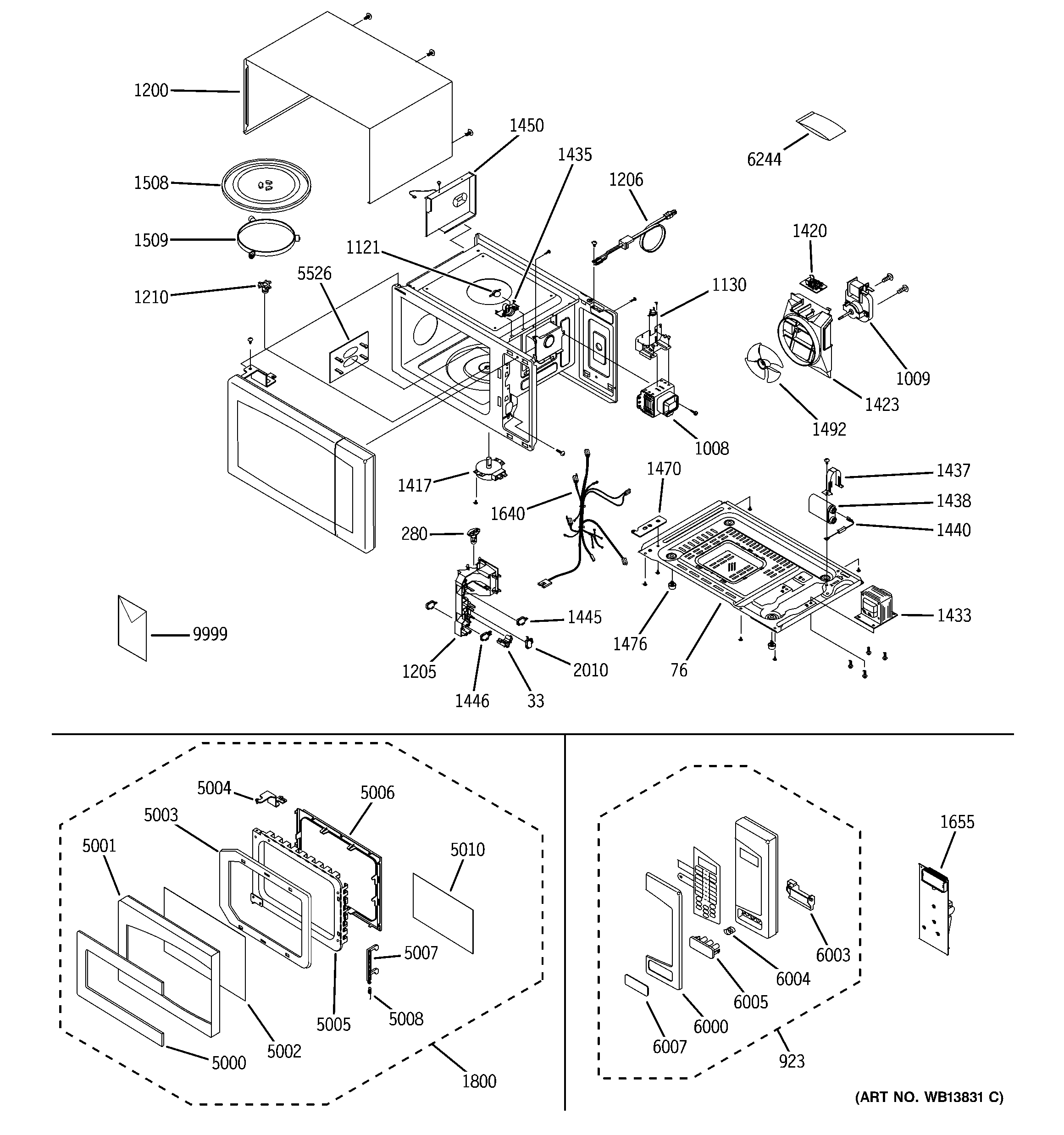

ZE2160SF03 MICROWAVE

Products

Position	Product
33	WB06X10269 GE Oven Latch Slider
76	WB56X10687 GE Base Assembly
280	LAMP (120V, 25W)
923	CONTROL PANEL SUB ASM
1008	MAGNETRON
1009	MOTOR SHADED POLE
1121	WB27X10909 GE Oven Cavity Thermostat
1130	GEN WB27X10567
1200	WB56X10389 GE Oven Cabinet
1205	LOCK
1206	WB18X10219 GE Oven Power Cord Assembly
1210	COUPLER
1417	GEN WB26X0186
1420	GEN WB27X10741
1423	WB06X10163 GE Oven Wind Guide
1433	GEN WB27X10685
1435	WB02X10807 GE Oven Thermostat Holder
1437	WB06X10407 GE HV Capacitor Holder
1438	WB27X10907 GE Microwave High Voltage Capacitor
1440	WB27X10908 GE Oven High Voltage Diode Assembly
1445	GEN WB24X0823
1446	GEN WB24X10103
1450	HUMID SENSOR/DUCT
1470	WB14X209 GE Oven Lower Hinge
1476	WB06X10500 GE Oven Foot
1492	WB26X190 GE Oven Fan Blade
1508	TRAY
1509	GUIDE ROLLER AS
1640	WB18X10220 GE Oven Main Harness
1655	PCB MAIN AS
1800	DOOR ASM
2010	GEN WB24X0824
5000	WB06X10506 GE Oven Door Decorator Assembly
5001	WB55X10623 GE Oven Door Frame
5002	WB36X10241 GE Oven Barrier Screen
5003	WB55X10624 GE Support Bar Screen
5004	GEN WB14X0210
5005	WB55X10622 GE Oven Door Painting Assembly
5006	WB02X10896 GE Microwave Door Gasket
5007	WB05X10009 GE Oven Hook
5008	WB9X306 GE Oven Door Spring
5010	BARRIER SCREEN*I
5526	WB48X10047 GE Oven Wave Guide Cover
6000	WB06X10505 GE Microwave Control Panel
6003	LEVER DOOR OPEN
6004	BUTTON SPRING
6005	BUTTON DOOR OPEN
6007	WB06X10503 GE Microwave Door Button Stainless Steel
6244	BAG SCREW AS
9999	GEN 31-40500
9999	GEN 49-40303
9999	GEN 49-40394
