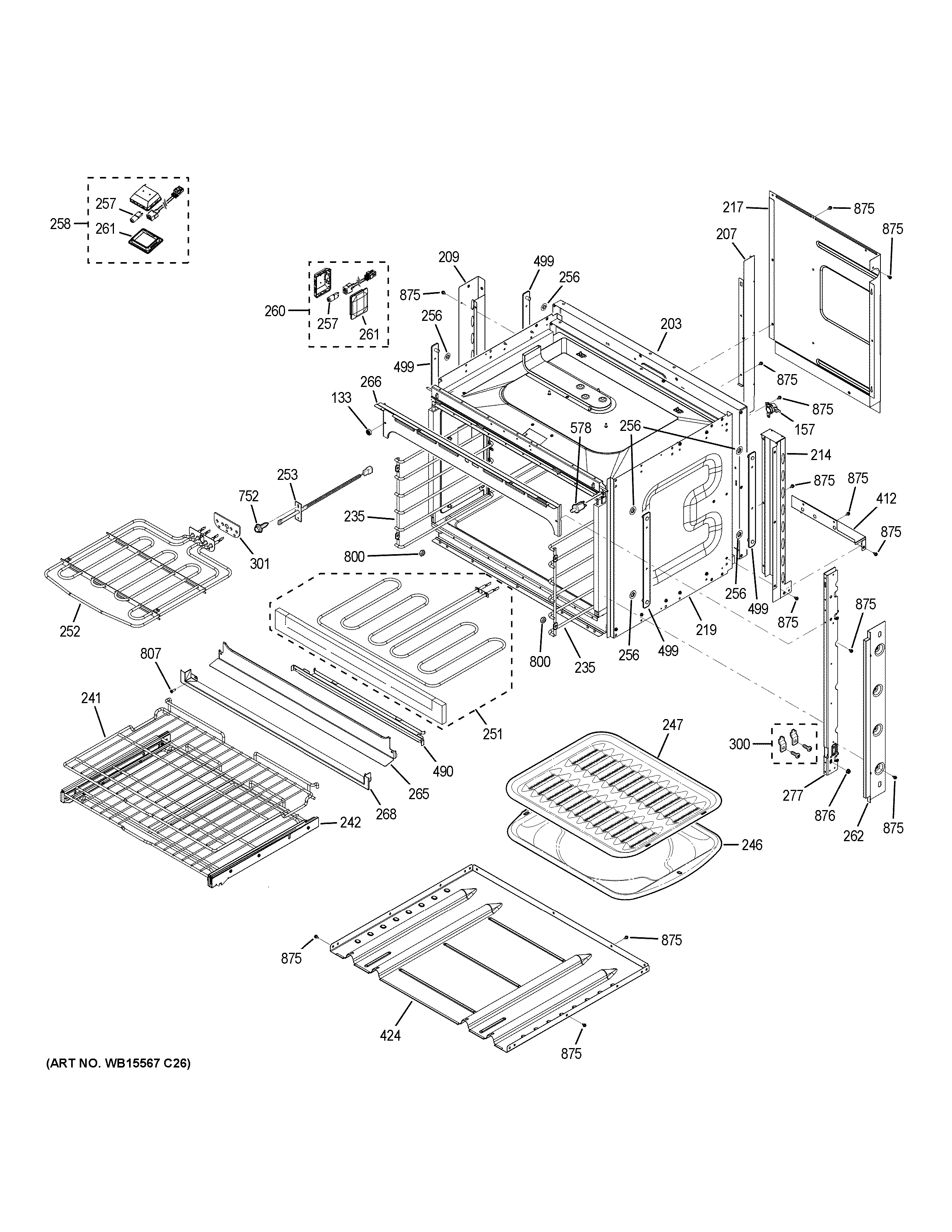

ZEK7000SH3SS BODY PARTS

ZEK7000SH3SS BODY PARTS

Written by

in

ZEK7000SH3SS BODY PARTS

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
203RETAINER INSULATION BACK
207WB34T10134 GE Center Air Divider
209WB34X21910 GE Oven Rear Channel LT
214WB55X10971 GE Rear Channel
217WB34T10135 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
235WB48X21766 GE Oven Guide Rack Left
235WB48X21765 GE Oven Right Guide Rack
241WB48X23816 GE Oven Flat Rack
242RACK OVN SLIDE ASM
246BROILER PAN
247WB48X31884 GE Broiler Pan Grid
251WB44X21668 GE Oven Bake Element
252WB44T10124 GE Oven Broil Element Assembly
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
260WB25X31223 GE Oven Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
262WB07X11402 GE Oven Vertical Side Trim (Black)
265WB07T10807 GE Oven Lower Black Trim Vent
266WB07T10806 GE Upper Vent Trim
268WB07T10778 GE Oven Bottom Trim Cabinet
277WB07T10751 GE Oven Vertical Left Brace Black
277WB07T10750 GE Oven Right Vertical Brace
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
412WB34T10151 GE Air Duct Lower Right Cover
424WB34T10155 GE Oven Bottom Air Duct Cover
490WB55T10195 GE Oven Hidden Bake Cover
499WB34X30789 GE Cavity Brace Assembly
578WB24T10147 GE Oven SPDT Light Switch
752WB01X21742 GE Screw
800WB01X21270 GE Oven Rack Guide Nut
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
876LOCK NUT
