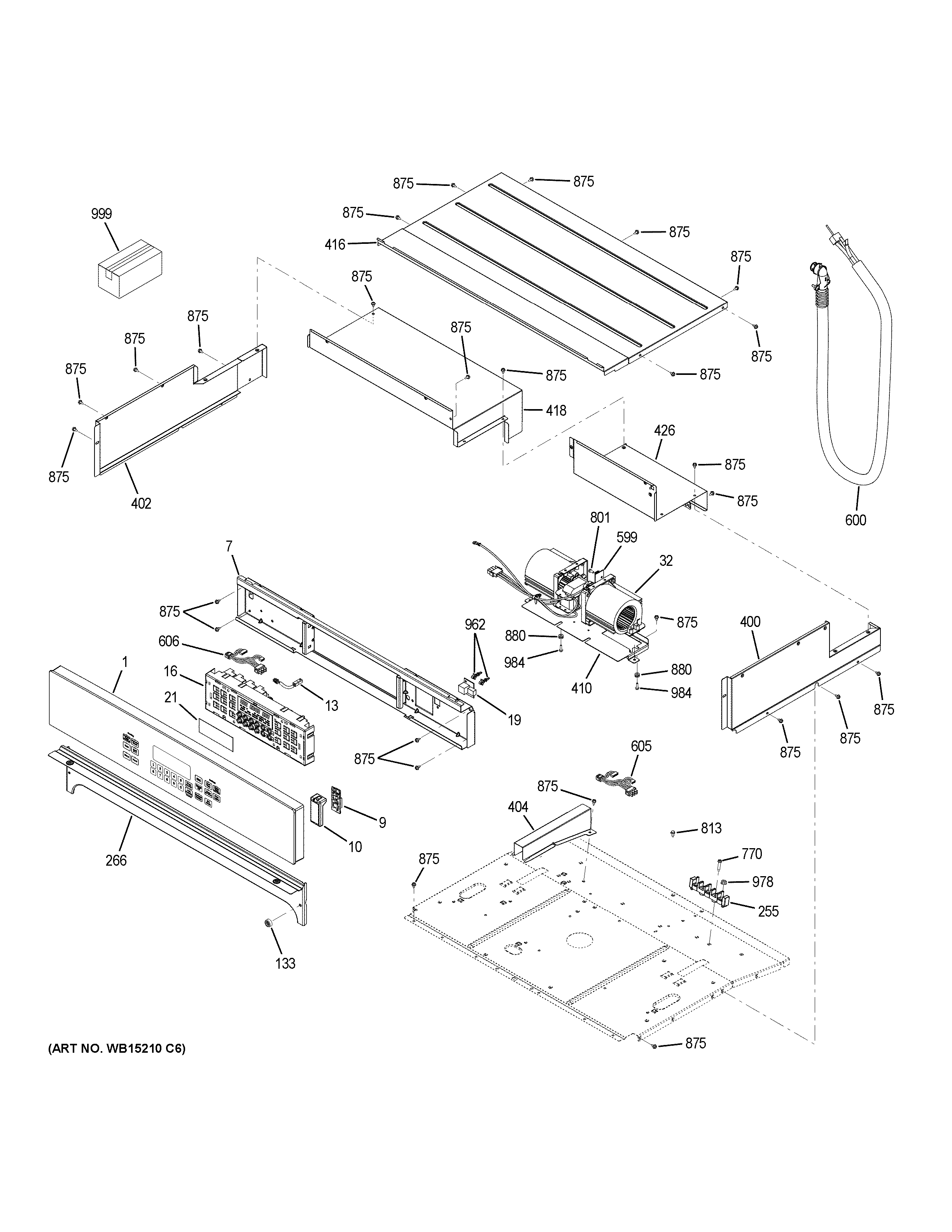

ZEK7000SH4SS CONTROL PANEL

ZEK7000SH4SS CONTROL PANEL

Written by

in

ZEK7000SH4SS CONTROL PANEL

Products

PositionProduct
1LABEL WIRE DIAGRAM
1CONTROL PANEL ASM
7WB07T10729 GE Oven Control Mounting Panel
9WB27X33353 GE Wi-Fi Module Kit
10WB02X20265 GE Transceiver Housing
13WB18X30704 GE Jumper
16WB27X32240 GE Oven Control Board
19WB27X20933 GE Oven RJ45 Housing Assembly
21WB27T11116 GE Clock Display Filter
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
255WB17K10001 GE Oven Block Terminal
266WB07T10806 GE Upper Vent Trim
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416COVER TOP FRONT
418WB34T10154 GE Rear Top Cover
426COVER WIRE REAR
599WB27T11463 GE Oven Fan Sensor Board
600WB18X35246 GE Conduit Wire SWO
600WB18T10581 GE Oven 6 FT Optional Conduit
605HARNESS WIRE MAIN
606WB18T10552 GE Wire Extension Harness
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
875WH2X930 GE Screw
880WB01T10128 GE Grommet
962WB02T10093 GE Oven Standoff Printed Circuit Board
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999MANUAL U&C TIP SHEET
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999INSTRUCTION INSTALL
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM INSTRUCTIONS INSTALL
999PM INSTALL INSTRUCTIONS
