ZEK7500SH3SS LOWER DOOR

ZEK7500SH3SS LOWER DOOR

Written by

in

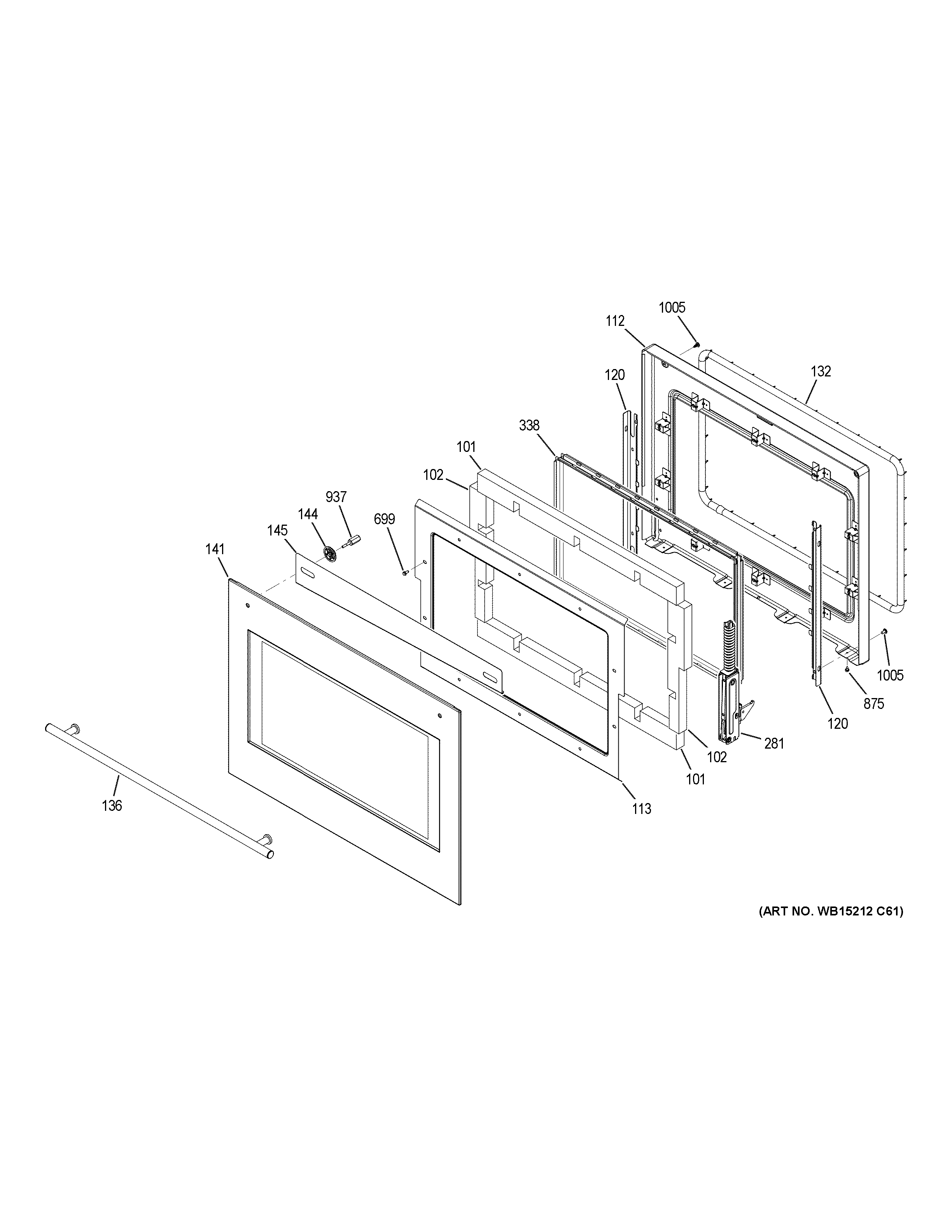

ZEK7500SH3SS LOWER DOOR

Products

PositionProduct
102INSULATION DR SIDE
112WB63X32817 GE Oven Door Liner Kit
113WB34T10152 GE Oven Insulation Retainer
120LINER SUPPORT
132WB35X34867 GE Oven Door Gasket
136WB15X23834 GE Oven Handle Assembly
141WB56X23835 GE Oven Glass and Trim Assembly
144WB02T10524 GE Oven Door Handle Spacer
145WB34T10143 GE Oven Deflector Door
281WB10X30579 GE Oven Right Door Hinge
281WB10X30580 GE Oven Left Door Hinge
338WB56X27502 GE Oven Inner Door Glass
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
937WB01X23728 GE Reinforcement Spacer Assembly
1005WB01T10008 GE Oven Screw 10-32
