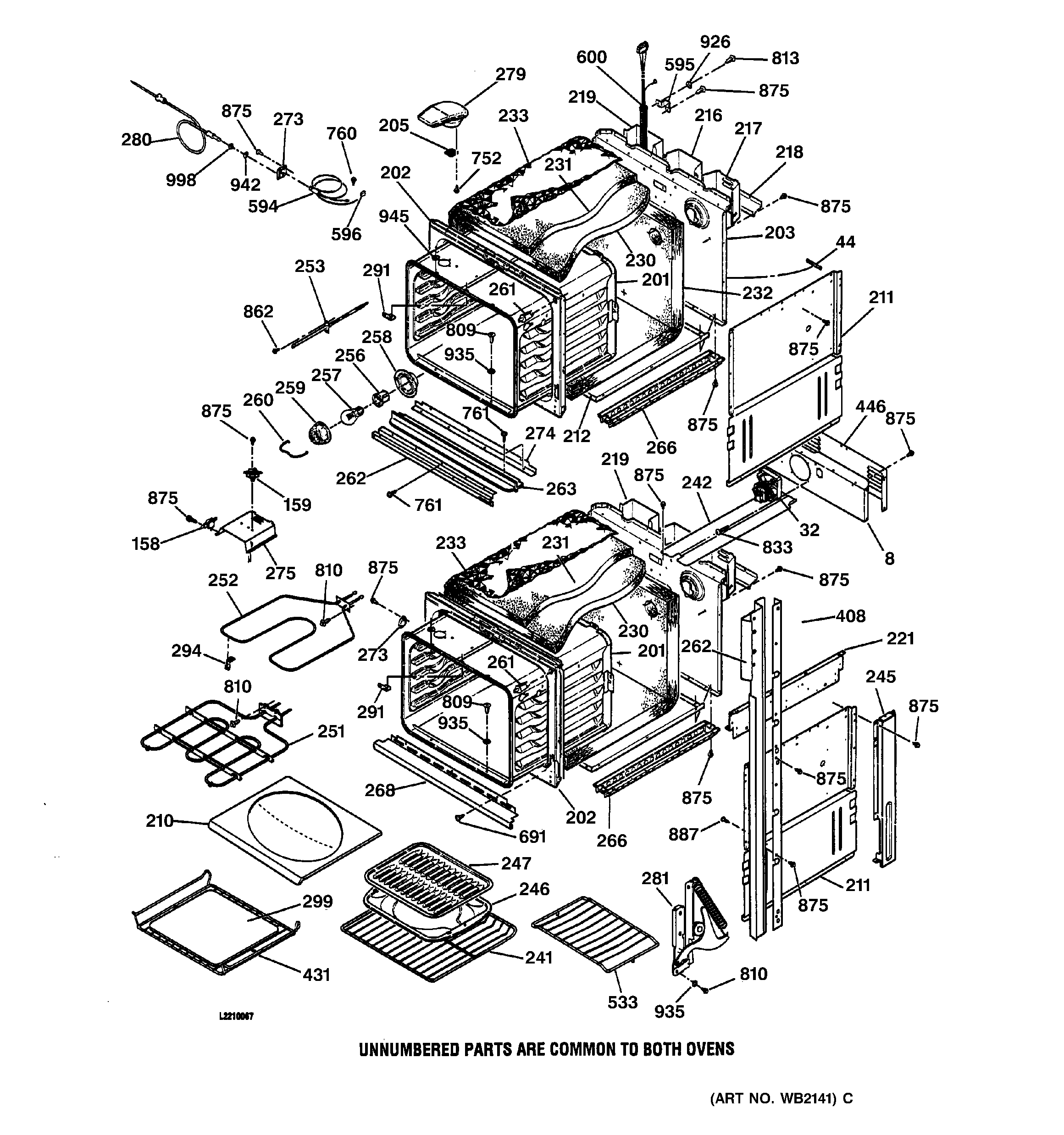

ZEK757WA2WW BODY PARTS

ZEK757WA2WW BODY PARTS

Written by

in

ZEK757WA2WW BODY PARTS

Products

PositionProduct
8FAN SUPPORT-LOWER
8GEN WB02K5257
32WB26K5072 GE Oven Fan Assembly
32GEN WB26K5045
32FAN MOTOR CONV.
44GEN WB02K5225
158WB24K5033 GE Oven Limit Switch
159WB24K5049 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
201GEN WB63T10040
202GEN WB63T10036
203WB63K5167 GE Back Main
205WB6K5026 GE Oven Smoke El Screw
210GEN WB63T10041
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34T10006
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221SIDE EXTENSTION-RT-UPPER
221GEN WB63K5174
221SIDE EXTENSION-LT-UPPER
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
241GEN WB48K5009
242WB38K5041 GE Vent Box
245GEN WB02K5139
247WB48X10056 GE Broil Pan Set, Large Porcelain
251GEN WB44T10013
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07K5097
262VERT SIDE TRIM-RT-WHT
262GEN WB07K5079
263GEN WB07K5511
266WB63K5079 GE Rail Base
268GEN WB07K5080
273PROBE COVER
274GEN WB07K5485
275WB34K5078 GE Oven Vent Box Cover
279VENT BOX ASM-BLACK
280WB20T10024 GE Oven Thermistor Probe
281GEN WB10T10001
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
299GEN WB06K5038
299GEN WB06K5037
408GEN WB02T10050
408GEN WB02T10051
431GEN WB48K5010
446WB34K5089 GE Wire Center Cover
533WB48X5108 GE Oven Roasting Rack
594GEN WB08K5054
595WB2K5126 GE Oven Condenser Clamp
596GEN WB08K5013
600WB18X32567 GE Conduit Wire Assembly
691GEN WB01K5163
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB1K5185 GE Oven White Screw
761WB1K5134 GE Gray Screw
761WB1K5029 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
833WB1X1131 GE Screw 6-32
862GEN WB01X1178
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
