ZEK938BM1BB CONTROL PANEL

ZEK938BM1BB CONTROL PANEL

Written by

in

ZEK938BM1BB CONTROL PANEL

Products

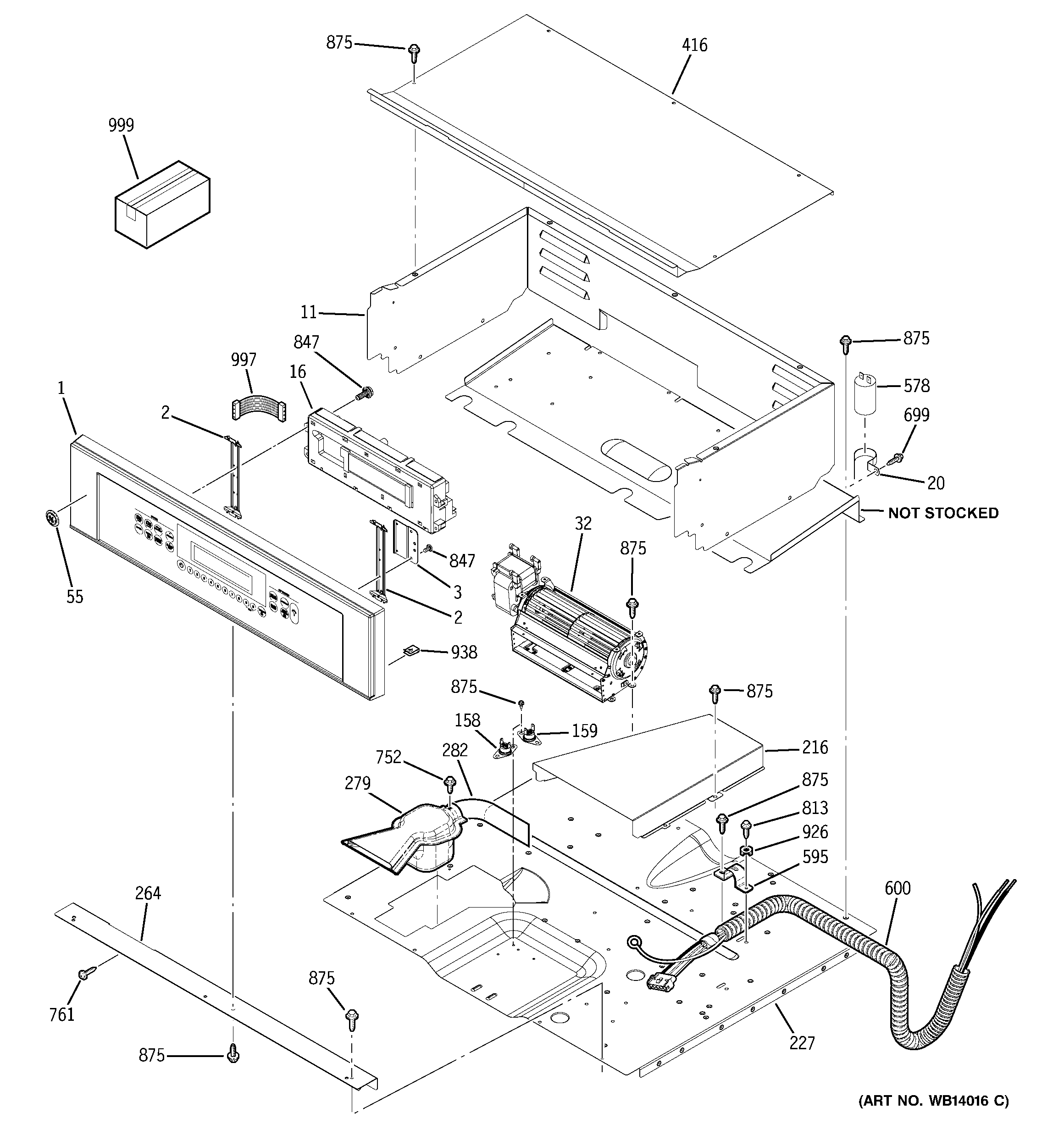

PositionProduct
1GEN WB36T11037
2WB02T10398 GE Bracket Control Mounting
3GEN WB02T10399
11WB02T10362 GE Fan Housing
16WB27T10918 GE Oven Control (ERC3HP)
20WB02T10152 GE Oven Motor Capacitor Bracket
32GEN WB26T10045
55WB02X10833 GE Oven Monogram Badge Small
158WB24T10144 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
282WB28T10213 GE Vent Tube Assembly
282WB28T10212 GE Inlet Duct Vent
416WB02T10363 GE Electrical Top Cover
578WB27T10662 GE Oven Capacitor
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10221
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
938WB1K5209 GE Oven Clip
997WB18T10386 GE Oven Touch Glass Wire Harness
999GEN 31-14541
999GEN 31-10645
999INSTR INSTALL OVN DOOR
999GEN 49-80435
999GEN 31-10647
