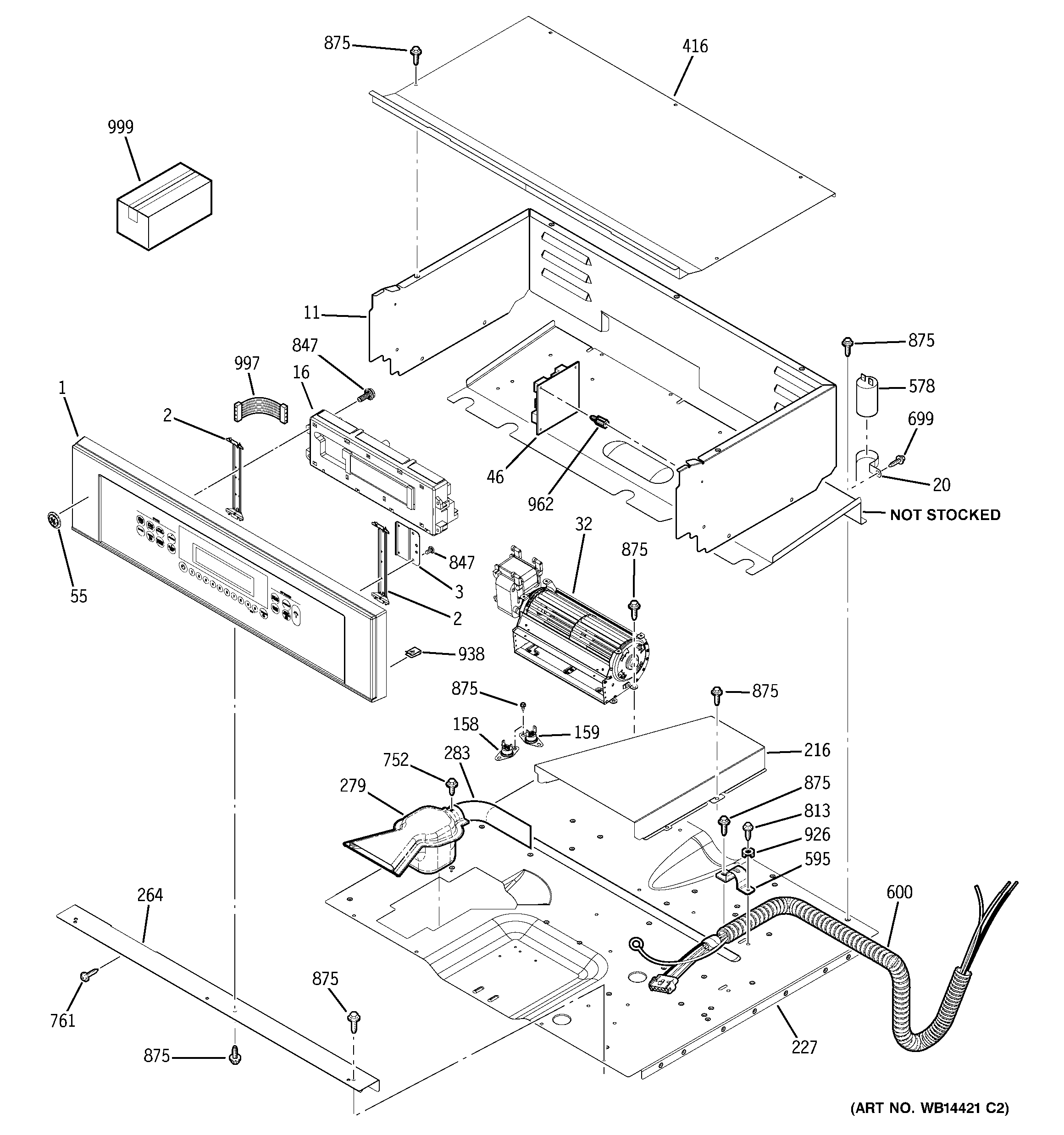

ZEK958BM2BB CONTROL PANEL

Products

Position	Product
1	GEN WB36T11137
2	WB02T10398 GE Bracket Control Mounting
3	GEN WB02T10399
11	WB02T10362 GE Fan Housing
16	WB27T10904 GE Oven Control ERC 27 MG
20	WB02T10152 GE Oven Motor Capacitor Bracket
32	GEN WB26T10057
46	WB27T10568 GE Oven Range Control Board
55	WB02X10833 GE Oven Monogram Badge Small
158	WB24T10080 GE Oven Bake Thermostat
159	WB24T10096 GE Oven Limit Bimetal Switch
216	WB34T10057 GE Oven Top Cover Wire
227	GEN WB02T10356
264	WB07T10539 GE Trim Vent
279	WB38T10019 GE Oven Vent Box Assembly
283	WB28T10212 GE Inlet Duct Vent
283	WB28T10081 GE Lower Oven Vent Inlet Duct
416	WB02T10363 GE Electrical Top Cover
578	WB27T10662 GE Oven Capacitor
595	WB2K5126 GE Oven Condenser Clamp
600	WB18T10225 GE Oven Wire Conduit Assembly
600	WB18T10448 GE Oven Wire Conduit Assembly
699	WB1M1 GE Oven Screw
752	WB1K5200 GE Oven Screw 340531
761	WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
813	WB1X1261 GE Oven Screw
847	WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875	WZ4X245D GE Screw Package
875	WH2X930 GE Screw
926	GROUND WASHER
938	WB1K5209 GE Oven Clip
962	WB02T10207 GE PCB Standoff
997	WB18T10371 GE Oven Ribbon Connector GLS Touch
999	INSTR INSTALL OVN DOOR
999	GEN 31-10730
999	GEN 31-14535
999	WB18T10342 GE Oven Logic/Display Harness
999	GEN 49-80583
