ZEK958WF3WW CONTROL PANEL & COOKTOP

ZEK958WF3WW CONTROL PANEL & COOKTOP

Written by

in

ZEK958WF3WW CONTROL PANEL & COOKTOP

Products

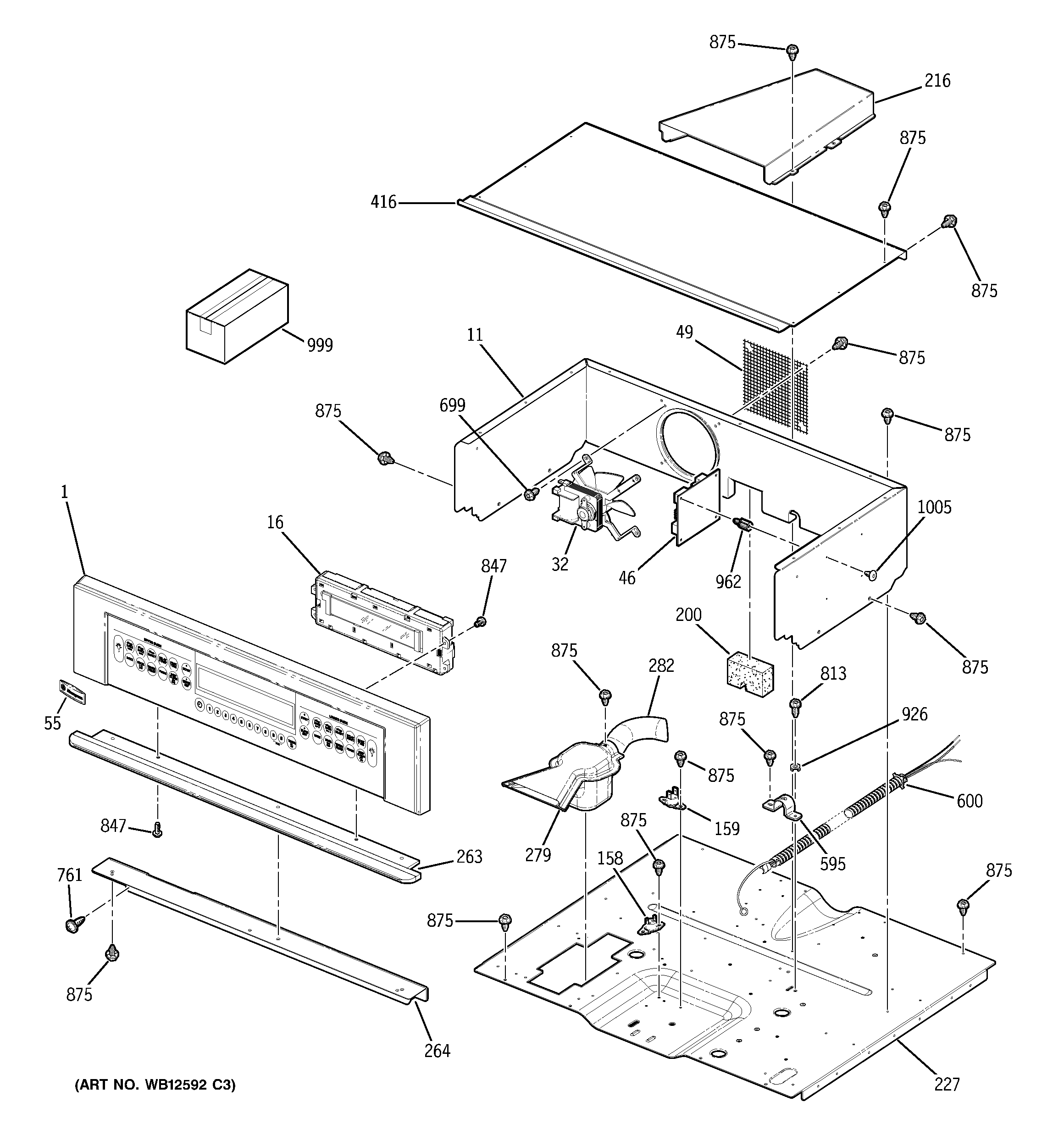

PositionProduct
1PANEL CNTL ASM WH
11GEN WB36T10389
11GEN WB02T10158
16GEN WB27T10572
16GEN WB27T10437
32GEN WB64T10028
32WB26T10018 GE Oven Fan Motor
46WB27T10568 GE Oven Range Control Board
49WB34T10091 GE Oven Fan Screen
55WB02X10833 GE Oven Monogram Badge Small
158WB24T10067 GE Oven Limit Switch Lower
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10167
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10159
263GEN WB07T10382
264GEN WB07T10307
264TRIM MIDDLE ASM WH
279WB38T10019 GE Oven Vent Box Assembly
282WB38X33650 GE Vent Tube
282GEN WB28T10082
282DUCT VNT INLET-UPR
416GEN WB35T10060
595WB2K5126 GE Oven Condenser Clamp
600WB18T10225 GE Oven Wire Conduit Assembly
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847SCREW
847WB1K5167 GE Screw 8-18 X 3/8"
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
962WB02T10160 GE Oven Circuit Board Standoff
962GEN WB18T10269
999GEN 49-80135
999GEN WB18T10364
999GEN 31-10551
999WB18T10342 GE Oven Logic/Display Harness
999GEN 31-10514
999GEN 31-10523
999GEN 31-14022
1005WB01T10008 GE Oven Screw 10-32
