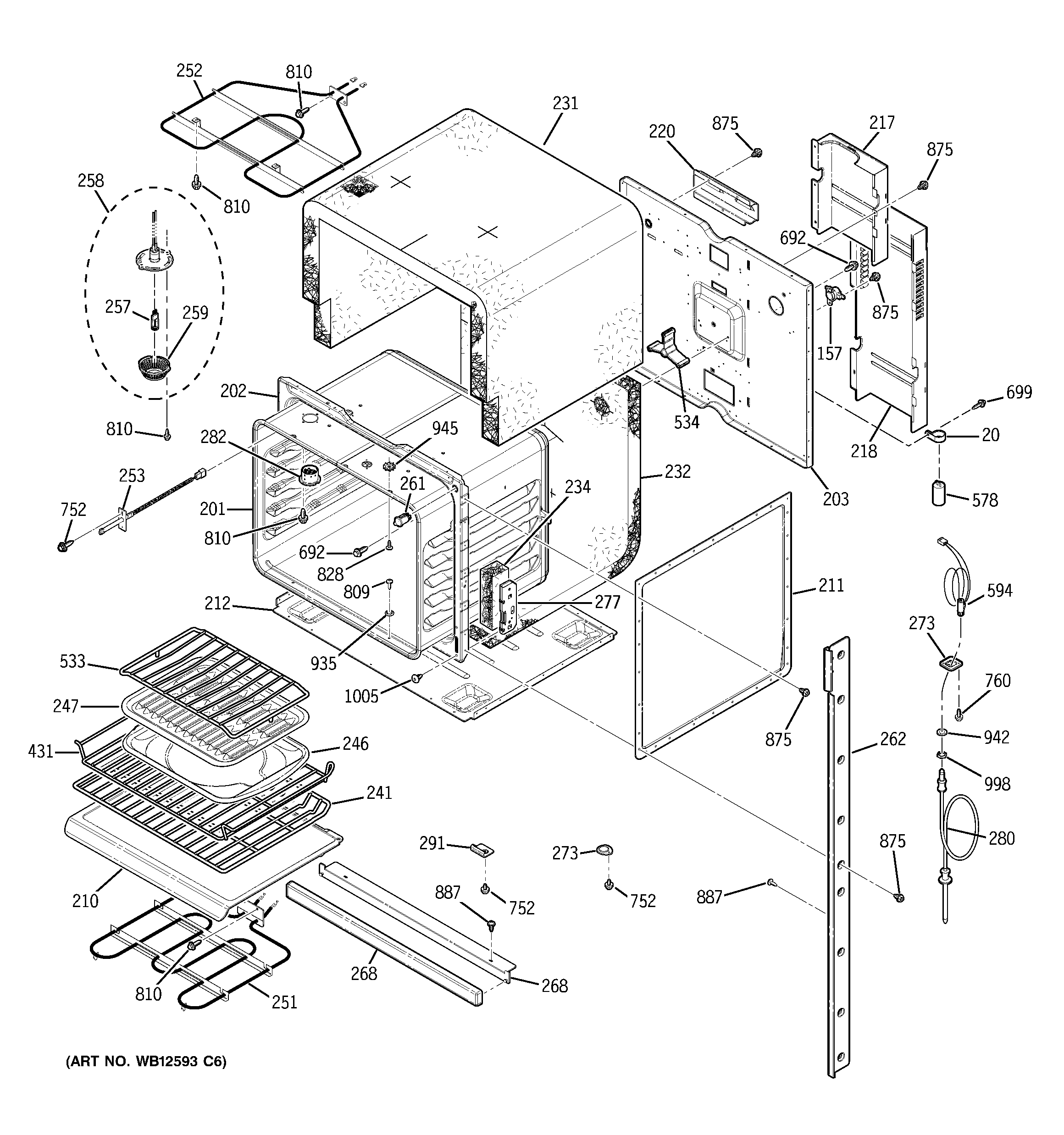

ZEK958WF7WW UPPER OVEN

ZEK958WF7WW UPPER OVEN

Written by

in

ZEK958WF7WW UPPER OVEN

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
157WB24T10081 GE Oven High Limit Thermostat
157WB24T10082 GE Oven High Limit Upper Switch
201GEN WB63T10089
202GEN WB63T10072
203GEN WB63T10087
210GEN WB63T10080
211GEN WB63T10091
212WB63T10082 GE Bottom Insulation Retainer
217GEN WB34T10062
218GEN WB34T10063
218GEN WB34T10056
220GEN WB34T10061
231GEN WB35T10075
232GEN WB35T10076
234INSULATION WRAPPER
241GEN WB48T10035
246WB48X10056 GE Broil Pan Set, Large Porcelain
251GEN WB44T10052
252WB44T10051 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB25T10025
259OV LAMP LENS LWR
261GEN WB24T10111
262GEN WB07T10309
262GEN WB07T10308
268GEN WB07T10377
268GEN WB07T10457
273GEN WB02X8309
273PROBE COVER
277GEN WB10T10076
280WB20T10024 GE Oven Thermistor Probe
282DUCT VNT INLET-UPR
282GEN WB28T10082
282WB38X33650 GE Vent Tube
291GEN WB02X9152
431GEN WB48T10034
533WB48X5108 GE Oven Roasting Rack
534GEN WB26T10017
578GEN WB27T10503
594GEN WB08T10042
594RECEPTACLE JACK
692SCREW
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
828WB1X1141 GE Oven Screw 8-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
935WB1K5174 GE Oven Washer
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
