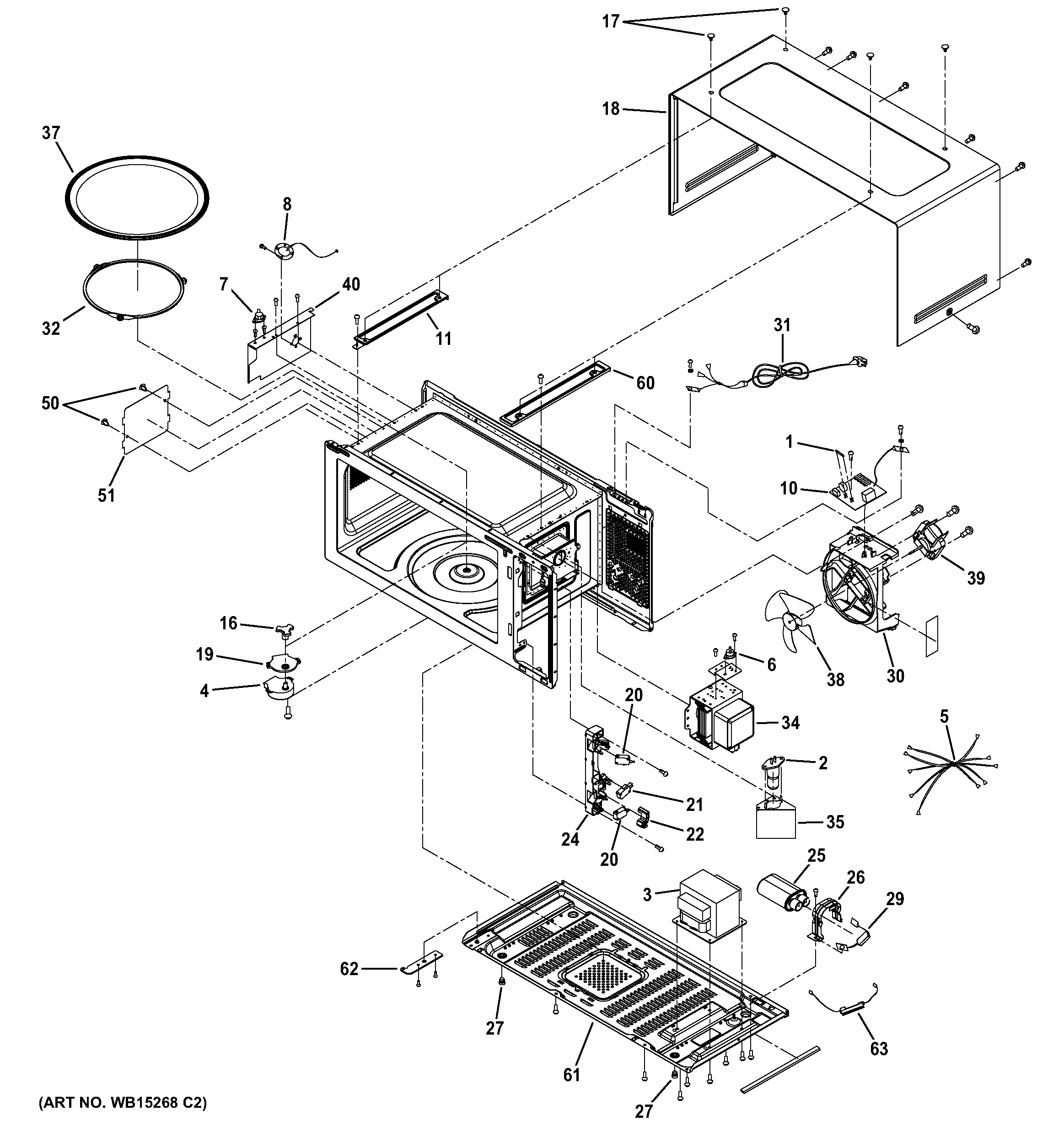

ZEM115SF1SS OVEN CAVITY PARTSadmin2025-04-26T10:41:58+00:00ZEM115SF1SS OVEN CAVITY PARTS ProductsPositionProduct1WB24X21303 GE Oven Fuse2WB25X21309 GE Oven Lamp3WB26X21335 GE Oven High Voltage Transformer4WB26X10252 GE Oven Tray Motor5WB18X21306 GE Harness6WB20X10054 GE Oven 160/95 V Thermostat7WB20X10056 GE Oven Thermostat 120/240 V8WB24X21307 GE Humidity Sensor Assembly10WB27X11140 GE Noise Filter11WB34X21316 GE Oven Left Hand Mounting Plate16WB02X21279 GE Oven Coupler17WB01X21329 GE Plastic Nail18OUTER CASE19WB35X21305 GE Oven Gasket20MICROSWITCH21WB02X21314 GE Oven Microswitch Monitor22WB02X21311 GE Range Lever Switch24BOARD LATCH25WB24X21272 GE High Voltage Capacitor26WB06X10933 GE Bracket27WB02X21302 GE Oven Foot29WB26X28935 GE Microwave Diode30FAN GUIDE31WB18X21330 GE Power Cord Assembly32WB02X21331 GE Oven Roller Guide34WB26X21312 GE Oven Magnetron35DUCT37WB48X21336 GE Oven Microwave Glass Turntable Tray38WB06X10860 GE Oven Fan39WB26X21315 GE Fan Motor40SIDE SHIELD50WB01X10418 GE Oven Plastic Nail51WB39X10034 GE Oven Waveguide Cover60WB34X21317 GE Oven Right Hand Mounting Plate61BASE PLATE62WB10X21338 GE Lower Hinge63WB24X21304 GE Oven High Voltage Fuse Assembly
