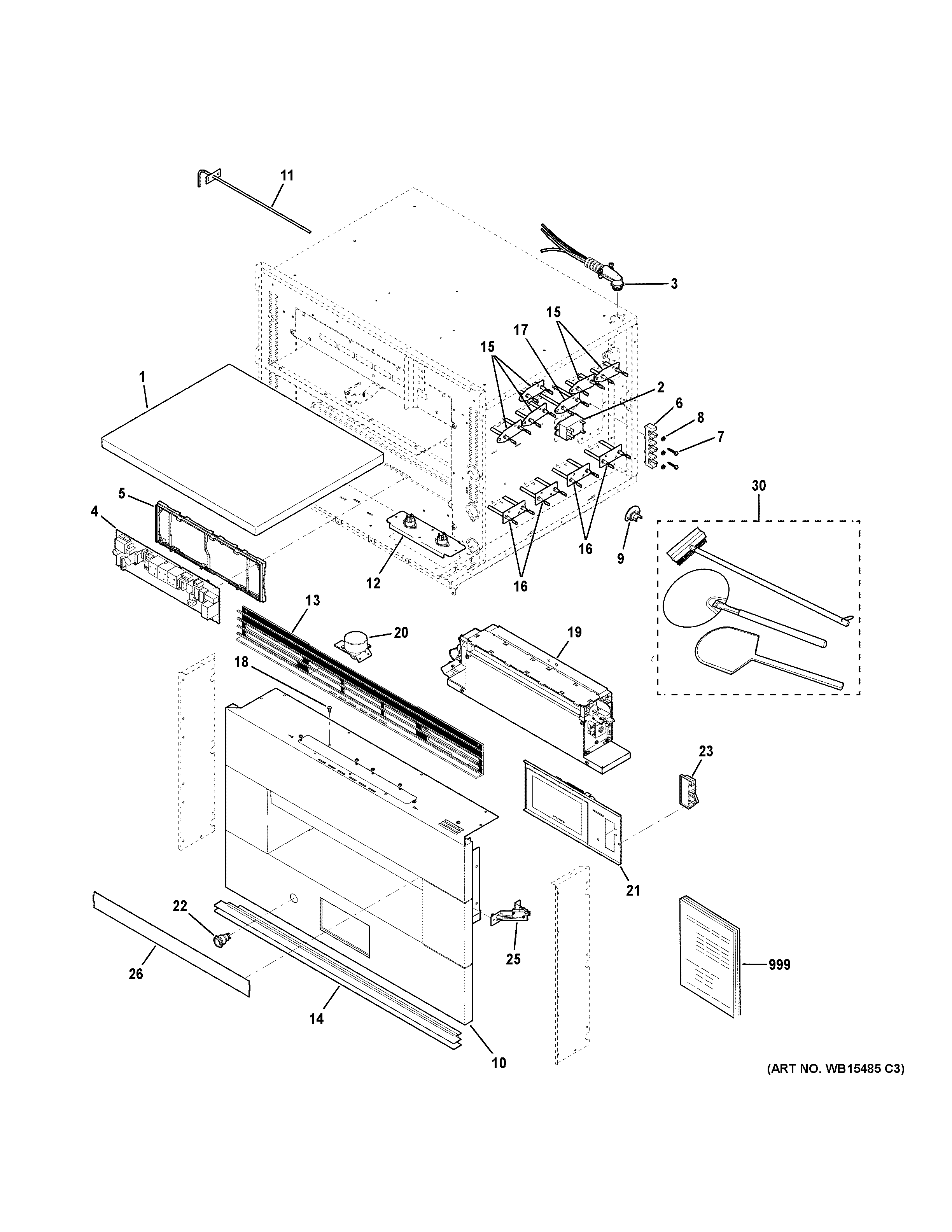

ZEP30FR1SS OVEN PARTS

ZEP30FR1SS OVEN PARTS

Written by

in

ZEP30FR1SS OVEN PARTS

Products

PositionProduct
1STONE
2RELAY
3CONDUIT WIRE ASM
4WB27X45807 GE Main Board
5BOARD FRAME
6WB17K10001 GE Oven Block Terminal
7WB1K5072 GE Oven Screw
8WB1X1259 GE Hex Nut
9WB27X45847 GE Cavity TCO Assembly
10KIT FRONT CONTROL ASM
11SENSOR ASM
12KIT TRIAC HEATSINK ASM
13UPPER VENT TRIM ASM
14LOWER VENT TRIM
15UPPER HEATER
16LOWER HEATER
17UPPER HEATER & PINCH CLAMP ASM
18WB01X34726 GE Screw 8-18 Ab Pnt-20
19FAN ASM
20MODULE LATCH ASM
21WB27X45806 GE Touch Screen and Control Kit
22POWER BUTTON ASM
23WIFI BOARD AND ENCLOSURE ASM
25DOOR SWITCH
26BRASS ARCH
30PIZZA OVEN ACCESSORY PACK
999PM OWNERS MANUAL
