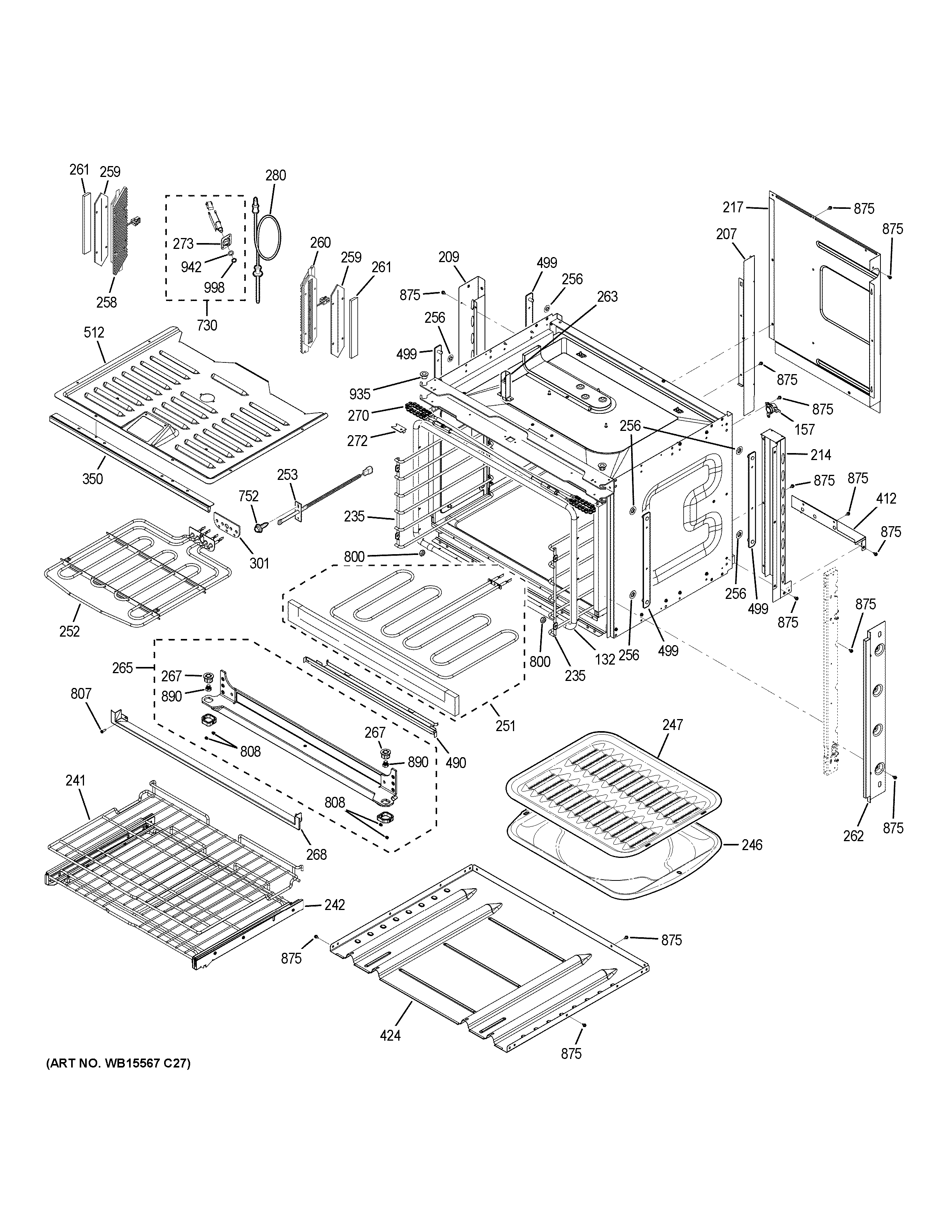

ZET1FH2SS BODY PARTS

ZET1FH2SS BODY PARTS

Written by

in

ZET1FH2SS BODY PARTS

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
157HIGH LIMIT SWITCH
207WB34T10134 GE Center Air Divider
209WB34X21910 GE Oven Rear Channel LT
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
235WB48X21766 GE Oven Guide Rack Left
235WB48X21765 GE Oven Right Guide Rack
241WB48X23857 GE Oven Flat Rack
242WB48X23580 GE Oven Rack Slide Assembly
246BROILER PAN
247WB48X31884 GE Broiler Pan Grid
251WB44X21667 GE Oven Hidden Bake Element Kit
252BROIL ELEMENT
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
258WB27X23582 GE LED Board Assembly
259WB35X23584 GE LED Insulation
260WB27X23581 GE LED Board Assembly
261WB34X23583 GE Oven LED Glass
262STAINLESS TRIM VERT SIDE (SWO)
263SPRING ROLLER ASM
265SUPPORT AND RECEIVER ASM
267RECEIVER PIVOT ASM
268WB07X23779 GE Oven Bottom Trim Assembly
270WB10X24542 GE Oven Chain Assembly Kit
272RETAINER BEARING
273PROBE COVER
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
412WB34T10151 GE Air Duct Lower Right Cover
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
499WB34X30789 GE Cavity Brace Assembly
512WB37T10024 GE Oven Top Plate
730WB18X23585 GE Oven Meat Probe and Harness
752WB01X21742 GE Screw
800WB01X21270 GE Oven Rack Guide Nut
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
808WB01X23771 GE Oven Recessed Screw 1/4 X 32
875WH2X930 GE Screw
890SCR 3/8-24 MCH SK 1/4
935BEARING BRONZE
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
