ZET1PH1SS CONTROL PANEL

ZET1PH1SS CONTROL PANEL

Written by

in

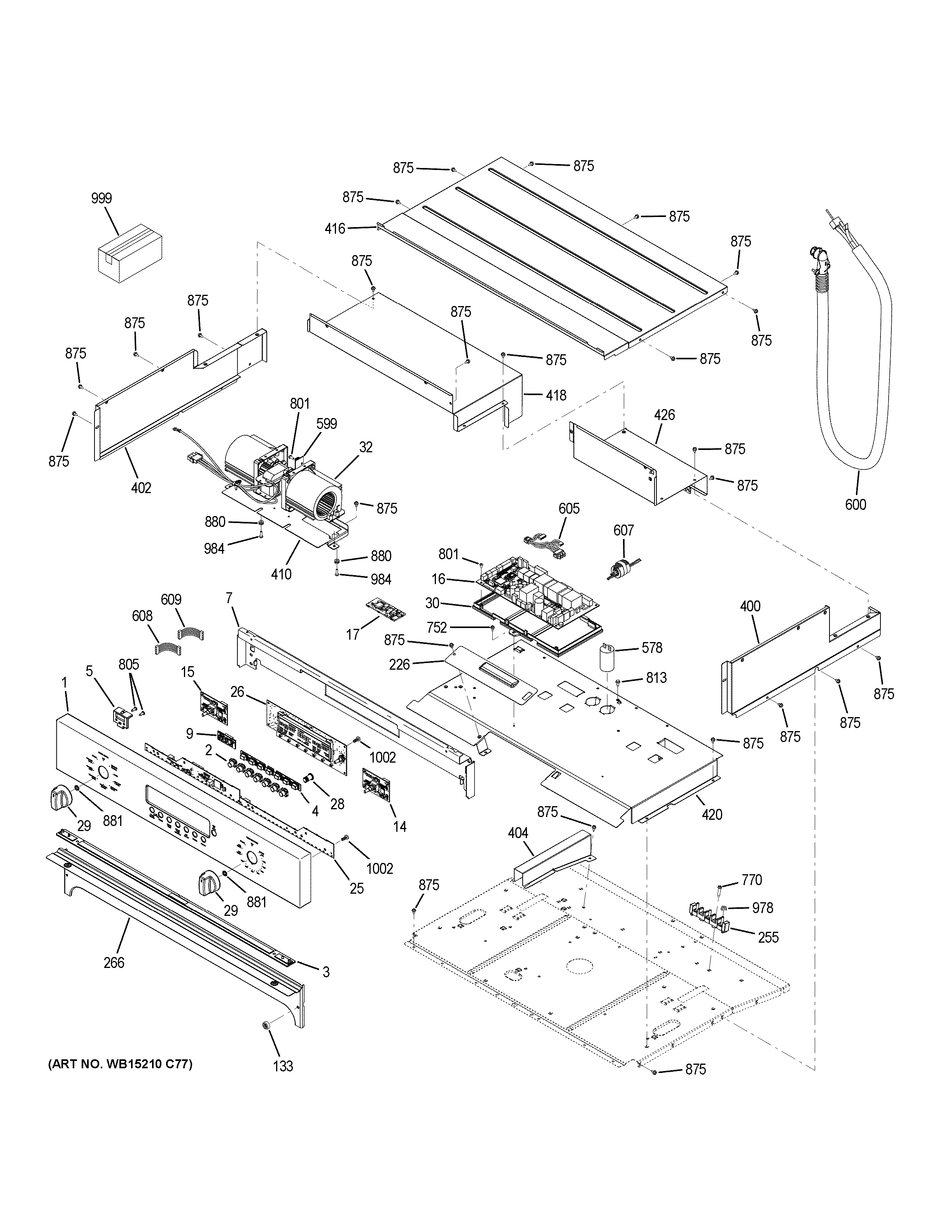

ZET1PH1SS CONTROL PANEL

Products

PositionProduct
1LABEL WIRE DIAGRAM
1WB56X23547 GE Control Panel Assembly
2WB03X23553 GE Control Panel Button
3WB34X25767 GE Diffuser and Tape Assembly
4WB03X23555 GE Key Pad
5WB34X29268 GE Oven Control Panel Support Bracket
7WB34X29940 GE Refrigerator Control Panel Mounting Bracket
9WB27X33353 GE Wi-Fi Module Kit
14WB27X24643 GE Oven UI Knob Board
15WB27X24642 GE Oven UI Board Knob
16WB27X32430 GE Oven Machine Control Board
17WB27X23562 GE Oven LED Power Supply Board
25WB27X23548 GE Oven LED Light Board
26WB27X24647 GE Oven UI Display Board
28WB03X23556 GE Range Timer Knob
29WB03X29546 GE Knob Assembly
30FRAME BOARD RELAY
32WB26X24020 GE Range Cooling Fan
133WB02X23561 GE Door Bumper
226WB34T10161 GE Access Latch Cover
255WB17K10001 GE Oven Block Terminal
266WB07T10800 GE Oven Upper Black Vent Trim
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB34X32773 GE Rear Top Cover Kit
420DIVIDER AIR
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10578 GE Oven Optional 6 ft Conduit
600WB18X35246 GE Conduit Wire SWO
605WB18X23566 GE Main Wire Harness
607WB18X23565 GE Range Wire Harness Assembly
608HARNESS WIRE LATCH COM
609WB18T10558 GE Oven LED Jumper Wire Harness
752WB1K5200 GE Oven Screw 340531
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
805WB1K5062 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
875WH2X930 GE Screw
880WB01T10128 GE Grommet
881WB01T10099 GE Oven Nut
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999MANUAL U&C TIP SHEET
999INSTRUCTION INSTALL
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999WB02T10303 GE Cleaner Lubricant
999PM WI FI INSTRUCTIONS
999PM MANUAL MINI & WD ASM
1002WR01X10791 GE Scr 8-18 B Pnp 3/8 S Zn
