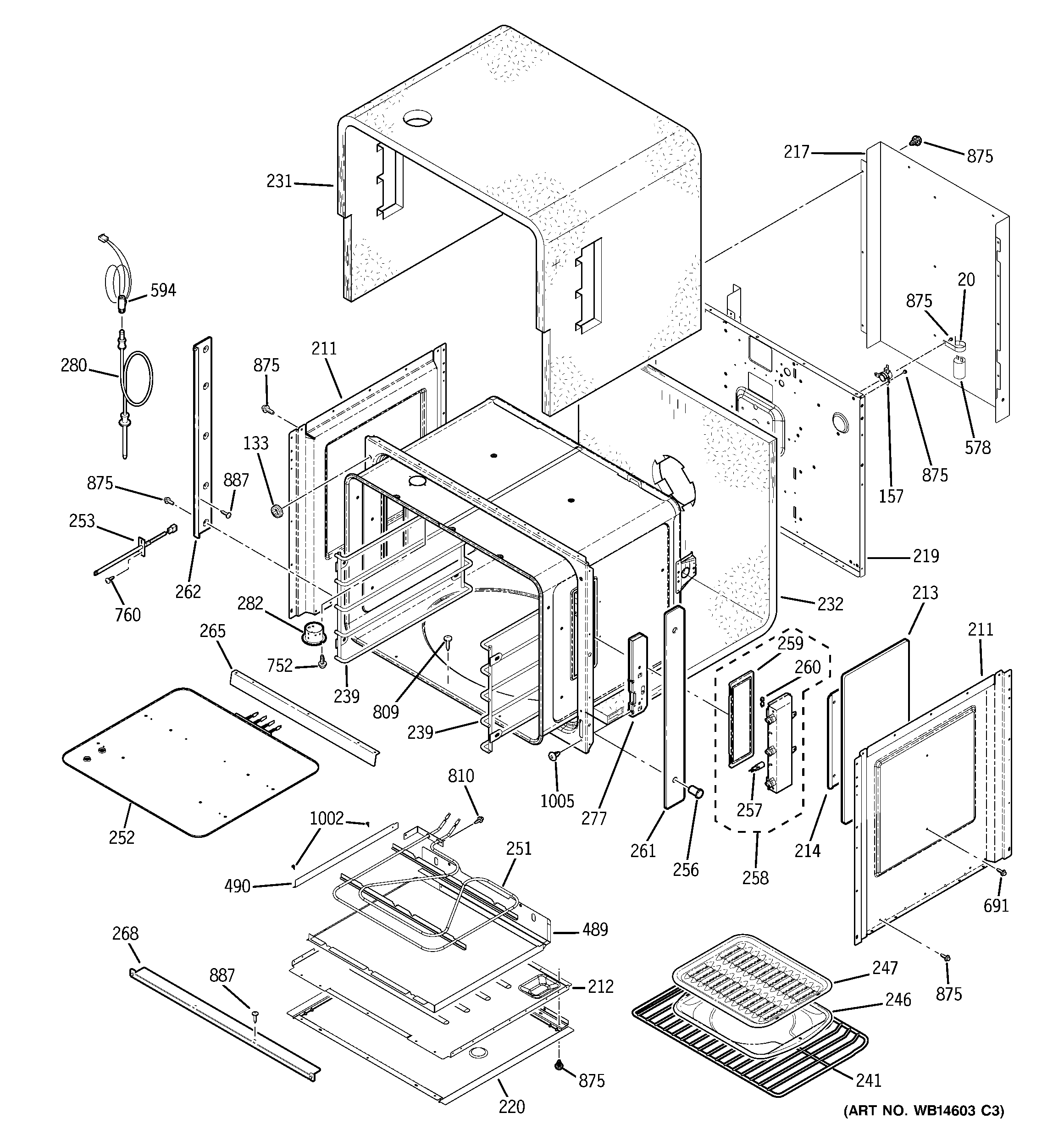

ZET1RM1SS BODY PARTS

ZET1RM1SS BODY PARTS

Written by

in

ZET1RM1SS BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
133WB01T10052 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
157WB24T10081 GE Oven High Limit Thermostat
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
213GEN WB35T10136
214WB02T10309 GE Insulation Mount Plate
217GEN WB02T10373
219GEN WB02T10388
220WB02T10502 GE Air Duct Bottom
231GEN WB35T10184
232WB35T10127 GE Oven Back & Bottom Insulation
239WB48T10041 GE Oven Rack Guide Assembly
241GEN WB28T10154
246GEN WB48T10017
247WB48T10089 GE Oven Broiler Pan XL
251WB44T10056 GE Oven Bake Element
252WB44T10057 GE Oven Broil Element
253WB23T10015 GE Oven Sensor Probe
256WB01T10107 GE Oven Bolt Retainer
257WB25T10064 GE Oven Halogen Lamp 20W
258WB25T10061 GE Oven Halogen Lamp Assembly
258WB25T10062 GE Oven Halogen Lamp Assembly
259WB25T10063 GE Oven Crystal Lamp
260WB02T10297 GE Glass Retainer Clip
261GEN WB07T10538
262WB07T10641 GE Washer Right Vertical Side Trim Assembly
262GEN WB07T10642
265WB02T10505 GE Range Air Divider
268GEN WB07T10615
277WB10T10117 GE Oven Hinge Receiver
280WB20T10023 GE Oven Heat Probe
282WB28T10215 GE Oven Vent Tube Assembly
489GEN WB49T10012
490GEN WB49T10013
578WB27T10662 GE Oven Capacitor
594WB18T10377 GE Oven Meat Probe Harness
691WB1K5162 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
