ZET1RM3SS CONTROL PANEL

ZET1RM3SS CONTROL PANEL

Written by

in

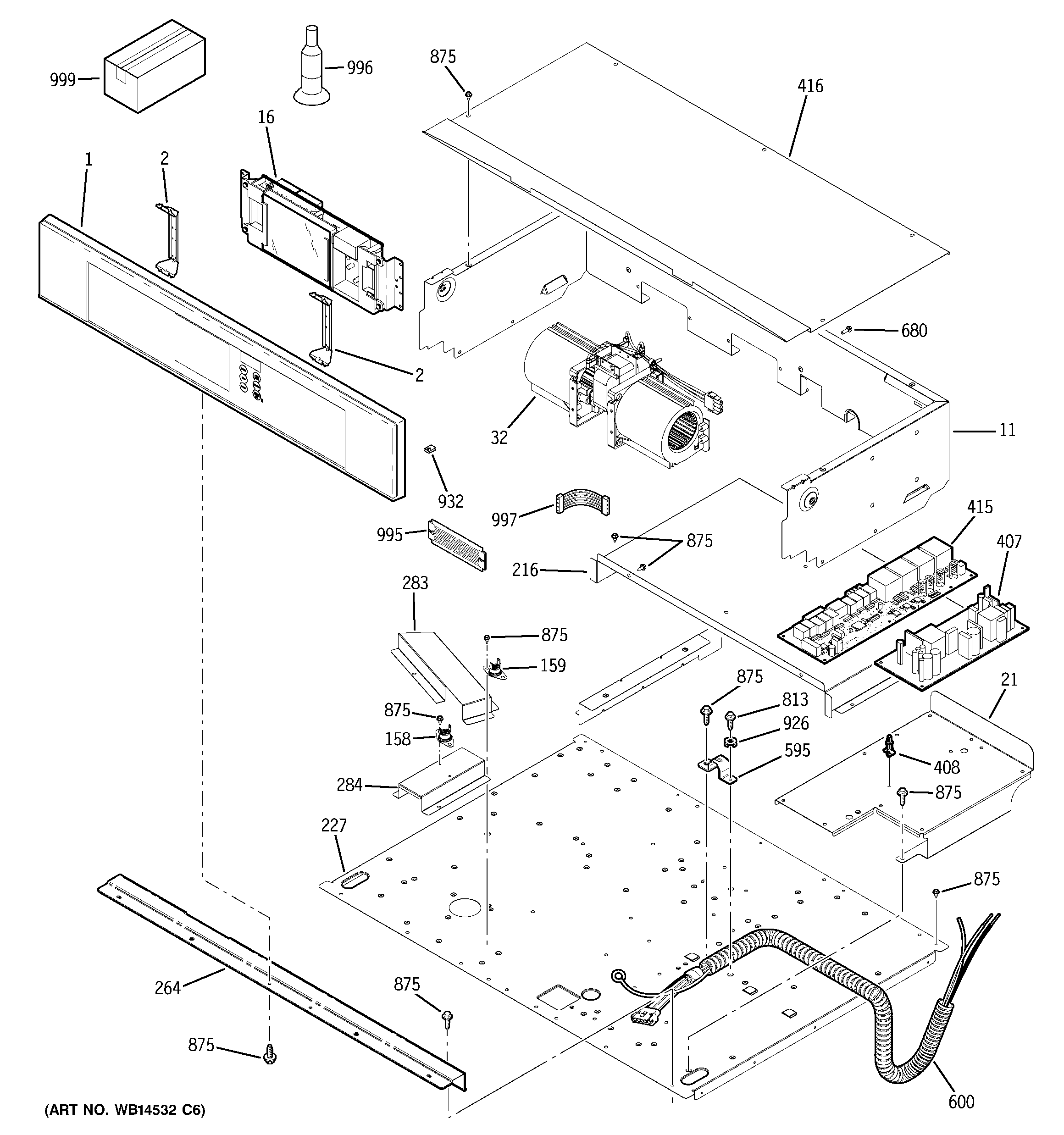

ZET1RM3SS CONTROL PANEL

Products

PositionProduct
1GEN WB27T11000
2GEN WB02T10506
11GEN WB26T10047
16GEN WB27T11264
21GEN WB02T10400
32WB26X31059 GE Oven Blower Fan
158WB24T10127 GE Oven Bimetal Limit Switch
159WB24T10061 GE Oven Clean Temperature Control
216GEN WB02T10374
227GEN WB02T10389
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
407GEN WB27T11037
408WB02T10207 GE PCB Standoff
415WB27T11060 GE Oven Relay Board Assembly
416WB02T10565 GE Fan Housing Cover
595WB2K5126 GE Oven Condenser Clamp
600WB18T10444 GE Conduit Wire Assembly 52"
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
926GROUND WASHER
932WB1K5209 GE Oven Clip
995HARNESS LOGIC/POWER BRD
996WB02T10303 GE Cleaner Lubricant
997GEN WB18T10417
999INSTR INSTALL OVN DOOR
999GEN 31-10649
999GEN 31-14824
999GEN 49-80443
