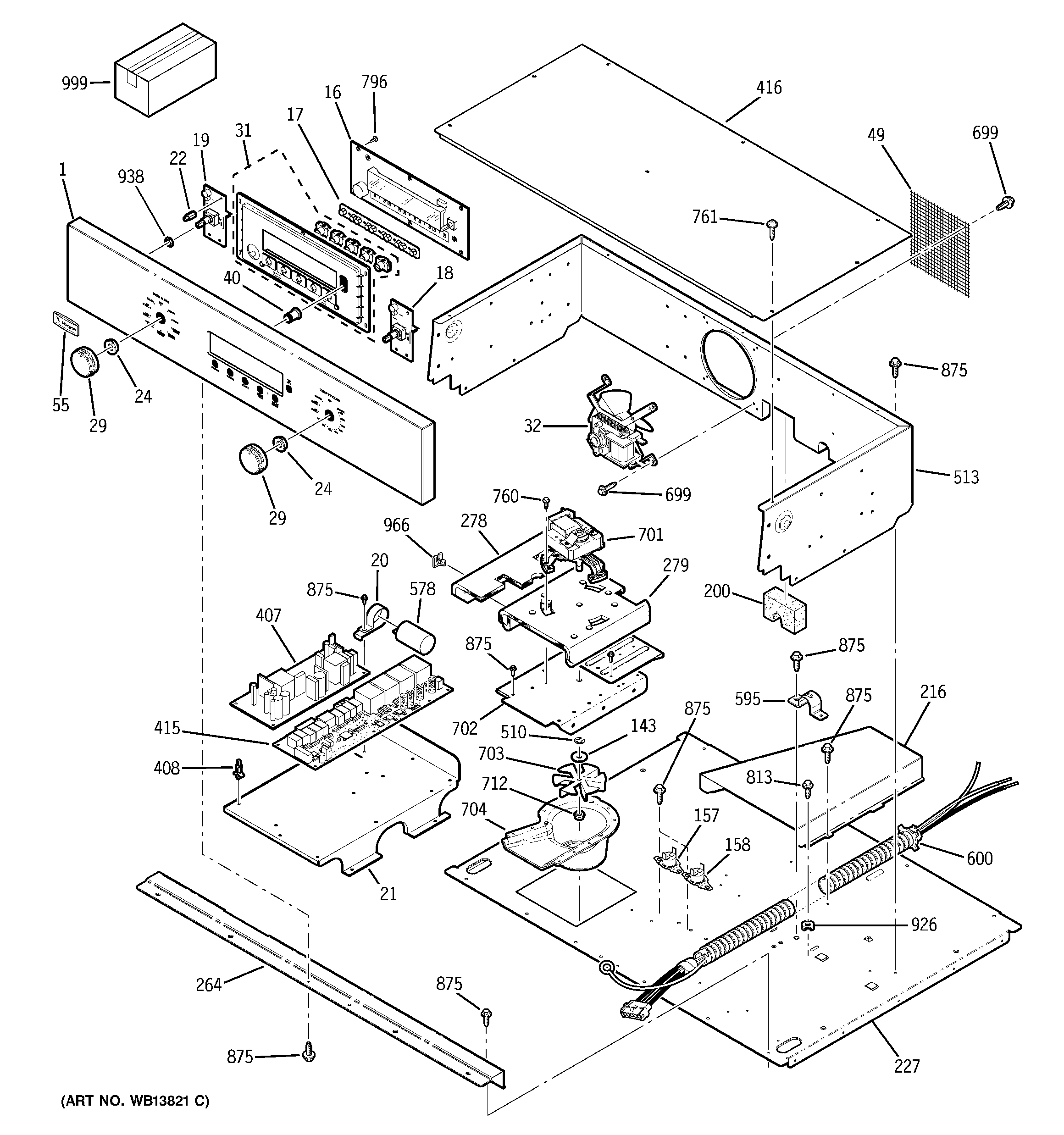

ZET1SL1SS CONTROL PANEL

ZET1SL1SS CONTROL PANEL

Written by

in

ZET1SL1SS CONTROL PANEL

Products

PositionProduct
1WB36T10925 GE Oven Control Panel Assembly 30 MGM
16GEN WB27T10819
17GEN WB27T10823
18GEN WB24T10129
19GEN WB24T10128
20WB02T10194 GE Capacitor Bracket
21GEN WB02T10296
22WB02T10295 GE Oven Standoff
24GEN WB02T10305
29GEN WB03T10247
31GEN WB03T10249
32GEN WB26T10035
40WB03T10248 GE Oven Timer Knob (Stainless Steel)
49WB34T10091 GE Oven Fan Screen
55WB02X10833 GE Oven Monogram Badge Small
143WB1K5117 GE Oven Washer
157WB24T10082 GE Oven High Limit Upper Switch
158GEN WB24T10131
200GEN WB02T10167
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10290
264GEN WB07T10515
278GEN WB35T10132
279GEN WB35T10131
407GEN WB27T10822
408WB02T10207 GE PCB Standoff
415BOARD ASM RELAY
416GEN WB34T10119
510GEN WB01T10078
513GEN WB26T10014
578WB27T10662 GE Oven Capacitor
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10376
699WB1M1 GE Oven Screw
701GEN WB26T10030
702GEN WB02T10291
703GEN WB02T10213
704GEN WB02T10214
712GEN WB01T10081
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
796WB1K5116 GE Oven Screw
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
926GROUND WASHER
938WB01T10099 GE Oven Nut
966WB2X9573 GE Oven Clip
999GEN 31-10551
999WB02T10303 GE Cleaner Lubricant
999GEN 31-10514
999WB18T10377 GE Oven Meat Probe Harness
999GEN 31-14387
999GEN 49-80325
999GEN WB18T10378
999GEN 31-10633
