ZET1SM1SS CONTROL PANEL

ZET1SM1SS CONTROL PANEL

Written by

in

ZET1SM1SS CONTROL PANEL

Products

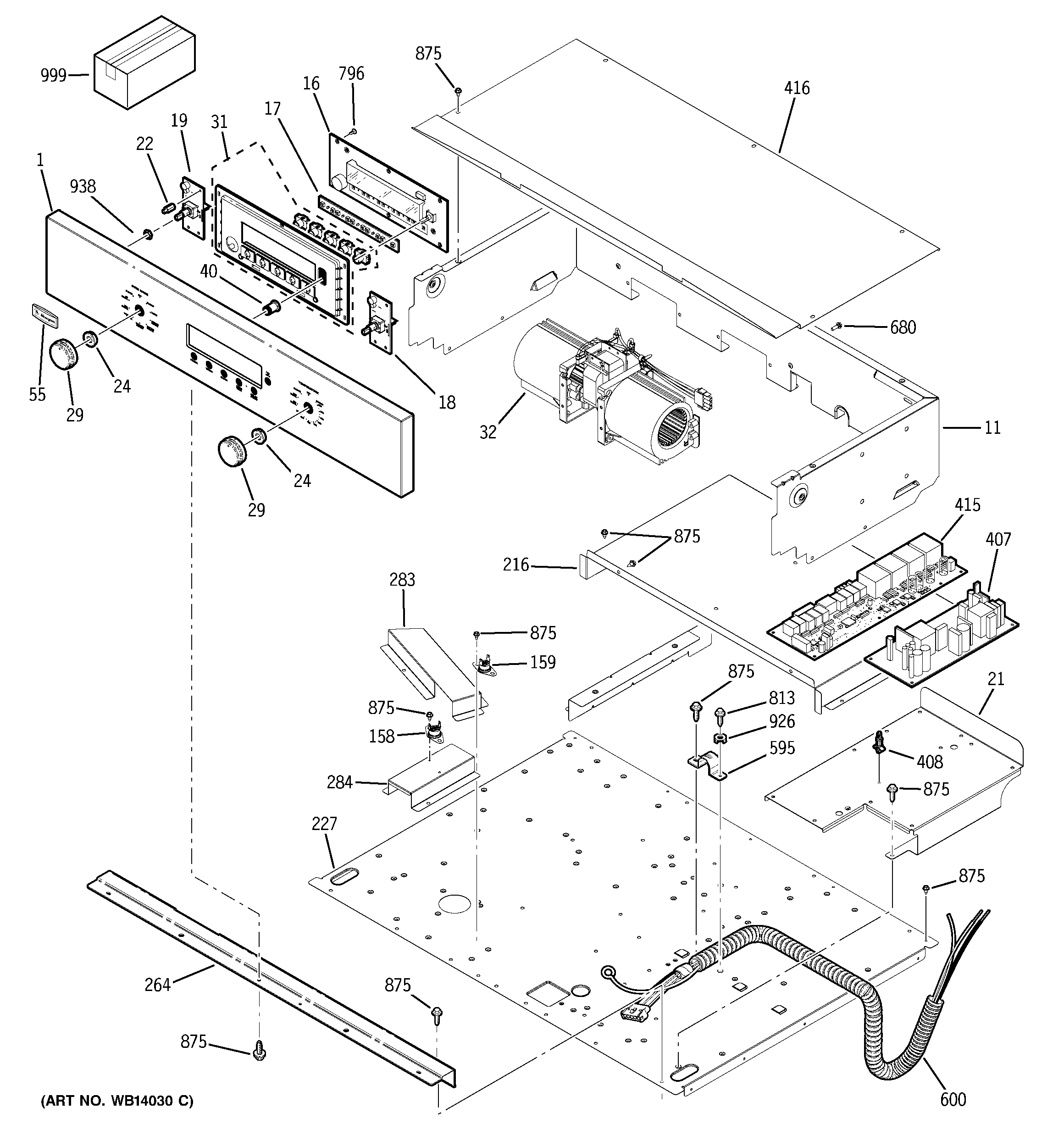

PositionProduct
1WB36T10925 GE Oven Control Panel Assembly 30 MGM
11GEN WB26T10047
16WB27T11416 GE Oven Display Board Assembly
17GEN WB27T10823
18GEN WB24T10129
19GEN WB24T10128
21GEN WB02T10400
22WB02T10295 GE Oven Standoff
24GEN WB02T10305
29GEN WB03T10247
31GEN WB03T10249
32WB26X10264 GE Oven Fan Kit
40WB03T10248 GE Oven Timer Knob (Stainless Steel)
55WB02X10833 GE Oven Monogram Badge Small
158WB24T10127 GE Oven Bimetal Limit Switch
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227GEN WB02T10389
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
407GEN WB27T11037
408WB02T10207 GE PCB Standoff
415BOARD ASM RELAY
416GEN WB02T10396
595WB2K5126 GE Oven Condenser Clamp
600OPT CONDUIT WIRE ASM 72"
680WR1X1850 GE Refrigerator Screw
796GEN WB01X1178
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
926GROUND WASHER
938WB01T10099 GE Oven Nut
999GEN 31-10649
999WB02T10303 GE Cleaner Lubricant
999INSTR INSTALL OVN DOOR
999GEN 31-14547
999GEN 49-80434
