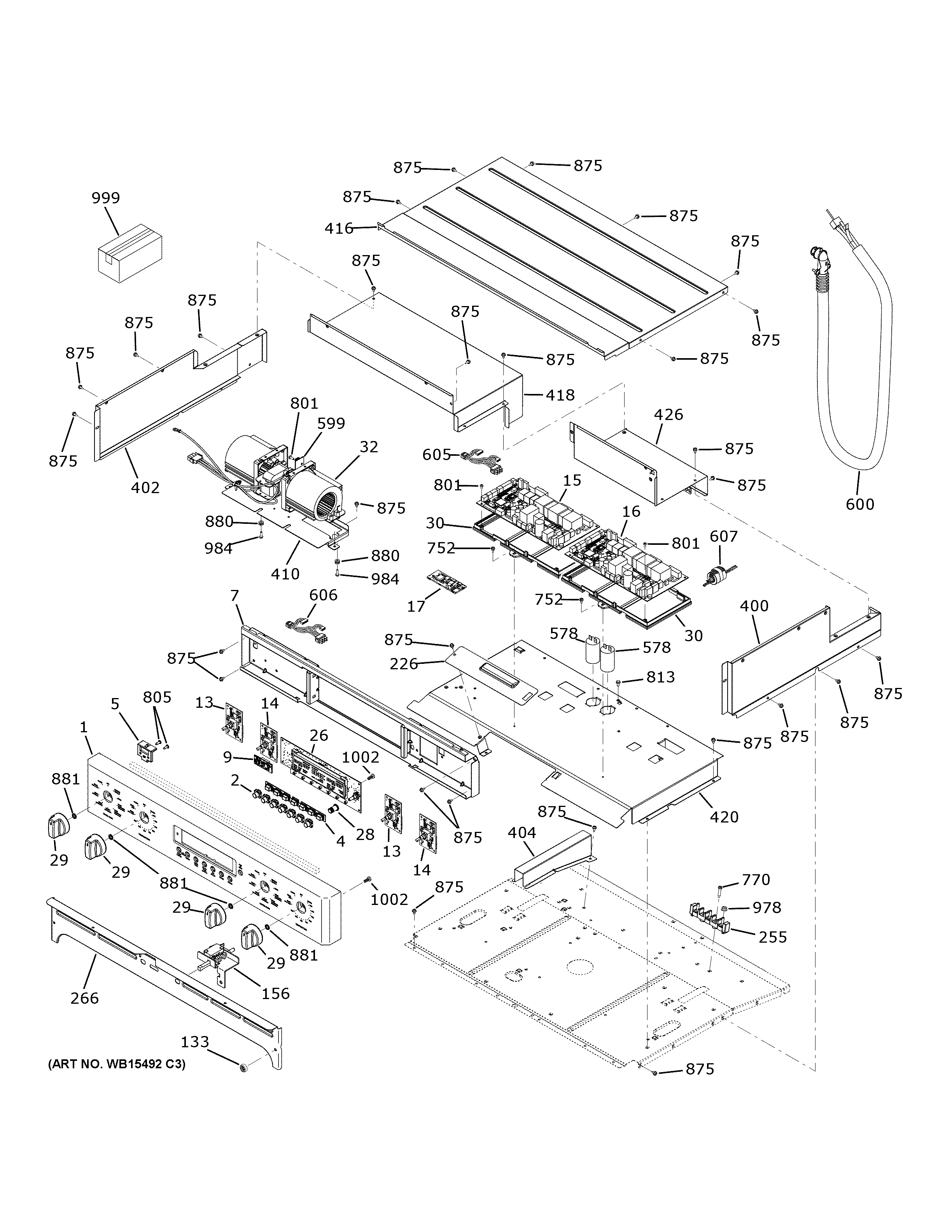

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB56X28525 GE Oven Control Panel and Frame Assembly |
| 2 | WB03X23553 GE Control Panel Button |
| 4 | WB03X23555 GE Key Pad |
| 5 | WB34X29268 GE Oven Control Panel Support Bracket |
| 7 | WB34X28389 GE Oven Bracket Control Panel Mounting |
| 9 | WB27X31514 GE Oven WiFi Module Kit |
| 13 | WB27X24643 GE Oven UI Knob Board |
| 14 | WB27X24642 GE Oven UI Board Knob |
| 15 | WB27X32425 GE Oven Machine Control Board |
| 16 | WB27X32429 GE Oven Control Board Machine |
| 17 | WB27X23562 GE Oven LED Power Supply Board |
| 26 | WB27X24647 GE Oven UI Display Board |
| 28 | WB03X23556 GE Range Timer Knob |
| 29 | WB03X29536 GE Stainless Steel Knob Assembly |
| 30 | FRAME BOARD RELAY |
| 32 | WB26X24020 GE Range Cooling Fan |
| 133 | WB03T10341 GE Oven Door Bumper |
| 156 | WB24X23760 GE Oven Switch Plate Assembly |
| 226 | WB34T10161 GE Access Latch Cover |
| 255 | WB17K10001 GE Oven Block Terminal |
| 266 | TRIM VENT UPR |
| 400 | COVER TOP RIGHT EDGE |
| 402 | WB44T10126 GE Oven Top Left Edge Cover |
| 404 | WB34T10150 GE Upper Air Vent Channel |
| 410 | WB37T10026 GE Oven Upper Fan Mount Bracket |
| 416 | WB34X28390 GE Oven Front Cover Housing |
| 418 | WB34X32773 GE Rear Top Cover Kit |
| 420 | DIVIDER AIR |
| 426 | WB35T10273 GE Oven Rear Wire Cover |
| 578 | WB27T10662 GE Oven Capacitor |
| 599 | WB27T11463 GE Oven Fan Sensor Board |
| 600 | WB18T10580 GE Oven 6 FT Optional Conduit |
| 600 | WB18T10573 GE Oven Wire Assembly Conduit |
| 605 | WB18X23611 GE Main Wire Harness |
| 606 | WB18X31064 GE Latch Wire Harness |
| 606 | WB18X23756 GE Wire Harness Latch Assembly |
| 607 | WB18X23610 GE Wire Harness Assembly |
| 770 | WB1K5072 GE Oven Screw |
| 801 | WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2" |
| 805 | WB1K5062 GE Oven Screw |
| 813 | WS02X10087 GE Screws 10-32 GX HXW 7/16 S |
| 875 | WH2X930 GE Screw |
| 880 | WB01T10128 GE Grommet |
| 881 | WB01T10099 GE Oven Nut |
| 978 | WB1X1259 GE Hex Nut |
| 984 | WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN |
| 999 | MANUAL U&C TIP SHEET |
| 999 | PM OWNERS MANUAL |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
| 999 | WB02T10303 GE Cleaner Lubricant |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM WI FI INSTRUCTIONS |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM INSTALL INSTRUCTIONS |
| 1002 | WR01X10791 GE Scr 8-18 B Pnp 3/8 S Zn |
