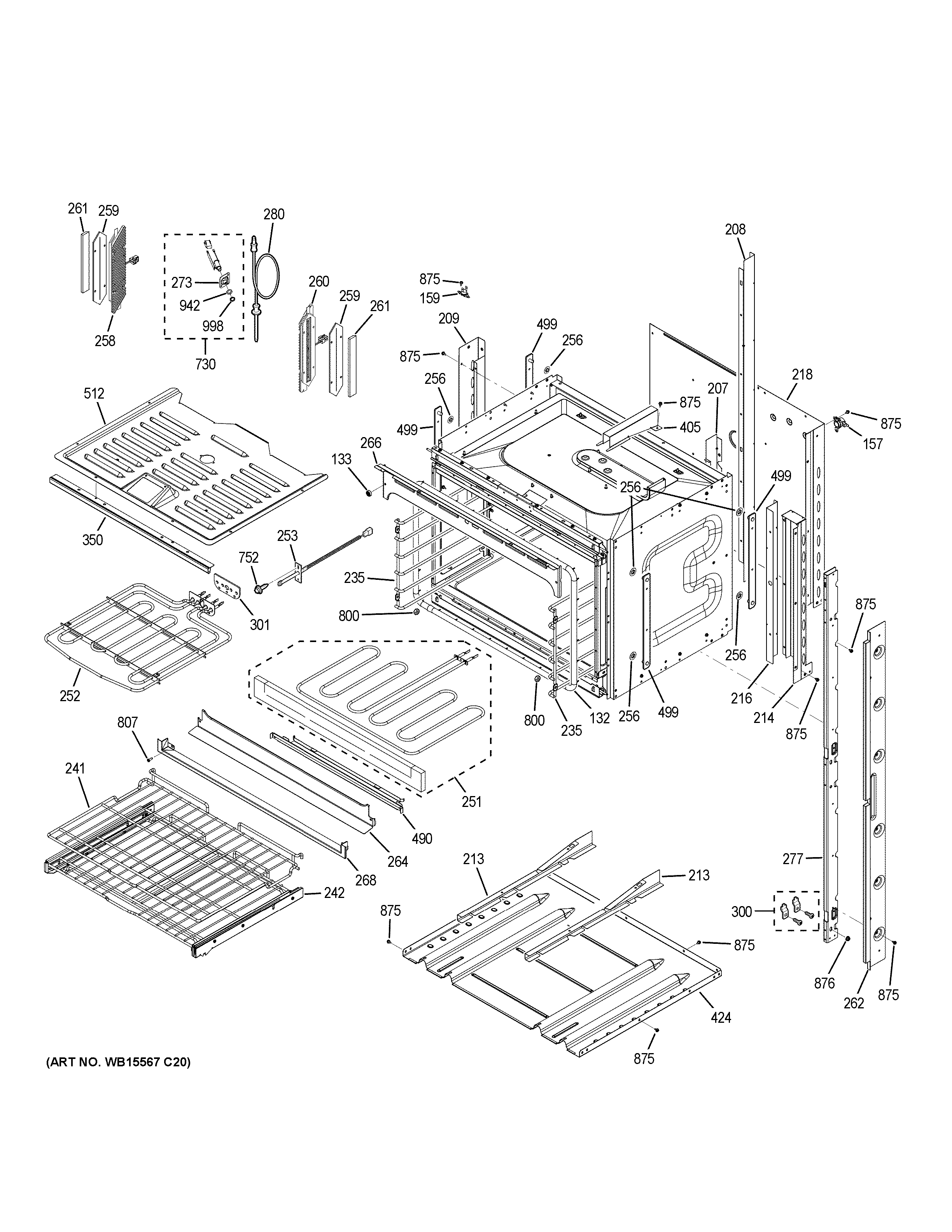

ZET2FL2SS LOWER OVEN

ZET2FL2SS LOWER OVEN

Written by

in

ZET2FL2SS LOWER OVEN

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
159WB24X46907 GE High Limit Switch
207DIVIDER AIR CENTER
208WB34T10140 GE Oven Double Divider Air
209WB34X21910 GE Oven Rear Channel LT
213WB34T10163 GE Air Divider Bottom
214WB55X10971 GE Rear Channel
216DIVIDER AIR DUCT RIGHT
218DUCT LOWER REAR DUCT
235WB48X21765 GE Oven Right Guide Rack
235WB48X21766 GE Oven Guide Rack Left
241WB48X23857 GE Oven Flat Rack
242WB48X23580 GE Oven Rack Slide Assembly
251WB44X21667 GE Oven Hidden Bake Element Kit
252BROIL ELEMENT
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
258WB27X23582 GE LED Board Assembly
259WB35X23584 GE LED Insulation
260WB27X23581 GE LED Board Assembly
261WB34X23583 GE Oven LED Glass
262TRIM VERTICAL SIDE SS
264WB07X28526 GE Lower Vent Trim
266TRIM VENT UPR
268WB07T10786 GE Oven Bottom Cabinet Trim
273GEN WB02X8309
277WB07X28522 GE Right Vertical Brace Assembly
277VERTICAL BRACE ASM LT
280WB20T10024 GE Oven Thermistor Probe
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
405WB34T10160 GE Lower Air Channel
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
499WB34X30789 GE Cavity Brace Assembly
512WB37T10024 GE Oven Top Plate
730WB18X23585 GE Oven Meat Probe and Harness
752WB1K5062 GE Oven Screw
800WB01X21270 GE Oven Rack Guide Nut
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
875WH2X930 GE Screw
876LOCK NUT
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
