ZET2RM1SS CONTROL PANEL

ZET2RM1SS CONTROL PANEL

Written by

in

ZET2RM1SS CONTROL PANEL

Products

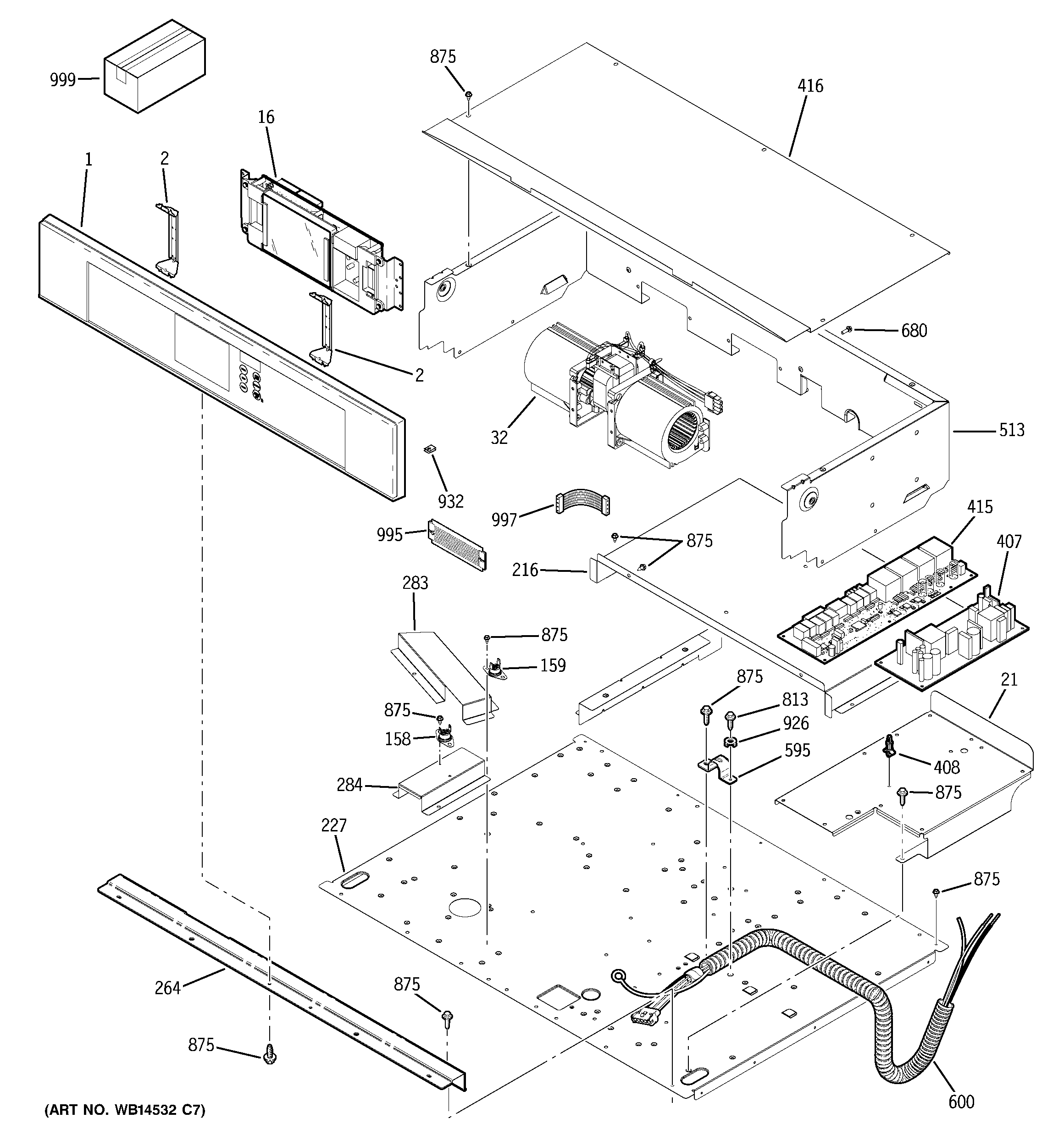

PositionProduct
1GEN WB27T11001
2GEN WB02T10390
16HOUSING LCD ASM
21GEN WB02T10400
32WB26X10264 GE Oven Fan Kit
158WB24T10061 GE Oven Clean Temperature Control
159WB24T10127 GE Oven Bimetal Limit Switch
216GEN WB02T10374
227GEN WB02T10389
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
407GEN WB27T11037
408WB02T10207 GE PCB Standoff
415WB27T11060 GE Oven Relay Board Assembly
416GEN WB02T10396
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10399 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
932WB1K5209 GE Oven Clip
995GEN WB18T10541
997GEN WB18T10417
999GEN 31-10649
999GEN 49-80443
999WB02T10303 GE Cleaner Lubricant
999INSTR INSTALL OVN DOOR
999GEN 31-14637
