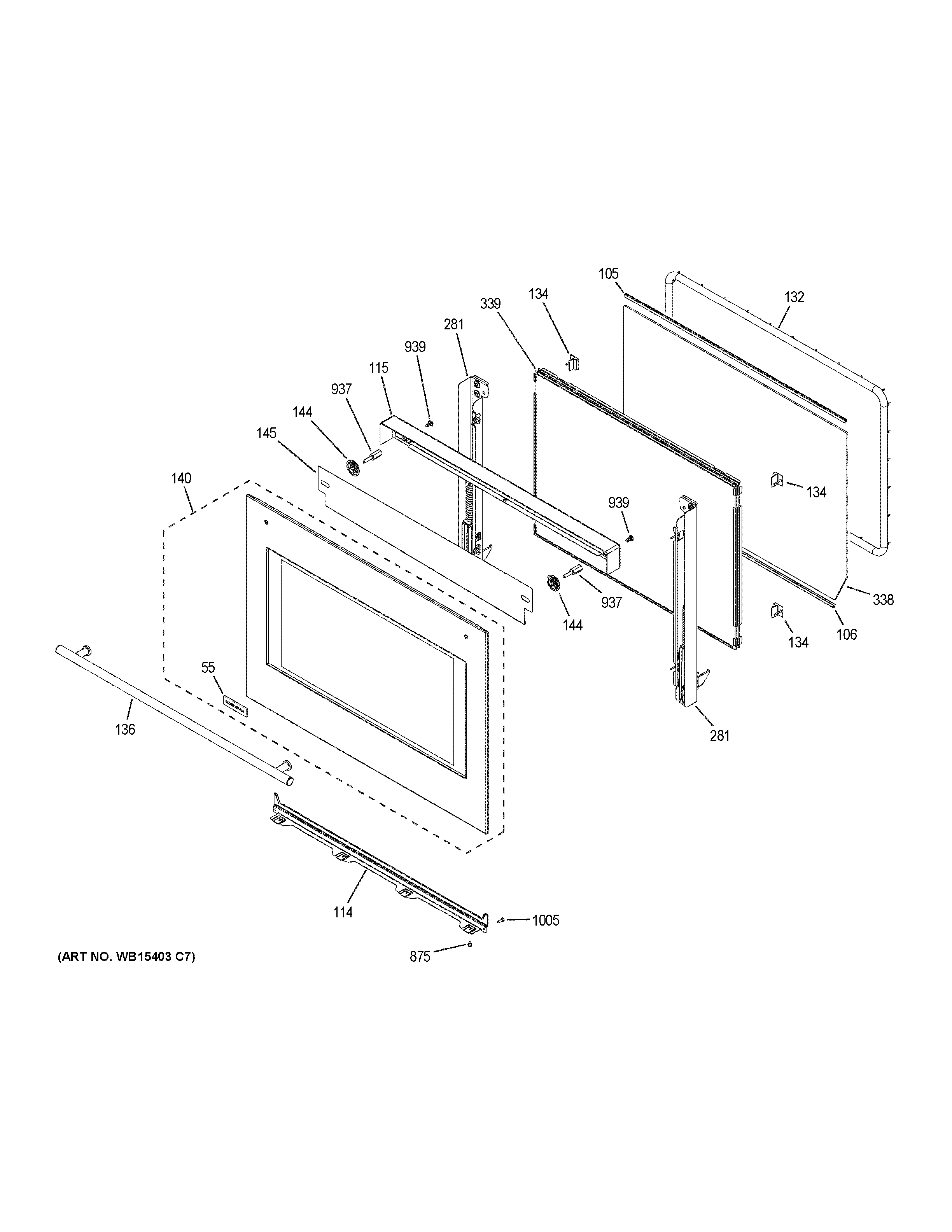

ZET2SH1SS UPPER DOOR

ZET2SH1SS UPPER DOOR

Written by

in

ZET2SH1SS UPPER DOOR

Products

PositionProduct
55WR04X24243 GE Refrigerator Badge Monogram Small No
105WB02X23468 GE Range Top Channel Pad
106WB02X23467 GE Range Bottom Channel Pad
114WB07X23465 GE Oven Lower Door Trim Cover (Black)
115WB07X23470 GE Oven Upper Door Vent Trim
132WB35X32825 GE Oven Door Gasket
134WB02X23469 GE Range Inner Glass Pad
136WB15X23627 GE Oven Handle Assembly 30" Stainless Steel
140OUTER DOOR ASM
144WB02T10524 GE Oven Door Handle Spacer
145WB34X23641 GE Outer Door Glass Deflector
281WB10X23628 GE Oven Right Hinge Support Assembly
281WB10X30802 GE Hinge Support Assembly Left
338WB56X23461 GE Oven Door Inner Glass
339WB56X23466 GE Oven Divider Inner Door Glass Assembly
875WH2X930 GE Screw
937WB01X23642 GE Spacer Reinforcement Assembly
939WB01X23620 GE Screw
1005WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
