ZET2SM1SS LOWER OVEN

ZET2SM1SS LOWER OVEN

Written by

in

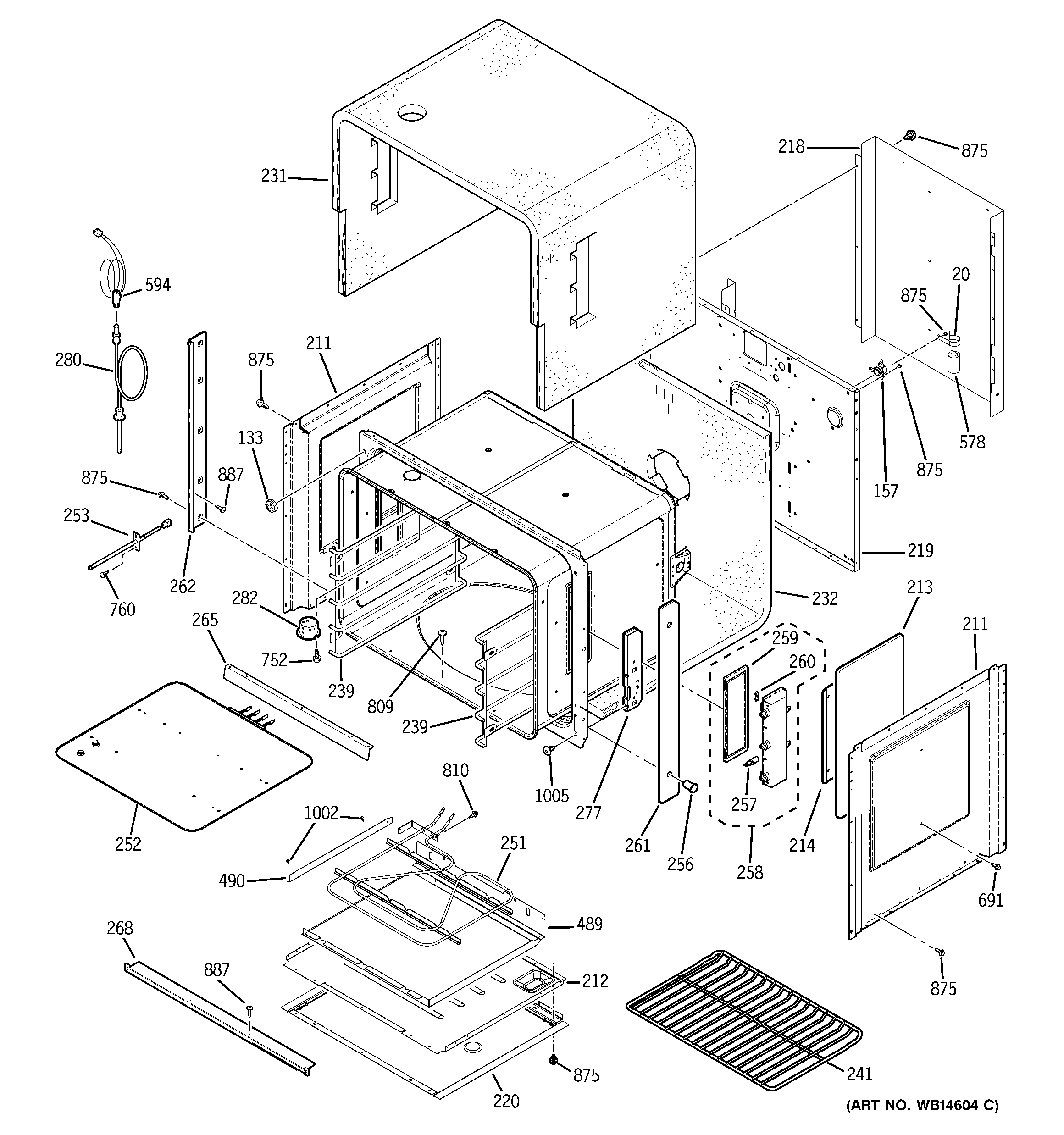

ZET2SM1SS LOWER OVEN

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
133WB01T10022 GE Oven Door Bumper
157WB24T10081 GE Oven High Limit Thermostat
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
213GEN WB35T10136
214WB02T10309 GE Insulation Mount Plate
218GEN WB02T10380
219GEN WB02T10388
220WB02T10502 GE Air Duct Bottom
231GEN WB35T10184
232WB35T10127 GE Oven Back & Bottom Insulation
239WB48T10041 GE Oven Rack Guide Assembly
241GEN WB28T10154
251WB44T10056 GE Oven Bake Element
252WB44T10057 GE Oven Broil Element
253WB23T10015 GE Oven Sensor Probe
256WB01T10107 GE Oven Bolt Retainer
257WB25T10064 GE Oven Halogen Lamp 20W
258WB25T10061 GE Oven Halogen Lamp Assembly
258WB25T10062 GE Oven Halogen Lamp Assembly
259WB25T10063 GE Oven Crystal Lamp
260WB02T10297 GE Glass Retainer Clip
261GEN WB07T10538
262GEN WB07T10616
262GEN WB07T10617
265WB02T10458 GE Air Divider
268GEN WB07T10615
277GEN WB10T10083
277WB10T10117 GE Oven Hinge Receiver
280WB20T10023 GE Oven Heat Probe
282WB28T10216 GE Vent Tube Assembly
282WB28T10215 GE Oven Vent Tube Assembly
489GEN WB49T10012
490GEN WB49T10013
578WB27T10662 GE Oven Capacitor
594WB18T10377 GE Oven Meat Probe Harness
691WB1K5162 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
