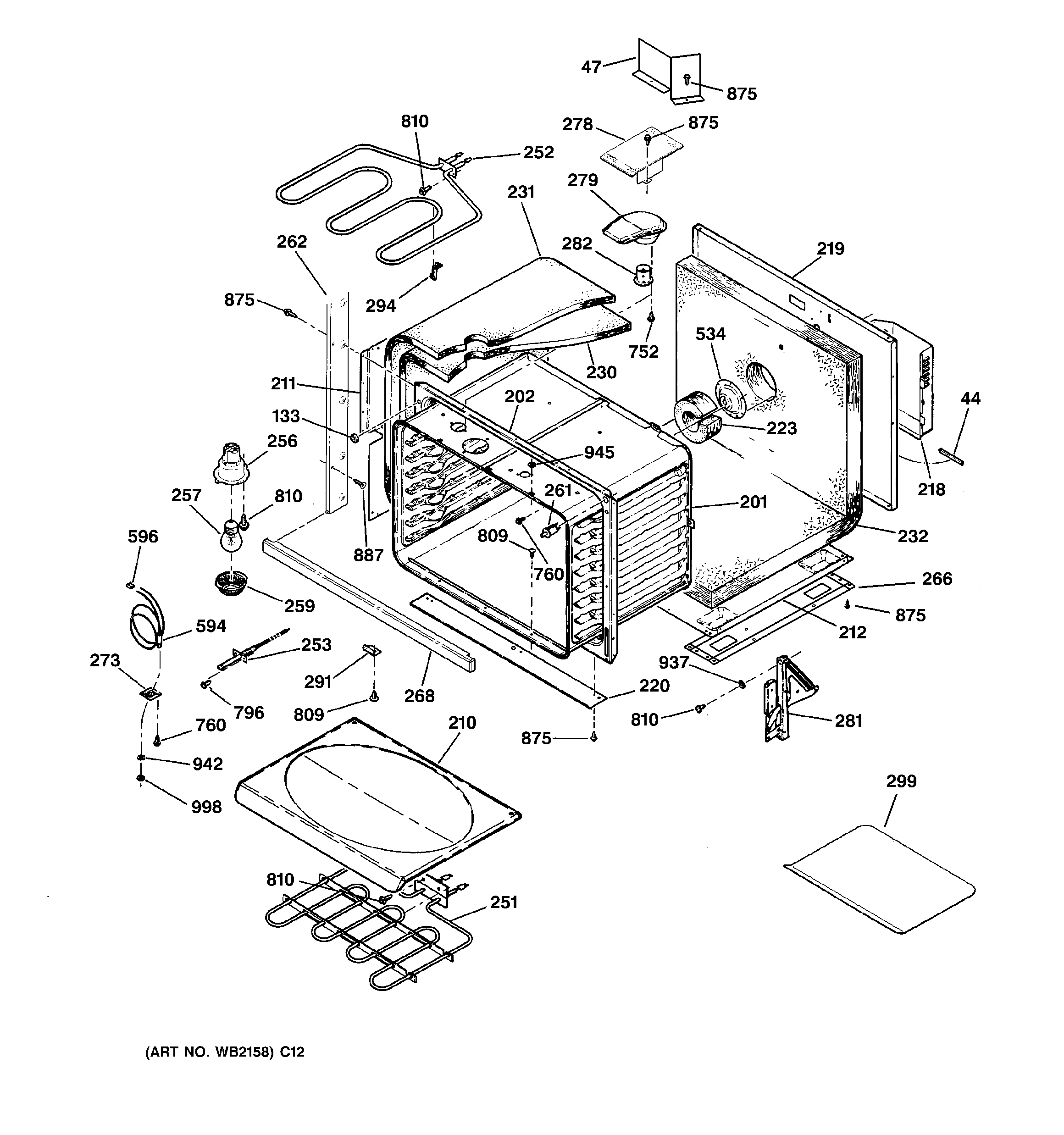

ZET757BA3BB LOWER BODY PARTS

ZET757BA3BB LOWER BODY PARTS

Written by

in

ZET757BA3BB LOWER BODY PARTS

Products

PositionProduct
44GEN WB02K5225
47GEN WB39T10002
47GEN WB39T10003
133WB01T10022 GE Oven Door Bumper
133FELT PAD
201GEN WB63T10033
202FRONT FRAME
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212GEN WB02K5305
218WIRE COVER LWR RR
219GEN WB02K5307
220BTM TRIM SHIELD
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
251WB44T10006 GE Oven Bake Element
252GEN WB44K5030
253SENSOR ASM
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5368
266WB02K10048 GE Base Rail
268GEN WB07K5467
273PROBE COVER
279GEN WB50T10039
281GEN WB14T10005
281WB14T10006 GE Oven Hinge Assembly Left
282GEN WB28K5010
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
299GEN WB06K5037
299GEN WB06K5038
534GEN WB26T10003
594GEN WB08K5012
594JACK RECEPTACLE-LOWER
596GEN WB08K5013
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
937GEN WB01X1140
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
