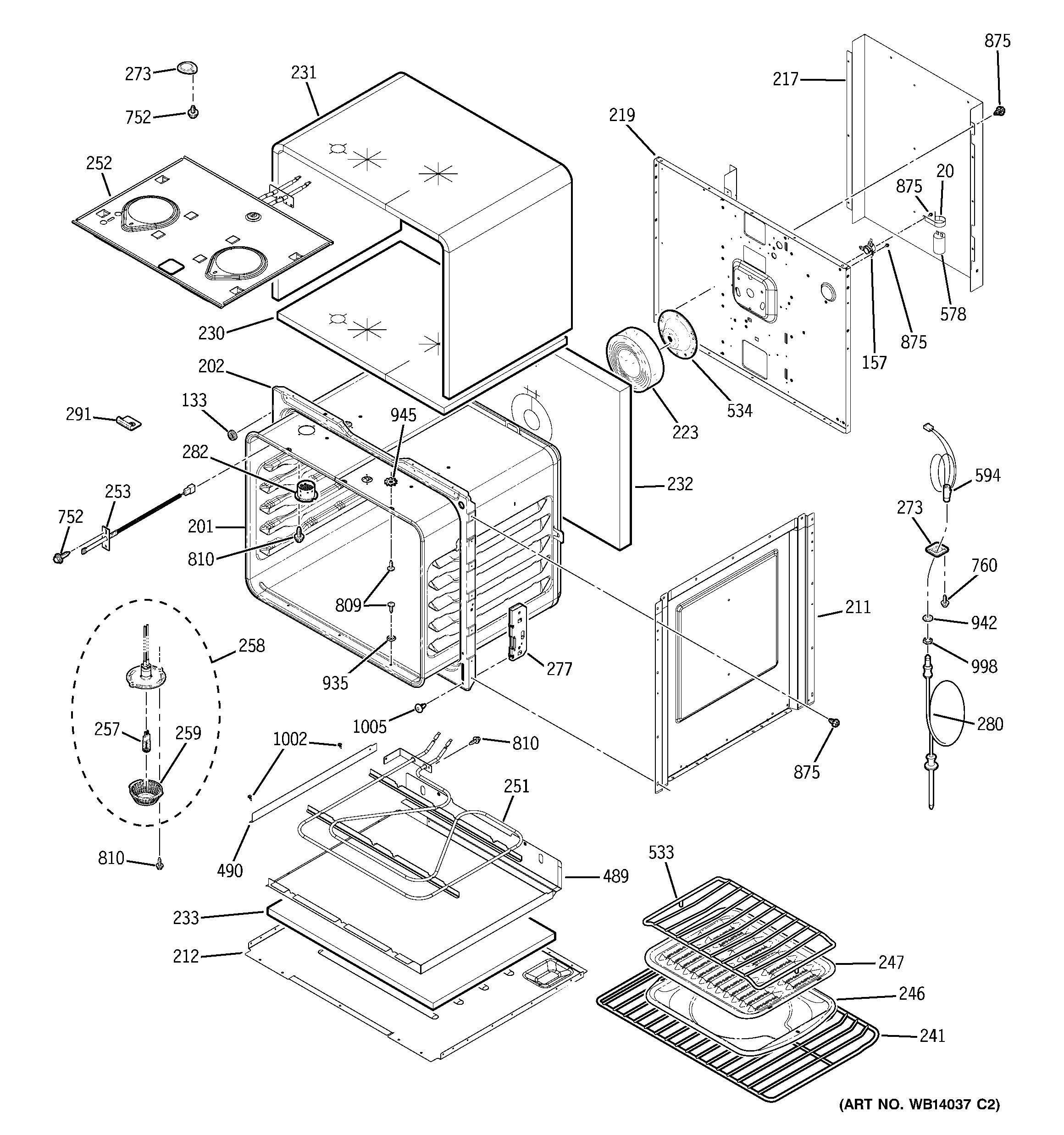

ZET958BM2BB UPPER OVEN

ZET958BM2BB UPPER OVEN

Written by

in

ZET958BM2BB UPPER OVEN

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
133WB01T10022 GE Oven Door Bumper
157WB24T10081 GE Oven High Limit Thermostat
201WRAPPER OVN CAV ASM UPR
202GEN WB02T10404
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217GEN WB02T10373
219WB02X20948 GE Oven Back Insulation Retainer
223WB35T10090 GE Oven Back & Bottom Insulation
230WB35T10183 GE Top Insulation
231WB35T10186 GE Oven Insulation
232WB35T10182 GE Insulation
233WB35T10181 GE Bottom Insulation
241WB48T10059 GE Oven Rack
246GEN WB48T10017
247WB48T10089 GE Oven Broiler Pan XL
251WB44T10105 GE Oven Element Bake Assembly (2100W)
252WB44T10106 GE Oven Broil Assembly
253WB23T10015 GE Oven Sensor Probe
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB08T10006
258GEN WB25T10025
259OV LAMP LENS LWR
273GEN WB02X8309
273PROBE COVER
277WB10T10117 GE Oven Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB28T10215 GE Oven Vent Tube Assembly
291GEN WB02X9152
489GEN WB49T10019
490WB49T10018 GE Side Reflector Pan
533WB48X5108 GE Oven Roasting Rack
534WB26T10015 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
594GEN WB18T10397
752WB1K5200 GE Oven Screw 340531
760WB1X500D GE Oven Screw Package
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
935WB1K5174 GE Oven Washer
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1002WB01T10072 GE Screw 8-32 1HW .312 Nickel
1005WB01T10008 GE Oven Screw 10-32
