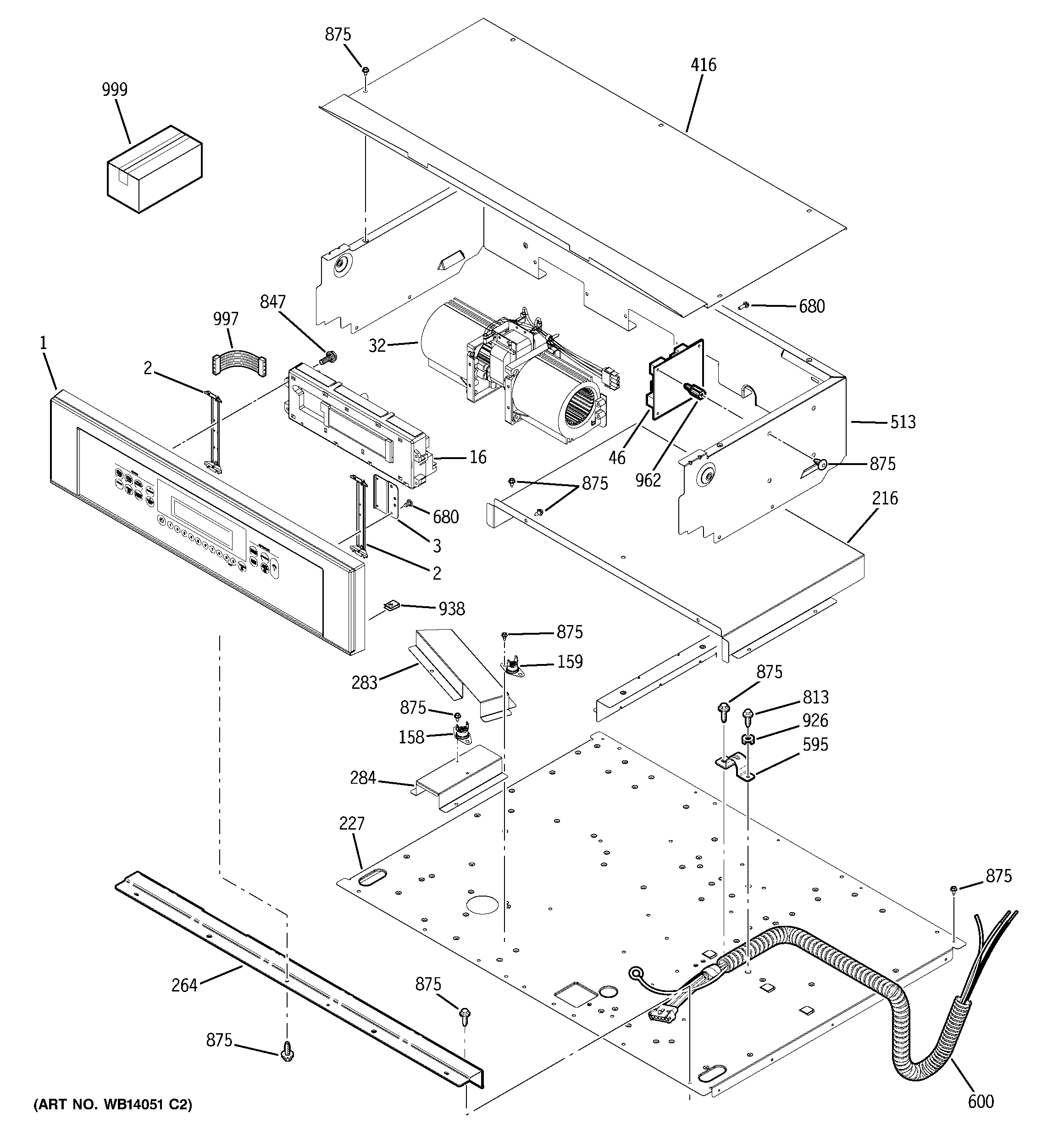

ZET958SM1SS CONTROL PANEL

ZET958SM1SS CONTROL PANEL

Written by

in

ZET958SM1SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11152
1GEN WB36T11150
1WB36T11151 GE Oven Control Panel Tape Assembly
2WB02T10398 GE Bracket Control Mounting
3GEN WB02T10399
16GEN WB27T10903
32WB26X10264 GE Oven Fan Kit
46WB27T10568 GE Oven Range Control Board
158WB24T10118 GE Oven Limit Switch Bimetal
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
416GEN WB02T10396
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10399 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
938WB1K5209 GE Oven Clip
962WB02T10160 GE Oven Circuit Board Standoff
997WB18T10371 GE Oven Ribbon Connector GLS Touch
999GEN 49-80435
999GEN 31-10645
999GEN 31-10647
999GEN 31-14748
999INSTR INSTALL OVN DOOR
