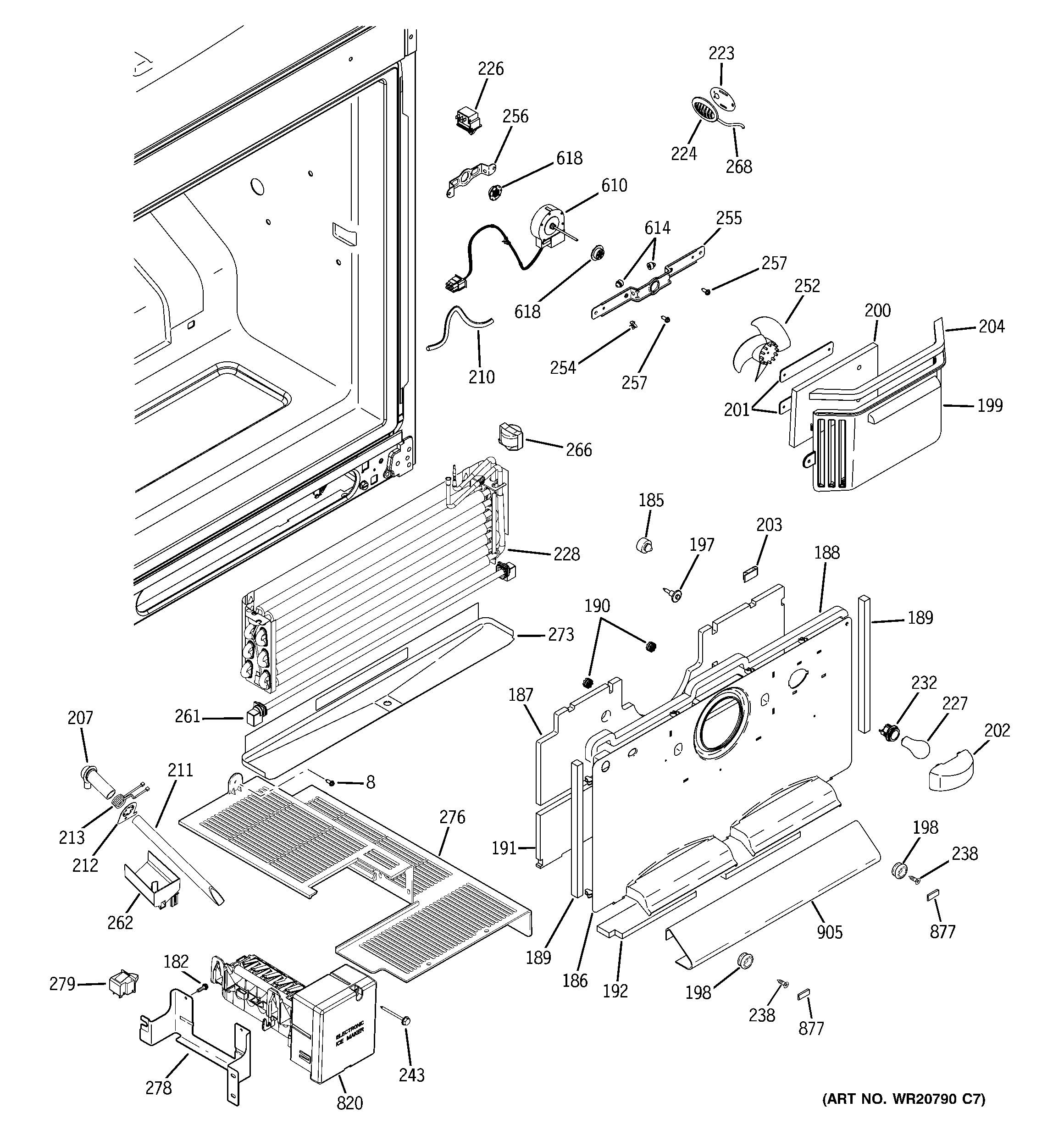

ZFGP21HZCSS FREEZER SECTION

ZFGP21HZCSS FREEZER SECTION

Written by

in

ZFGP21HZCSS FREEZER SECTION

Products

PositionProduct
8WR01X10607 GE Scraper 8-18 Ab Phr 1/2 S
182WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
185BUMPER LID
186GEN WR17X12939
187GEN WR14X10342
188WR14X10221 GE Refrigerator Foam Strip Adhesive
189WR14X10222 GE Adhesive Foam Strip
190WR02X11331 GE Refrigerator Grommet
191GEN WR17X12428
192GEN WR14X10334
197WR01X10685 GE Scraper 8-18 Assembly
198WR02X10678 GE Refrigerator Grommet
199WR17X12254 GE Refrigerator Cover Evaporator Fan
200FOAM PAD COVER EVAP
201HOLDER FOAM PAD
202SHIELD LIGHT FZ
203WR02X10522 GE Refrigerator Clamp Tube
204WR14X10223 GE Adhesive Foam Strip
207WR2X8474 GE Fill Tube
210WR14X10267 GE Insulation Harness
211GEN WR17X12258
212GEN WR17X12259
213WR51X10093 GE Refrigerator Heater Fill Tube Assembly
223WR02X10668 GE Refrigerator Shunt Sensor
224WR02X10647 GE Refrigerator Grille Sensor
226WR23X37285 GE Light Switch
227RANGE ONLY 40W 120V APPL BULB
228LOW SIDE ASM
232WR2X9391 GE Socket and Terminal
238WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
243WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
252EVAPORATOR FAN BLADE
254WR02X11607 GE Refrigerator Wire Tie
255WR17X12507 GE Evaporator Fan Front Bracket
256WR02X10764 GE Refrigerator Evaporator Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261WR51X10094 GE Refrigerator Defrost Heater
262WR29X10092 GE Refrigerator Ice Maker Fill Cup
266THERMOSTAT DEF
268WR55X10025 GE Refrigerator Temperature Sensor
273WR17X12936 GE Shield Trough Assembly
276WR17X12929 GE Refrigerator IM Cover 21
278WR02X12714 GE Mounting Bracket
279GEN WR23X10603
610WR60X10277 GE Refrigerator Evaporator Fan DC Motor Assembly
614BUMPER
820WR30X35285 GE Refrigerator Icemaker Assembly
877GEN WR14X10304
905WR02X13415 GE Refrigerator Front Connector DD
