ZFGP21HZJ SS FREEZER SHELVES

ZFGP21HZJ SS FREEZER SHELVES

Written by

in

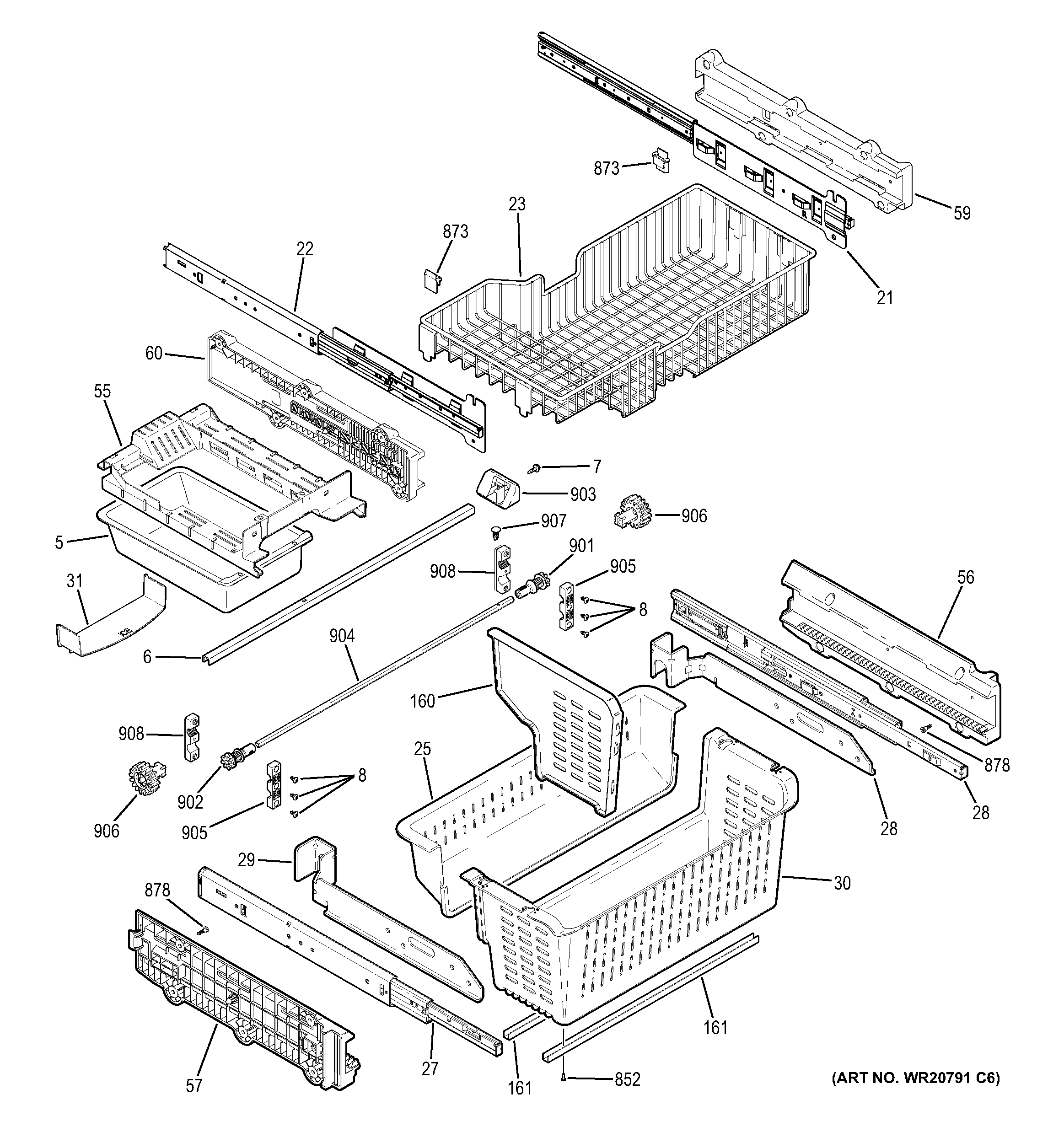

ZFGP21HZJ SS FREEZER SHELVES

Products

PositionProduct
5GEN WR30X10147
6GEN WR02X12692
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
8WR01X10607 GE Scraper 8-18 Ab Phr 1/2 S
21SLIDE UPPER ASM RH 21
22SLIDE UPPER ASM LH 21
23WR21X10200 GE Refrigerator Upper Basket 21
25WR21X10230 GE Lower Back Basket
27WR17X20799 GE Refrigerator Slide Lower Assembly 21
28WR17X22008 GE Refrigerator Right Hand Lower Slide Assembly 21
28WR17X12922 GE Right Connector Bracket
29WR17X12923 GE Bracket Connector LH
30WR21X10232 GE Refrigerator Lower Front Basket
31WR17X12940 GE Ice Chute Bucket
55WR17X12928 GE Refrigerator IM Guide
56WR02X13380 GE Refrigerator Rail Holder Lower Right Hand 21
57WR02X13381 GE Refrigerator Lower Left Hand Rail Holder
59WR02X12712 GE Refrigerator Rail Holder Up Right Hand 21
60WR02X12713 GE Refrigerator Upper Left Hand Rail Holder
160WR02X13597 GE Refrigerator Divider Basket Bottom 21
161WR02X13383 GE Refrigerator Stiffener
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
873WR02X12733 GE Refrigerator Bracket Sleeve
878WR01X10939 GE Refrigerator Screw 10-14 PL FLT20 3/4 S
901WR02X13413 GE Refrigerator Lower Drawer Right Hand Pinion
902WR02X13414 GE Refrigerator Pinion Lower Drawer Left Hand
903GEN WR02X13385
904WR02X13411 GE Refrigerator Cross Bar Pinion
905WR02X13415 GE Refrigerator Front Connector DD
906WR02X13412 GE Refrigerator Lower Drawer Gear
907WR01X10947 GE Refrigerator Fastener Push
908WR02X13416 GE Refrigerator Rear Connector
