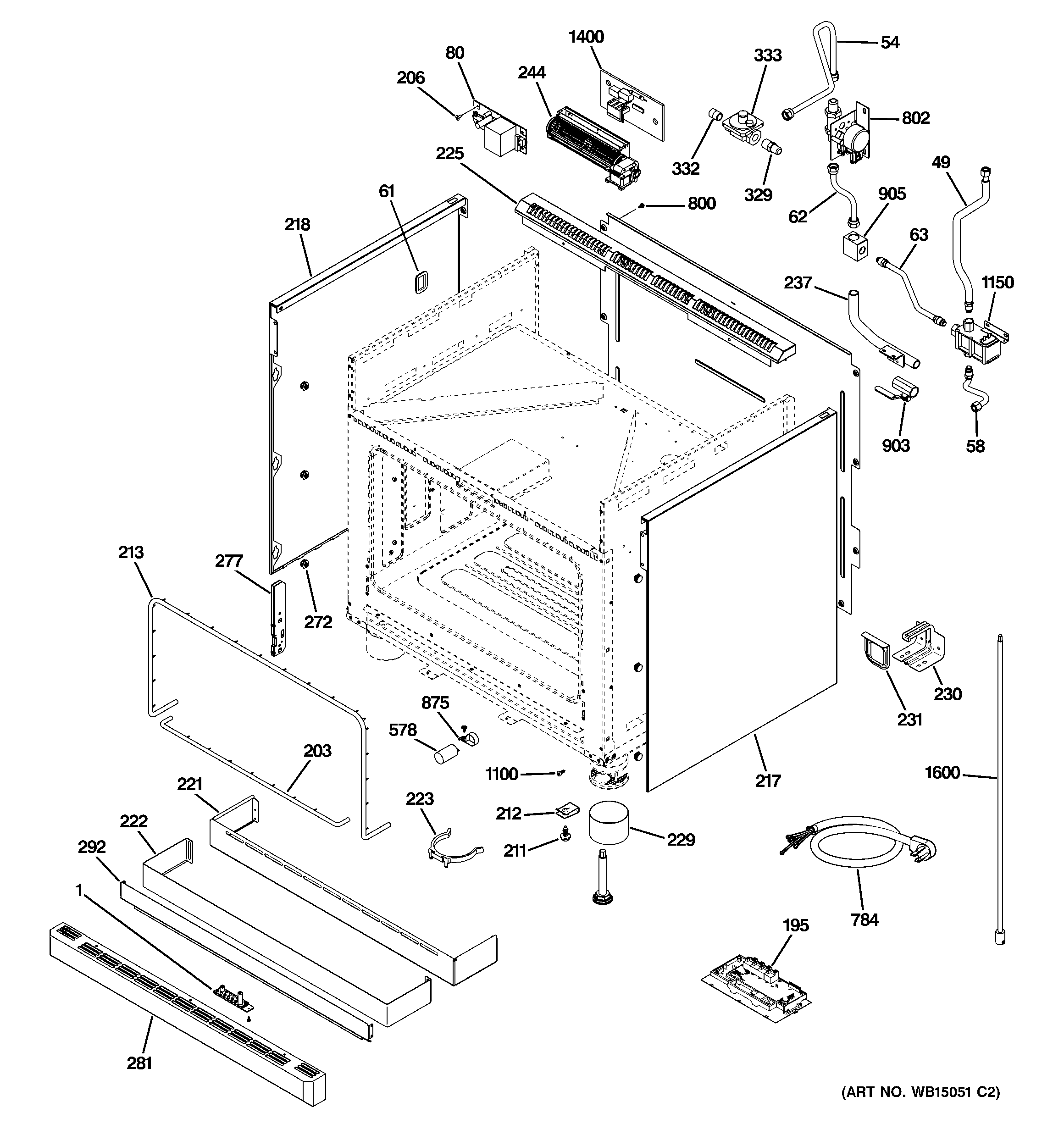

ZGP304NR3SS BODY PARTS

ZGP304NR3SS BODY PARTS

Written by

in

ZGP304NR3SS BODY PARTS

Products

PositionProduct
1WB28K10642 GE Lp Conversion Kit
1GEN 31-10766
1GEN 31-10698
1WB02T10303 GE Cleaner Lubricant
1GEN 31-14932
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-10694
1GEN 31-10695
49GEN WB28K10664
54TUBE COOKTOP SUPPLY ASM
58TUBE BAKE SUPPLY ASM
61BUSHING WIRE
62WB28K10671 GE Valve Assembly Tube Lockout
63GEN WB28K10652
80WB25K10013 GE Oven LED Power Supply
195WB19K10063 GE Oven Relay Board Assembly
203GASKET FRAME FRONT
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB02K10242 GE Oven Door Gasket
217WB63K10263 GE Side Panel
218WB63K10264 GE Side Panel
221WB07K10439 GE Toe Kick Top
222GEN WB07K10440
223WB02K10225 GE Oven Toe Kick Clip
225WB07K10451 GE Oven Vent Trim Assembly
230WB02K10237 GE Oven Anti-Tip Bracket
231WB02K10224 GE Oven Anti-Tip Brace
237PIPE SUPPLY ASM
244WB26K10012 GE Oven Tangential Blower 45MM
277GEN WB10T10083
281WB07K10447 GE Access Panel
292WB07K10333 GE Access Panel Back
329WB02K10228 GE Flare Fitting Adapter
332WB02K10301 GE Nipple
333WB21K10137 GE Oven Regulator
333WB01K10020 GE Oven Handle Spacer
578WB27T10662 GE Oven Capacitor
784WB18K10070 GE Oven Line Cord
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
802WB21K10154 GE Oven Motorized Valve Lockout
875WB02T10194 GE Capacitor Bracket
903WB19K10038 GE Oven Shut Off Valve
905WB28K10662 GE Inlet Block
1100WR01X10590 GE Refrigerator Screw 10-16 Ab Pnt20 1/2 S
1150WB21K10153 GE Oven Safety Valve Assembly
1400WB27K10367 GE Oven Printed Circuit Board Reed Switch
