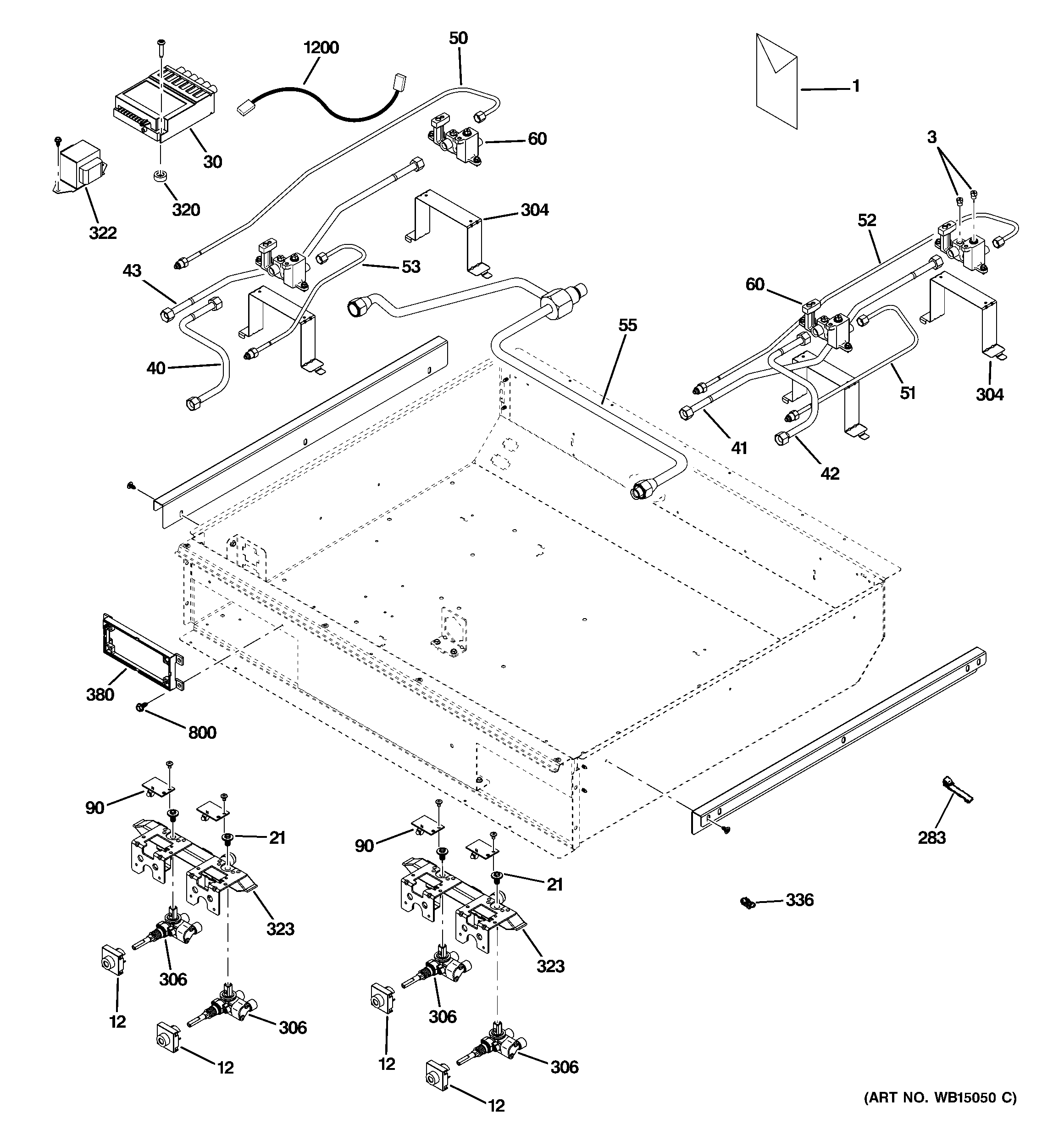

ZGP304NR3SS GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-14932
1	GEN 31-10698
1	GEN 31-10766
1	GEN 31-10695
1	GEN 31-10694
1	WB02T10303 GE Cleaner Lubricant
1	WB02T10111 GE Cleaner Stainless Steel
3	WB28K10659 GE Broil Orifice Spud
3	WB28K10656 GE Broil Orifice Spud
3	WB28T10159 GE Oven NG Simmer Orifice Spud
3	WB28T10155 GE Oven NG Main Orifice Spud
3	WB28K10642 GE Lp Conversion Kit
3	WB28T10157 GE Oven High Alt Orifice Natural Gas Main
3	WB28T10118 GE Oven LP Main Orifice Spud
3	WB28T10117 GE Oven LP Main Orifice Spud
3	WB28T10158 GE Oven LP Main Orifice Spud
21	WB01K10067 GE Oven Screw 1/4" HD 20
30	WB13X27483 GE Spark Module
40	WB28K10492 GE Tube and Nut Assembly
41	WB28K10493 GE Oven Tube and Nut Assembly
42	WB28K10494 GE Oven Tube and Nut Assembly
43	TUBE AND NUT ASM
50	WB28K10496 GE Tube and Nut Assembly
51	WB28K10497 GE Oven Tube and Nut Assembly
52	WB28K10498 GE Oven Tube & Nut Assembly
53	WB28K10499 GE Tube and Nut Assembly
55	GEN WB28K10551
60	WB28T10114 GE Oven Injector Burner 18K
90	WB25K10012 GE Oven LED Assembly
283	WB02X21679 GE Oven Wire Clip
304	WB02K10192 GE Range Injection Bracket
306	WB21K10164 GE Oven Dual Valve
320	WB1K10 GE Oven Grommet Handle
322	WB27K10298 GE Oven Transformer
323	WB28K10536 GE Appliance Manifold Pipe Assembly
336	GEN WB02X7066
380	BRACKET POWER SUPPLY
800	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1200	WB18K10052 GE Oven HV Harness
