ZGP304NT2SS GAS & BURNER PARTS

ZGP304NT2SS GAS & BURNER PARTS

Written by

in

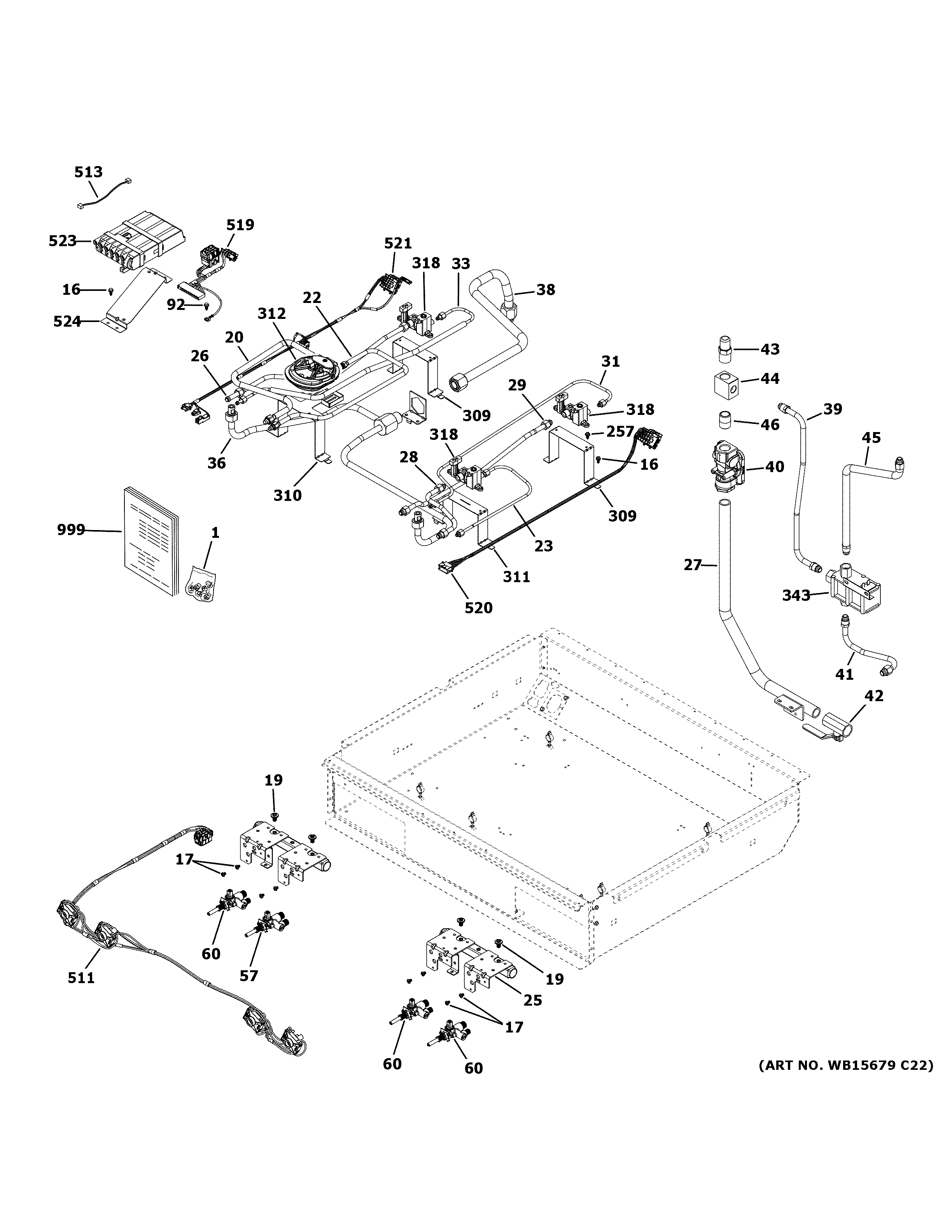

ZGP304NT2SS GAS & BURNER PARTS

Products

PositionProduct
1WB28X40687 GE LP Conversion Kit
1WB28X39726 GE High Altitude Natural Gas Conversion Kit
16SCREW
17WB01K10002 GE Oven Screw 8-32
19WB01K10067 GE Oven Screw 1/4" HD 20
20WB28X39363 GE Stainless Steel Inlet Flex Tube
22WB28X39422 GE Stainless Flex Simmer Tube
23TUBE AND NUT SIMMER SUPPLY INJET FRONT
25PIPE MANIFOLD
26TUBE AND NUT MAIN SUPPLY INJET REAR
27WB28X39652 GE Supply Pipe
28TUBE AND NUT MAIN SUPPLY INJET FRONT
29TUBE AND NUT MAIN SUPPLY INJET REAR
31TUBE AND NUT SIMMER SUPPLY INJET REAR
33TUBE AND NUT SIMMER SUPPLY INJET REAR
36DUAL PIPE MANIFOLD
38TUBE MANIFOLD SUPPLY DUAL FUEL 30"
39TUBING AND NUT
40WB21X39665 GE Gas Pressure Regulator
41TUBING AND NUT
42WB19K10038 GE Oven Shut Off Valve
43WB02K10228 GE Flare Fitting Adapter
44WB28K10662 GE Inlet Block
45TUBING AND NUT
46WB02K10227 GE Range Oven Nipple
57WB21X43803 GE Burner Valve 3R 310
60WB21X39509 GE Dual Valve Assembly
92WB1X1261 GE Oven Screw
257SCR 8-18 AB IHW 3/8 SN
309BRACKET INJET
310BRACKET INJET AFB
311BRACKET INJET
312BASE BURNER ASM AFB
318BURNER INJET ASM (15K BTU)
343WB21K10153 GE Oven Safety Valve Assembly
511WB18X39357 GE Burner Box Harness
513HARNESS GROUND
519WB18X40520 GE Spark Module Harness
520WB18X39330 GE Serial Harness
521HARNESS EXTENSION
523WB13X39923 GE Spark Module
524WB34X28667 GE Ignition Module Bracket
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM INSTALL ANTI-TIP BRKT
999PM ATTENTION INSTALLER
999PRINTED ONLYMINI MANUAL AND WIRING
