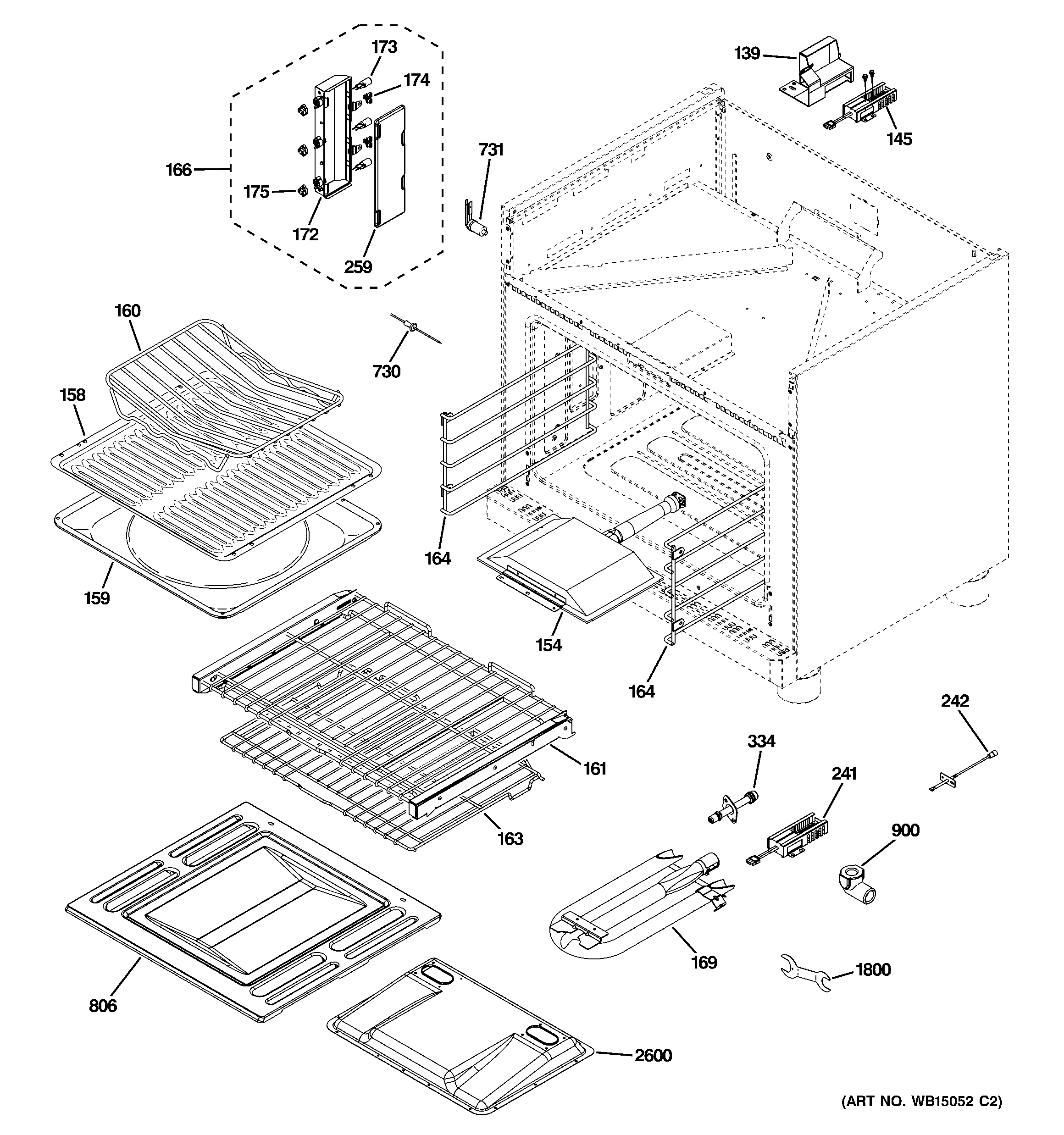

ZGP364LRR2SS OVEN CAVITY PARTS

ZGP364LRR2SS OVEN CAVITY PARTS

Written by

in

ZGP364LRR2SS OVEN CAVITY PARTS

Products

PositionProduct
139BRACKET GLOWBAR
145WB13K10030 GE Oven Igniter Glow Bar
154WB28K10653 GE Oven Broil Burner
158WB49K10017 GE Broiler Pan Rack
159WB49K10018 GE Broiler Pan
160WB48K10020 GE Oven Rack – Convection Roast
161WB48X33814 GE Oven Rack and Guide Assembly
163WB48K10024 GE Oven Rack
164WB02K10196 GE Oven Guide Rack
166WB08K10016 GE Oven Halogen Lamp Assembly
169WB28X33793 GE Griddle Burner
169WB31K10226 GE Mesh Frame
172REFLECTOR LIGHT
173CLIP WIRE
173WB25T10064 GE Oven Halogen Lamp 20W
174WB02T10297 GE Glass Retainer Clip
175COVER BASE
242WB21T10019 GE Oven Sensor Assembly
259WB25T10063 GE Oven Crystal Lamp
730WB20K10030 GE Oven Probe Thermistor
731WB20K10032 GE Oven Probe Receptacle
806WB35K10196 GE Oven Bottom
900WB02K10306 GE Elbow Orifice Broil
1800WB63X39957 GE Service Leg Kit
2600OVEN TOP
