ZGP364NDR3SS CONTROL PANEL

ZGP364NDR3SS CONTROL PANEL

Written by

in

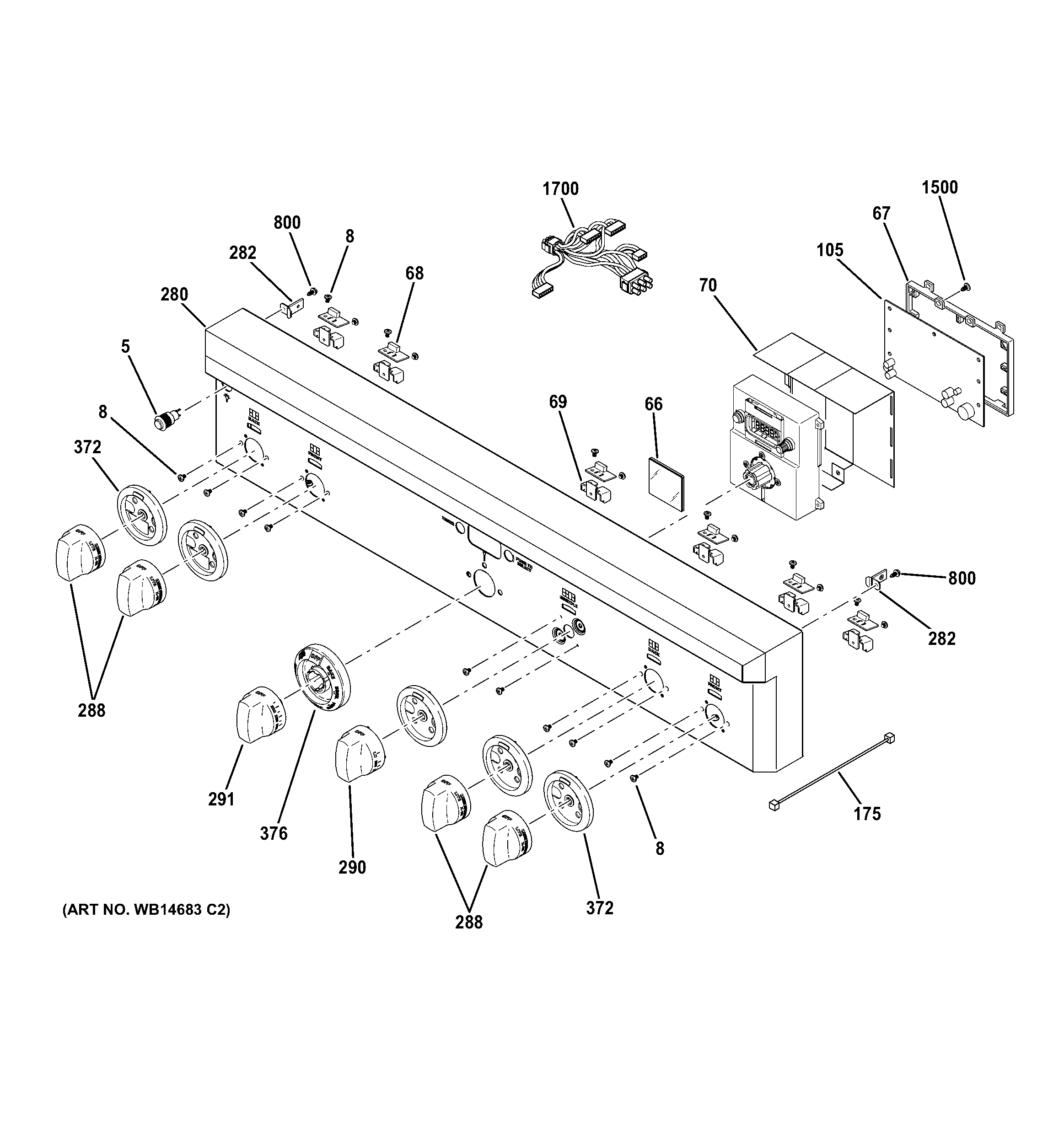

ZGP364NDR3SS CONTROL PANEL

Products

PositionProduct
5WB21K10139 GE Oven LED Switch
8WB01K10002 GE Oven Screw 8-32
66WB57K10134 GE Glass Display
67WB02K10213 GE Control Bracket
68WB25K10014 GE Oven LED Board
69WB02K10214 GE LED Bracket
70WB24K10081 GE Oven Encoder Assembly
105WB27K10305 GE Oven Control Display Module
175COVER BASE
280WB36K10978 GE Refrigerator Control Panel and Rail Assembly
282WB02K10211 GE Range Bracket Control Panel
288WB03K10359 GE Oven Knob Assembly
290WB03K10258 GE Oven Griddle Knob Assembly
291WB03K10259 GE Oven Thermostat Knob Assembly
372WB07K10299 GE Knob Bezel
376WB03K10307 GE Oven Range Bezel
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1700WB24K10063 GE Oven Dual Serial Harness
