ZGP364NDR3SS OVEN CAVITY PARTS

ZGP364NDR3SS OVEN CAVITY PARTS

Written by

in

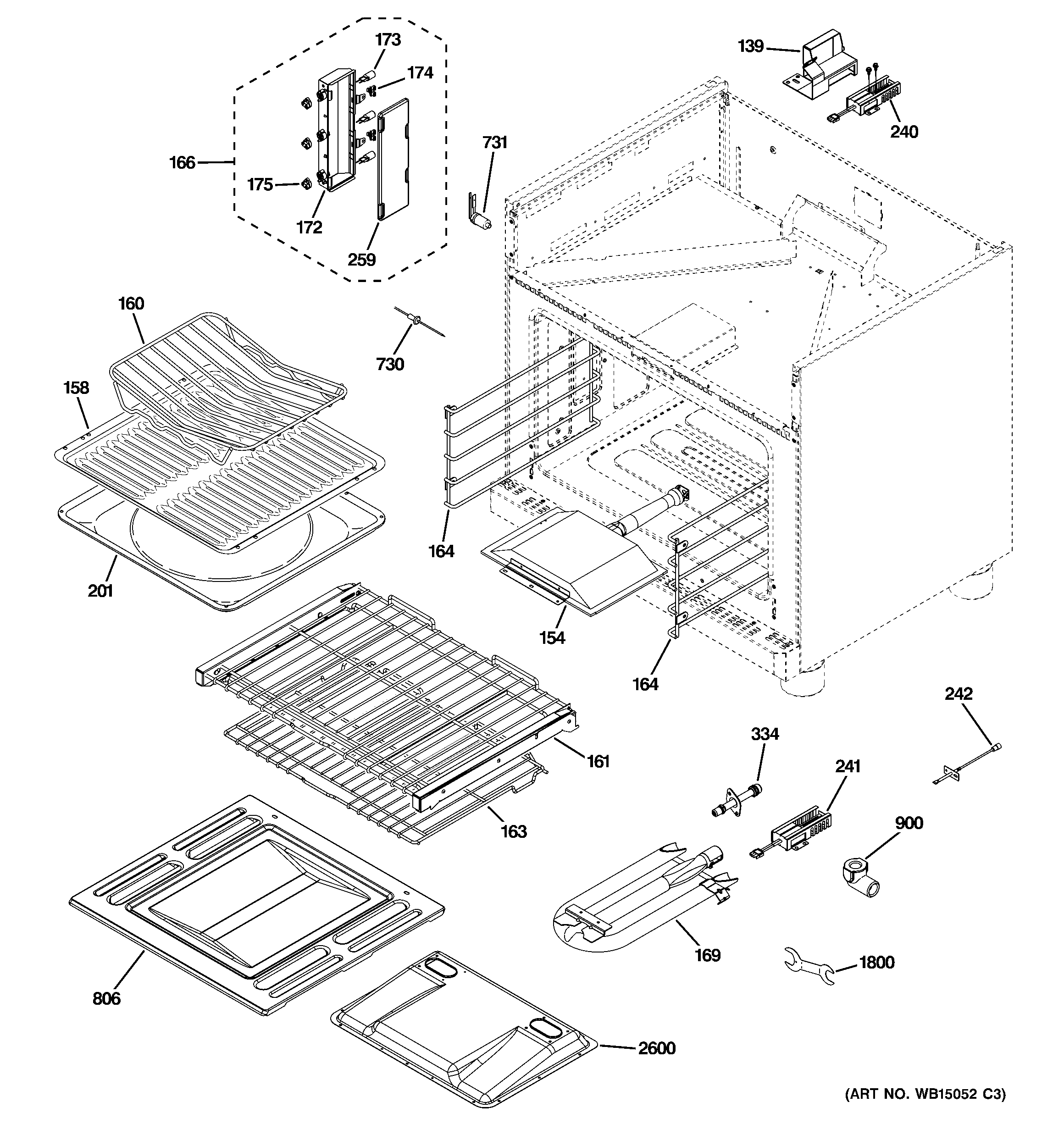

ZGP364NDR3SS OVEN CAVITY PARTS

Products

PositionProduct
139BRACKET GLOWBAR
154WB28K10653 GE Oven Broil Burner
158WB49K10017 GE Broiler Pan Rack
160WB48K10020 GE Oven Rack – Convection Roast
163WB48K10024 GE Oven Rack
166WB08K10016 GE Oven Halogen Lamp Assembly
169WB28X33794 GE Burner Griddle
172REFLECTOR LIGHT
173WB25T10064 GE Oven Halogen Lamp 20W
173CLIP WIRE
174WB02T10297 GE Glass Retainer Clip
175COVER BASE
201WB49K10018 GE Broiler Pan
240WB13X25261 GE Oven Igniter Glowbar
241GLOWBAR IGNITER
242WB21T10019 GE Oven Sensor Assembly
259WB25T10063 GE Oven Crystal Lamp
334WB02K10309 GE Bake Orifice Elbow
730WB20K10030 GE Oven Probe Thermistor
731WB20K10032 GE Oven Probe Receptacle
806WB35K10196 GE Oven Bottom
900WB02K10306 GE Elbow Orifice Broil
1800WB63X39957 GE Service Leg Kit
2600OVEN TOP
