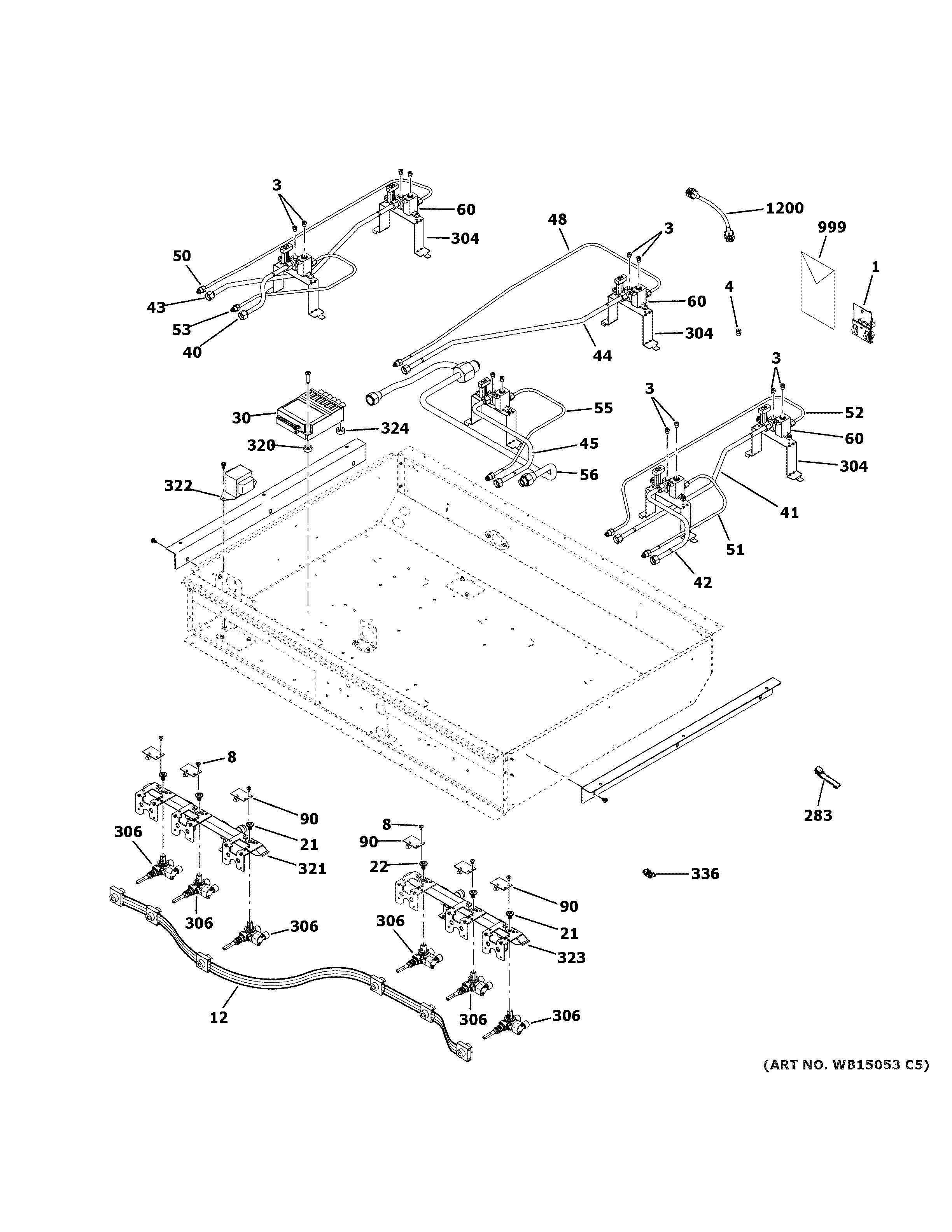

ZGP366NN1SS GAS & BURNER PARTS

Products

PositionProduct
1HI ALTITUDE ORIFICE KIT
1WB28K10640 GE Oven LP Conversion Kit
1WB28K10639 GE Oven Orifice Carrier Assembly
3WB28T10159 GE Oven NG Simmer Orifice Spud
3WB28T10155 GE Oven NG Main Orifice Spud
3WB28T10117 GE Oven LP Main Orifice Spud
3WB28T10118 GE Oven LP Main Orifice Spud
4WB28K10659 GE Broil Orifice Spud
4WB28K10656 GE Broil Orifice Spud
4SPUD BAKE ORIFICE
8WB01K10002 GE Oven Screw 8-32
12WB24K10086 GE Oven Burner Box Harness
21WB01K10067 GE Oven Screw 1/4" HD 20
22WB01K10109 GE Screw 8 Head 1/4-20
30MODULE SPARK 6+0
40WB28K10492 GE Tube and Nut Assembly
41WB28K10493 GE Oven Tube and Nut Assembly
42WB28K10494 GE Oven Tube and Nut Assembly
43TUBE AND NUT ASM
44TUBE AND NUT ASM
45TUBE AND NUT ASM
48WB28K10545 GE Assembly Tube and Nut
50WB28K10496 GE Tube and Nut Assembly
51WB28K10497 GE Oven Tube and Nut Assembly
52WB28K10498 GE Oven Tube & Nut Assembly
53WB28K10499 GE Tube and Nut Assembly
55TUBE AND NUT ASM
56WB28K10547 GE Tee Swad Assembly
60WB28T10114 GE Oven Injector Burner 18K
90WB25K10012 GE Oven LED Assembly
283WB02X21679 GE Oven Wire Clip
304WB02K10192 GE Range Injection Bracket
306WB21K10164 GE Oven Dual Valve
320WB1K10 GE Oven Grommet Handle
321WB28K10503 GE Oven Pipe Manifold Assembly
322WB27K10298 GE Oven Transformer
323WB28K10527 GE Oven Pipe Manifold Assembly RT
324WB01K10020 GE Oven Handle Spacer
336GEN WB02X7066
999PM INSTALL ANTI-TIP BRKT
999PM ATTENTION INSTALLER
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
1200WB18K10050 GE Oven Harness
