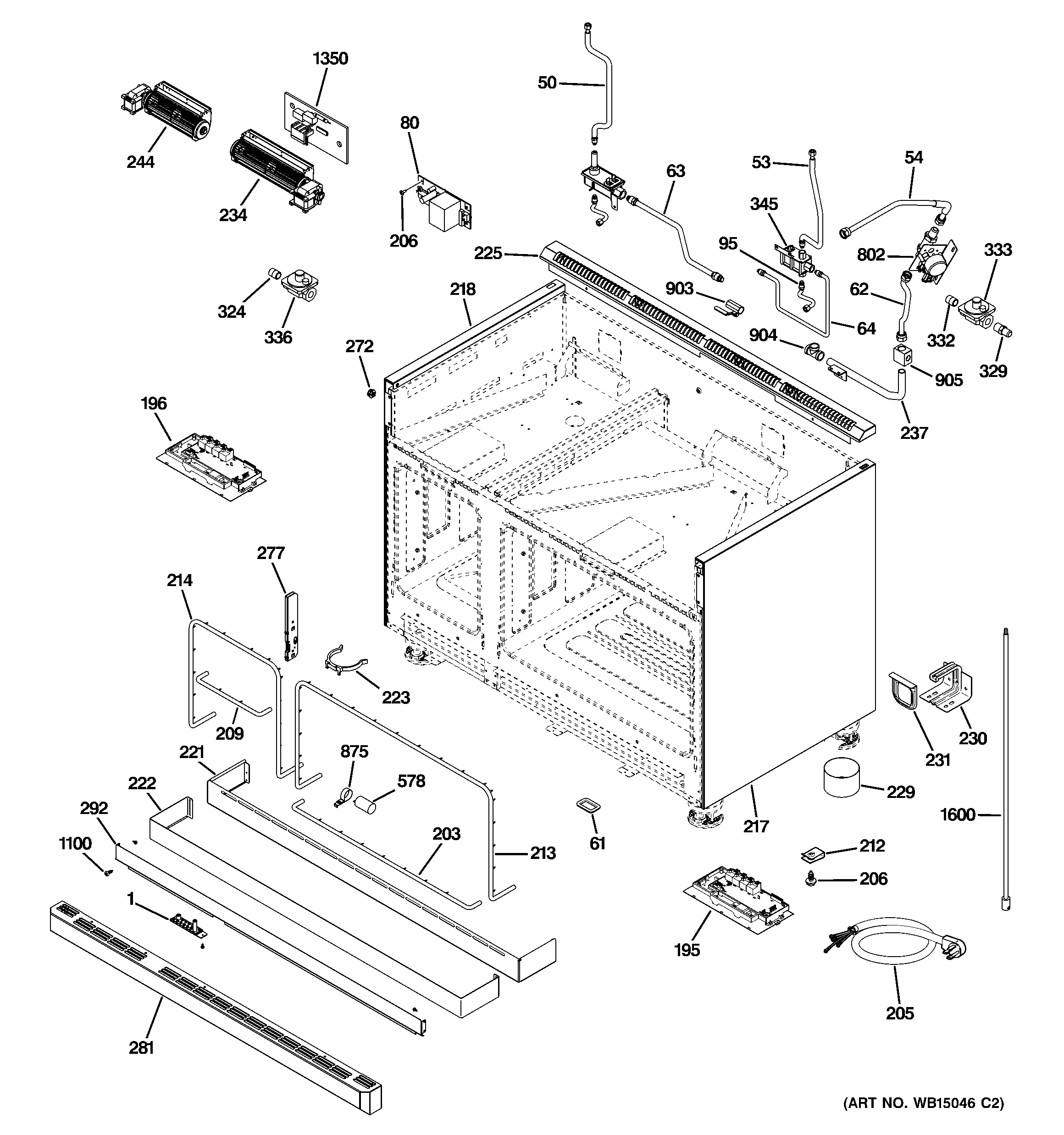

ZGP484NGR1SS BODY PARTS

ZGP484NGR1SS BODY PARTS

Written by

in

ZGP484NGR1SS BODY PARTS

Products

PositionProduct
1WB28K10640 GE Oven LP Conversion Kit
1GEN 31-10695
1GEN 31-10755
1GEN 49-85180
1GEN 31-10766
1WB02T10303 GE Cleaner Lubricant
1GEN 31-14931
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-10694
1GEN 31-10698-1
50WB28K10496 GE Tube and Nut Assembly
53WB28K10499 GE Tube and Nut Assembly
54TUBE COOKTOP SUPPLY ASM
61BUSHING WIRE
62TUBE LOCKOUT VALVE ASM
63WB28K10651 GE Gas Valve Supply Tube Assembly
64GEN WB28K10652
80WB25K10013 GE Oven LED Power Supply
95TUBE BAKE SUPPLY ASM
195WB19K10064 GE Relay Board Assembly
196WB19K10065 GE Relay Board Assembly
203WB04K10032 GE Frame Gasket
205WB18K10070 GE Oven Line Cord
206WB01K10091 GE Oven Screw
209GASKET FRAME FRONT
212WB1K2 GE Oven Speednut
213WB02K10195 GE Oven Gasket Frame Front
214WB02K10194 GE Frame Gasket
217WB63K10265 GE Oven Side Panel
218WB63K10195 GE Left Side Panel
221WB07K10384 GE Oven Toe Kick Top
222WB07K10381 GE Oven Toekick
223WB02K10225 GE Oven Toe Kick Clip
225GEN WB07K10388
229WB02K10193 GE Oven Leg Assembly
230WB02K10237 GE Oven Anti-Tip Bracket
231WB02K10224 GE Oven Anti-Tip Brace
231BRACKET ASM ANTI-TIP
234WB26K10013 GE 45° Tangential Blower
237PIPE SUPPLY ASM
244WB26K10012 GE Oven Tangential Blower 45MM
272WB02T10034 GE Oven Body Side Support
277GEN WB10T10083
281WB07K10353 GE Oven Access Panel
292PANEL ACCESS BACK
324WB02K10301 GE Nipple
329WB02K10228 GE Flare Fitting Adapter
332WB02K10227 GE Range Oven Nipple
333WB21K10137 GE Oven Regulator
333WB01K10020 GE Oven Handle Spacer
336GEN WB02X7066
345WB21K10153 GE Oven Safety Valve Assembly
578WB27T10662 GE Oven Capacitor
802WB21K10154 GE Oven Motorized Valve Lockout
875WB02T10194 GE Capacitor Bracket
903WB19K10038 GE Oven Shut Off Valve
904TEE CONNECTOR
905WB28K10662 GE Inlet Block
1100WR01X10590 GE Refrigerator Screw 10-16 Ab Pnt20 1/2 S
1600WB02K10259 GE Extension Rod
