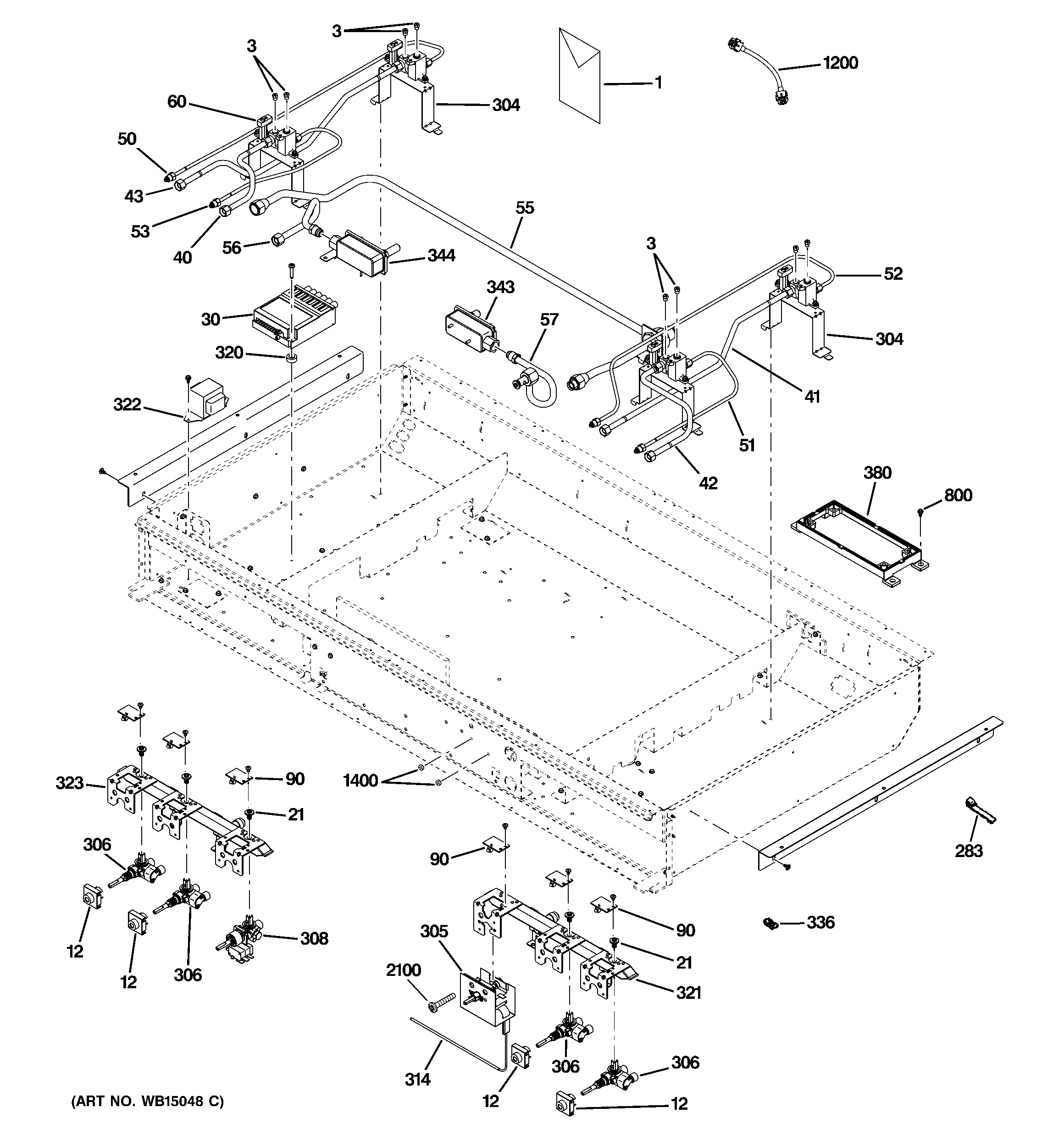

ZGP484NGR1SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-10694
1GEN 31-10755
1WB28K10640 GE Oven LP Conversion Kit
1GEN 31-10766
1WB02T10303 GE Cleaner Lubricant
1GEN 49-85180
1GEN 31-10695
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-10698-1
1GEN 31-14931
3WB28K10530 GE Oven Grill Spud Orifice
3WB28T10155 GE Oven NG Main Orifice Spud
3WB28T10159 GE Oven NG Simmer Orifice Spud
3WB28K10529 GE Oven Griddle Spud Orifice
3WB28K10659 GE Broil Orifice Spud
3WB28T10118 GE Oven LP Main Orifice Spud
3WB28T10117 GE Oven LP Main Orifice Spud
3WB28K10663 GE Broil Orifice Spud
12GEN WB24K10087
21WB01K10067 GE Oven Screw 1/4" HD 20
30WB13T10078 GE Oven Spark Module
30WB13X27483 GE Spark Module
40WB28K10492 GE Tube and Nut Assembly
41WB28K10493 GE Oven Tube and Nut Assembly
42WB28K10494 GE Oven Tube and Nut Assembly
43TUBE AND NUT ASM
50WB28K10496 GE Tube and Nut Assembly
51WB28K10497 GE Oven Tube and Nut Assembly
52WB28K10498 GE Oven Tube & Nut Assembly
53WB28K10499 GE Tube and Nut Assembly
55TEE SWAGED ASM
56TUBE GRILL AND NUT ASM
57WB28K10500 GE Griddle Tube and Nut Assembly
60WB28T10114 GE Oven Injector Burner 18K
90WB25K10012 GE Oven LED Assembly
283WB02X21679 GE Oven Wire Clip
304WB02K10192 GE Range Injection Bracket
305WB24K10082 GE Oven Thermostat Switch
306WB21K10157 GE Oven Dual Valve
308WB21K10126 GE Oven Switch Valve Assembly
314WB21K10124 GE Oven Thermostat
320WB1K10 GE Oven Grommet Handle
321WB28K10502 GE Pipe Assembly Manifold
322WB27K10298 GE Oven Transformer
323WB28K10503 GE Oven Pipe Manifold Assembly
336GEN WB02X7066
343WB19K10066 GE Oven Safety Valve
344WB21K10152 GE Oven Safety Valve Assembly
380BRACKET POWER SUPPLY
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1200WB18K10047 GE Oven HV Harness
1400WB27K10367 GE Oven Printed Circuit Board Reed Switch
1400WB01T10086 GE Keystone Nut 6-32
2100WB01K10101 GE Screw 8-32 Captive Trap 7/8" Nickel
