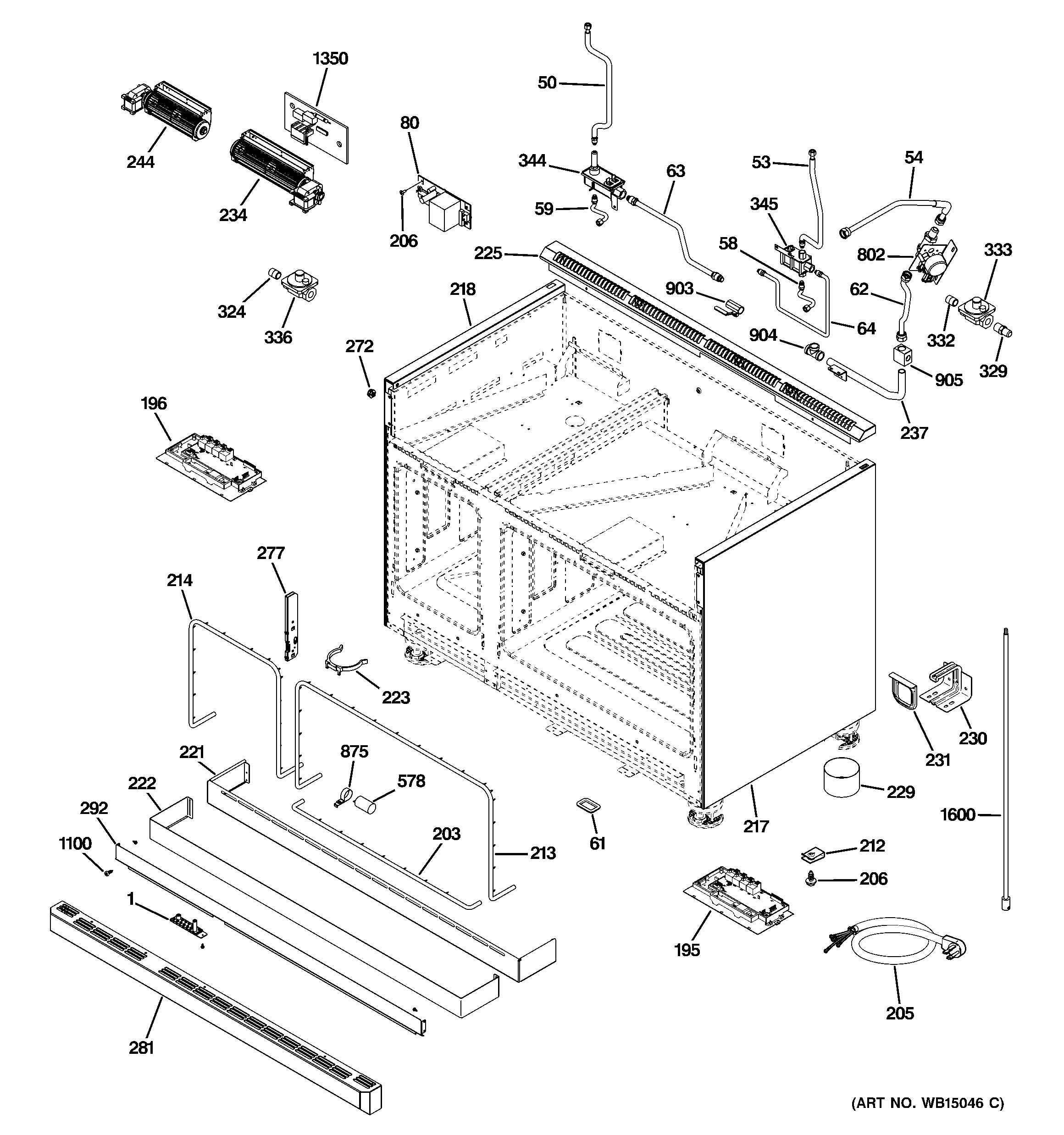

ZGP486NDR1SS BODY PARTS

ZGP486NDR1SS BODY PARTS

Written by

in

ZGP486NDR1SS BODY PARTS

Products

PositionProduct
1WB02T10111 GE Cleaner Stainless Steel
1WB02T10303 GE Cleaner Lubricant
1GEN 31-10766
1GEN 49-85180
1WB28K10640 GE Oven LP Conversion Kit
1GEN 31-10694
1GEN 31-10695
1GEN 31-14931
1GEN 31-10755
50TUBE BROIL SUPPLY ASM
53TUBE BROIL SUPPLY ASM
54TUBE COOKTOP SUPPLY ASM
58TUBE BAKE SUPPLY ASM
61BUSHING WIRE
62TUBE LOCKOUT VALVE ASM
63WB28K10651 GE Gas Valve Supply Tube Assembly
64GEN WB28K10652
80WB25K10013 GE Oven LED Power Supply
195WB19K10064 GE Relay Board Assembly
196WB19K10065 GE Relay Board Assembly
203WB04K10032 GE Frame Gasket
205WB18K10070 GE Oven Line Cord
206WB01K10091 GE Oven Screw
206WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB02K10195 GE Oven Gasket Frame Front
214WB02K10194 GE Frame Gasket
217WB63K10265 GE Oven Side Panel
218WB63K10195 GE Left Side Panel
218GEN WB13K10036
218WB13K21 GE Oven Igniter with 7 Leads
221WB07K10384 GE Oven Toe Kick Top
222WB07K10381 GE Oven Toekick
223WB02K10225 GE Oven Toe Kick Clip
225GEN WB07K10392
229WB02K10193 GE Oven Leg Assembly
230WB02K10237 GE Oven Anti-Tip Bracket
231BRACKET ASM ANTI-TIP
231WB02K10224 GE Oven Anti-Tip Brace
234WB26K10013 GE 45° Tangential Blower
237PIPE SUPPLY ASM
244WB26K10012 GE Oven Tangential Blower 45MM
272WB02T10034 GE Oven Body Side Support
277GEN WB10T10083
281WB07K10353 GE Oven Access Panel
292PANEL ACCESS BACK
324WB02K10301 GE Nipple
329WB02K10228 GE Flare Fitting Adapter
332WB02K10227 GE Range Oven Nipple
333WB01K10020 GE Oven Handle Spacer
333WB21K10137 GE Oven Regulator
344WB21K10152 GE Oven Safety Valve Assembly
345WB21K10153 GE Oven Safety Valve Assembly
578WB27T10662 GE Oven Capacitor
802WB21K10154 GE Oven Motorized Valve Lockout
875WB02T10194 GE Capacitor Bracket
903WB19K10038 GE Oven Shut Off Valve
904TEE CONNECTOR
905WB28K10662 GE Inlet Block
1100WR01X10590 GE Refrigerator Screw 10-16 Ab Pnt20 1/2 S
1350WB27K10367 GE Oven Printed Circuit Board Reed Switch
1600WB02K10259 GE Extension Rod
