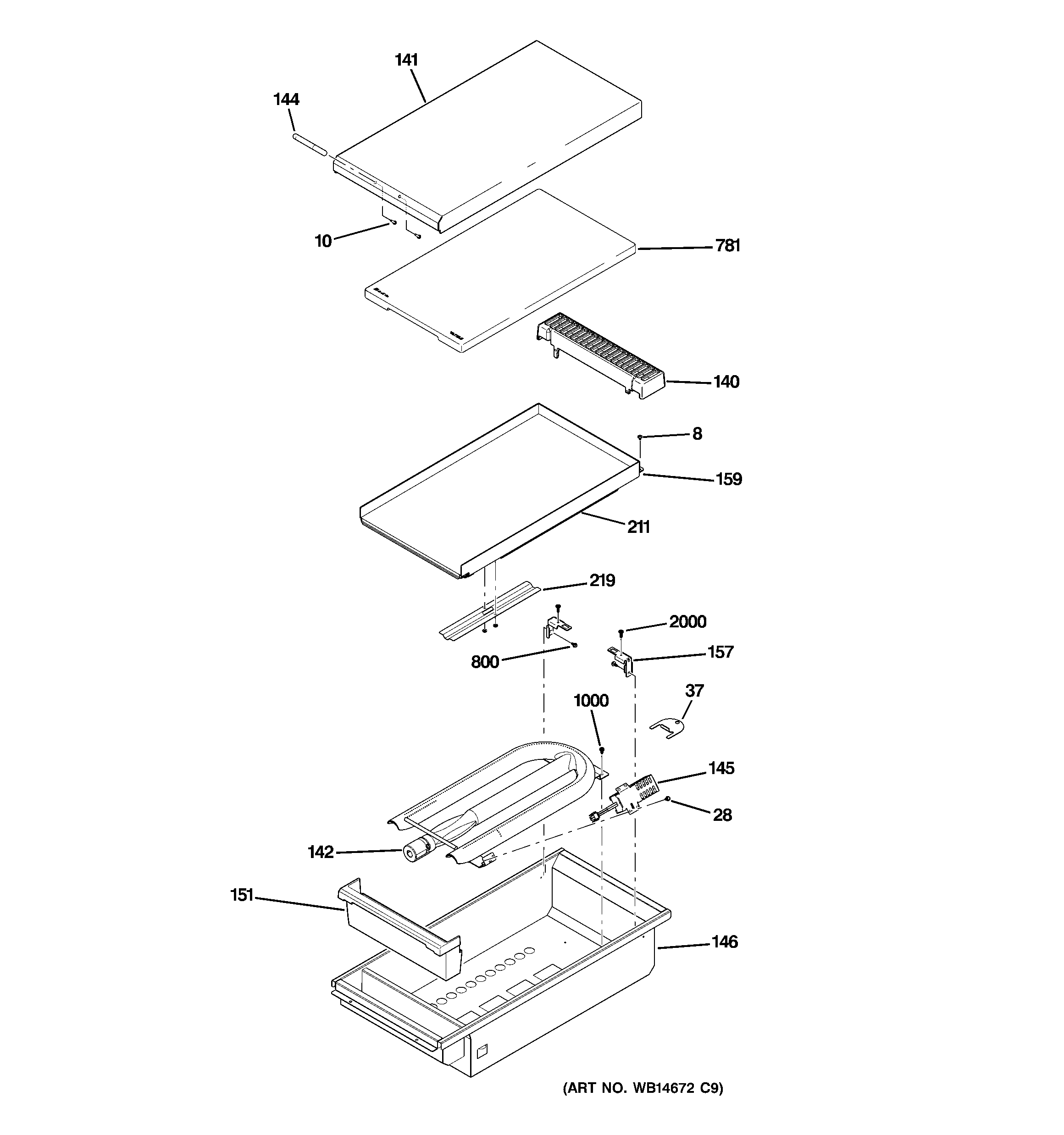

ZGP486NDR1SS GRIDDLE ASSEMBLYadmin2025-04-26T11:38:07+00:00ZGP486NDR1SS GRIDDLE ASSEMBLY ProductsPositionProduct8WB01K10002 GE Oven Screw 8-3210WB01T10104 GE Oven Screw 8-32 MCH28WB1X1293 GE Oven Screw37WB34K14 GE Igniter Cover140WB07K10418 GE Oven Griddle Vent142WB28X33794 GE Burner Griddle144WB15K10088 GE Range Handle Cover145WB13K10030 GE Oven Igniter Glow Bar146GRIDDLE BODY WELD151WB49K10038 GE Oven Grease Trough Assembly157WB02K10208 GE Griddle Bracket159WB32K10042 GE Oven Griddle Weld Plate Assembly211WB07K10295 GE Range Griddle Plate211WB02K10209 GE Support Bracket219WB49K10015 GE Shield Bulb Thermostat781WB31K10223 GE Oven Griddle Butcher Block800WB01K10042 GE Oven Screw 3/8" AB IHW 8-181000WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel2000WB01K10100 GE Screw 10-32 TRP 1/2"
