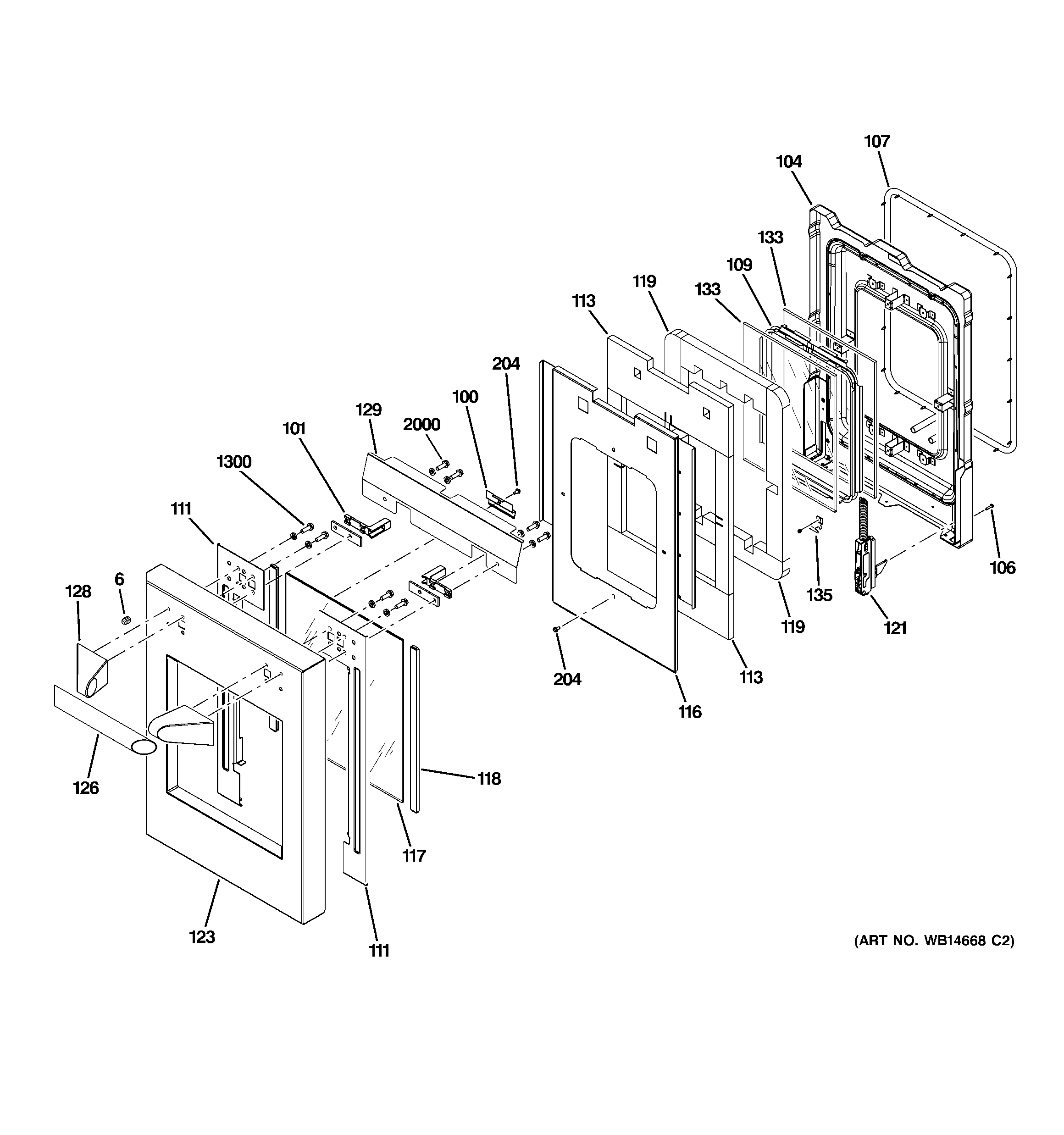

ZGP486NDR1SS SMALL DOOR ASSEMBLY

Products

Position	Product
6	WR02X11754 GE Refrigerator Screw Set
100	WB02K10218 GE Range Bracket Glass
101	WB02K10219 GE Range Extension Endcap
104	WB55K10060 GE Oven Door Liner Assembly
106	WB01K10089 GE Screw 10-32 Tr T 7/8 S
107	WB02K10221 GE Oven Gasket 27"
107	WB02K10220 GE Range Door Gasket
109	SPACER WINDOW
111	WB07K10379 GE Right Outer Glass Support
111	SUPPORT OUTER GLASS LF
113	FT INSUL DOOR TOP 12"
113	RR INSUL DOOR BTM 12"
116	GUARD INSULATION
117	GLASS DOOR 12"
118	WB04K10028 GE Door Pad
119	RR INSUL DOOR TOP 12"
119	RR INSUL DOOR BTM 12"
121	WB10K10014 GE Oven Left Door Hinge
121	WB10K10013 GE Oven Right Door Hinge
123	GEN WB56K10065
126	BAR HANDLE 12"
128	WR02X12344 GE Refrigerator Endcap
129	HEAT DEFLECTOR
129	HEAT DEFLECTOR 12"
133	WB57K10137 GE Glass Door Assembly
135	CLIP WINDOW
204	WB1K84 GE Oven Screw and
204	WB1K5062 GE Oven Screw
1300	WB01K10088 GE Screw 1/4-20 Tt Hxws 3/4"
2000	WB01K10100 GE Screw 10-32 TRP 1/2"
