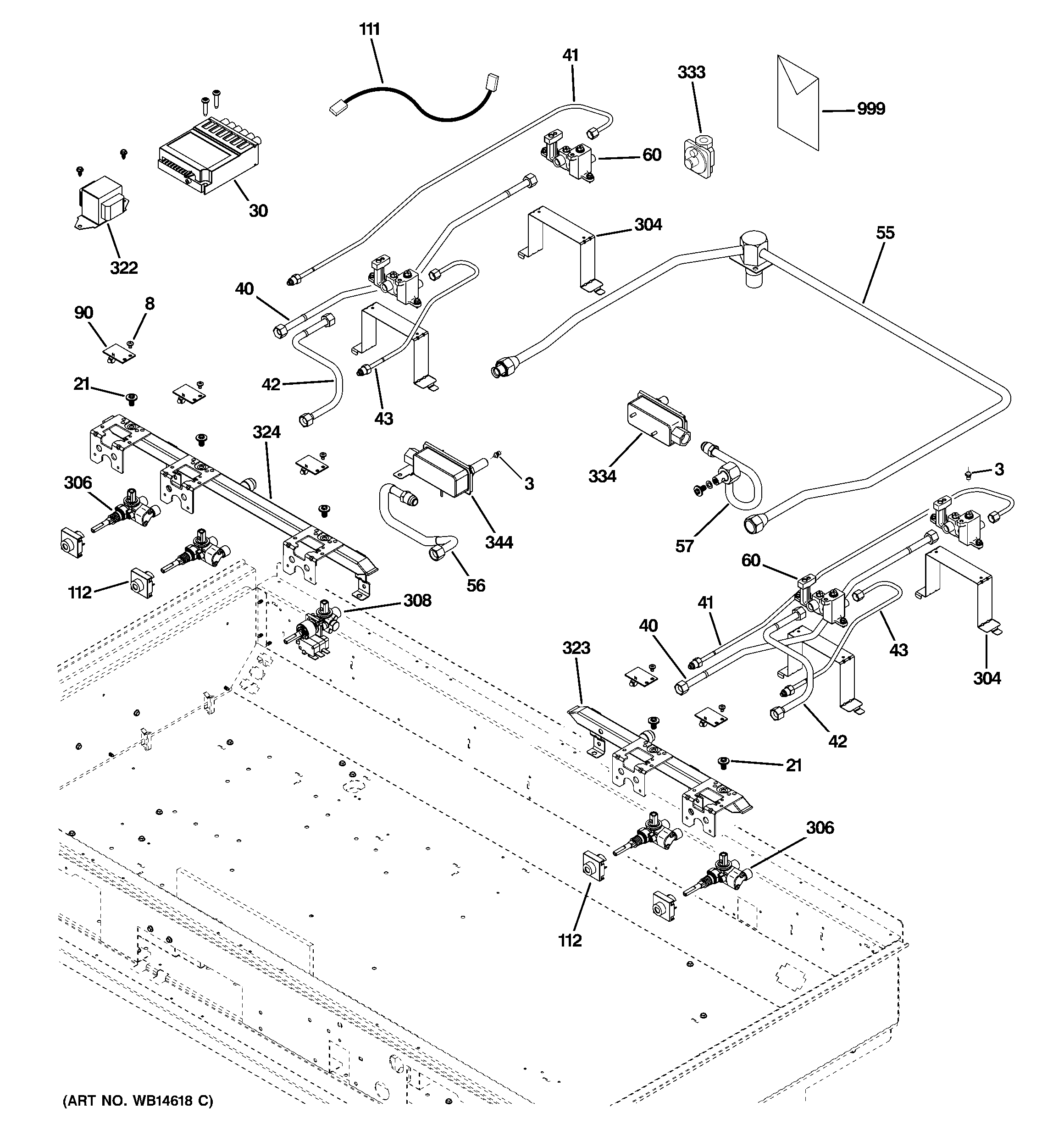

ZGU484LGP1SS GAS & BURNER PARTS

Products

Position	Product
3	WB28K10529 GE Oven Griddle Spud Orifice
3	WB28T10155 GE Oven NG Main Orifice Spud
3	WB28T10159 GE Oven NG Simmer Orifice Spud
3	WB28K10531 GE Griddle Spud Orifice
3	WB28T10118 GE Oven LP Main Orifice Spud
3	WB28T10117 GE Oven LP Main Orifice Spud
3	WB28K10532 GE Spud Orifice Grille
3	WB28K10530 GE Oven Grill Spud Orifice
8	WB01K10002 GE Oven Screw 8-32
21	WB01K10067 GE Oven Screw 1/4" HD 20
30	WB13T10078 GE Oven Spark Module
40	WB28K10509 GE Nut and Tube Assembly
41	WB28K10511 GE Tube and Nut Assembly
42	WB28K10510 GE Oven Tube and Nut Assembly
43	WB28K10512 GE Tube and Nut Assembly
55	WB28K10513 GE Swaged Elbow Assembly
56	WB28K10514 GE Grill Tube and Nut Assembly
57	WB28K10500 GE Griddle Tube and Nut Assembly
60	WB28T10114 GE Oven Injector Burner 18K
90	WB25K10012 GE Oven LED Assembly
111	WB18K10047 GE Oven HV Harness
112	WB24K10049 GE Oven Burner Box Harness
304	WB02K10192 GE Range Injection Bracket
306	GEN WB21K10132
306	VALVE DUAL
308	WB21K10126 GE Oven Switch Valve Assembly
308	WB21K10134 GE Oven Switch Valve Assembly
322	WB27K10298 GE Oven Transformer
323	WB28K10515 GE Pipe Manifold Assembly
324	WB28K10516 GE Pipe Manifold Assembly
333	WB21K10137 GE Oven Regulator
333	WB21K10135 GE Oven Regulator
334	WB19K10036 GE Oven Safety Valve
334	WB19K10032 GE Oven Safety Valve
344	WB19K10037 GE Oven Safety Valve
344	WB19K10033 GE Oven Safety Valve
999	GEN 31-10693
999	WB02T10111 GE Cleaner Stainless Steel
999	GEN 31-10691
999	GEN 31-10697
999	GEN 31-14752
999	GEN 45-85119
