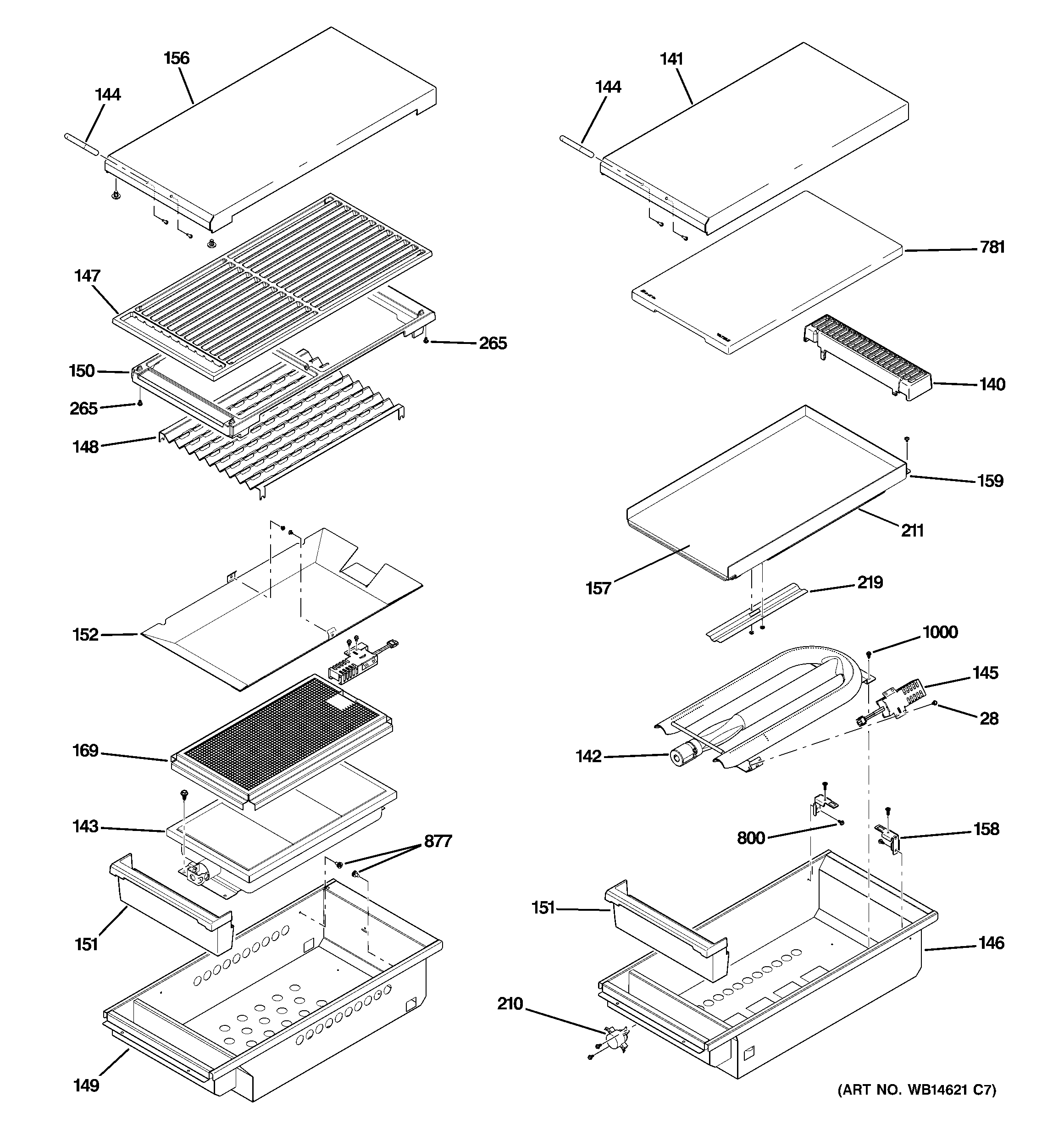

ZGU484LGP1SS GRILL & GRIDDLE ASSEMBLYadmin2025-04-26T11:42:21+00:00ZGU484LGP1SS GRILL & GRIDDLE ASSEMBLY ProductsPositionProduct28WB1X1293 GE Oven Screw140WB07K10418 GE Oven Griddle Vent141WB07K10432 GE Oven Cover142WB28X33794 GE Burner Griddle143WB28K10505 GE Oven Infrared Burner144WB15K10088 GE Range Handle Cover145WB13K10030 GE Oven Igniter Glow Bar145WB13X25261 GE Oven Igniter Glowbar146GRIDDLE BODY WELD147WB32K10040 GE Oven Grate Grill148WB36K10919 GE Oven Grill Baffle149WB32K10039 GE Oven Grille Body Assembly151WB49K10038 GE Oven Grease Trough Assembly152WB34K10131 GE Oven Reflector Assembly156WB07K10301 GE Oven Cover157WB07K10295 GE Range Griddle Plate158WB02K10208 GE Griddle Bracket159WB32K10042 GE Oven Griddle Weld Plate Assembly169WB31K10226 GE Mesh Frame210WB21K10128 GE Oven High Limit Switch211WB02K10209 GE Support Bracket219WB49K10015 GE Shield Bulb Thermostat265WB02K10365 GE Oven Foot Grate781WB31K10223 GE Oven Griddle Butcher Block800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18877WB01T10048 GE Oven Type A Shoulder Screw 10-161000WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
