ZGU486NRP6SS CONTROL PANEL

ZGU486NRP6SS CONTROL PANEL

Written by

in

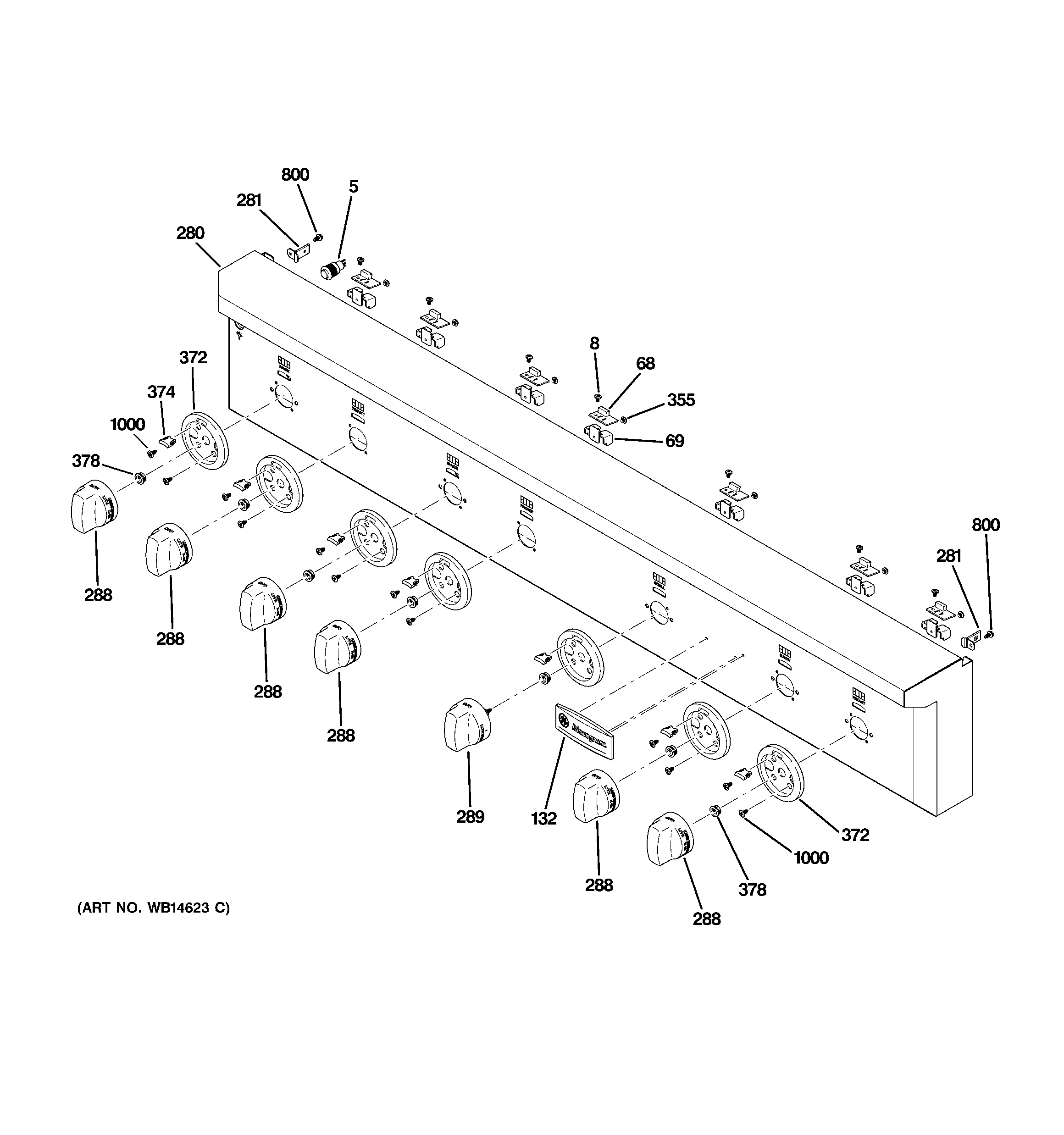

ZGU486NRP6SS CONTROL PANEL

Products

PositionProduct
5WB21K10139 GE Oven LED Switch
8WB01K10002 GE Oven Screw 8-32
68WB25K10014 GE Oven LED Board
69WB02K10214 GE LED Bracket
132WB02K10295 GE Oven Monogram Badge
280WB36K10975 GE Control Panel & Rail Assembly
281WB02K10211 GE Range Bracket Control Panel
288WB03K10359 GE Oven Knob Assembly
289WB03K10257 GE Oven Thermostat Knob Assembly
355WB01K10029 GE Oven Screw 832 1/8
372WB07K10299 GE Knob Bezel
374WB02K10216 GE Oven Lens Bezel
378WB02K10217 GE Bushing Bezel
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1000WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
