ZGU486NRP6SS GAS & BURNER PARTS

Products

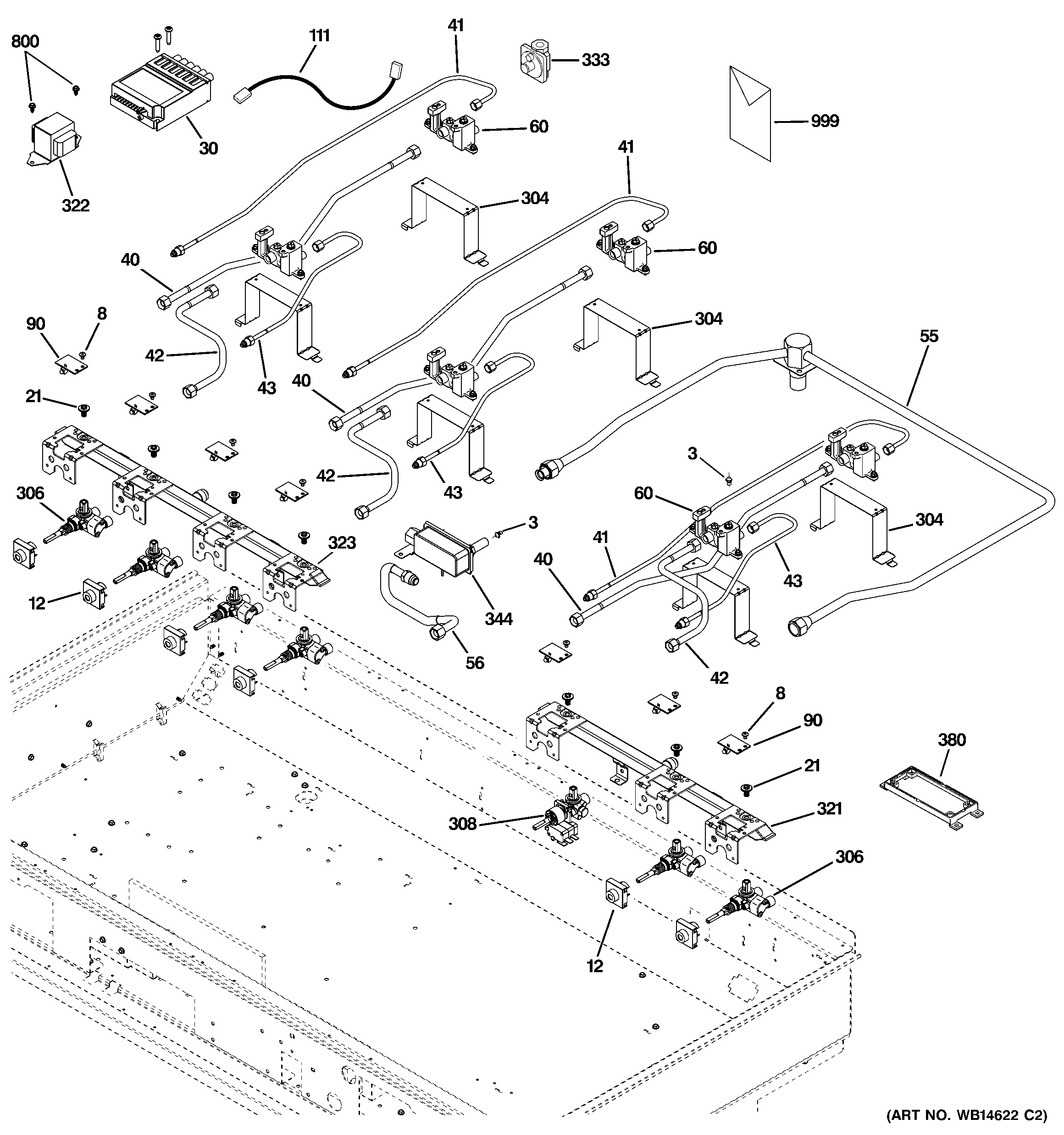

Position	Product
3	WB28K10530 GE Oven Grill Spud Orifice
3	WB28T10159 GE Oven NG Simmer Orifice Spud
3	WB28T10155 GE Oven NG Main Orifice Spud
3	WB28T10117 GE Oven LP Main Orifice Spud
3	WB28T10118 GE Oven LP Main Orifice Spud
3	WB28K10529 GE Oven Griddle Spud Orifice
8	WB01K10002 GE Oven Screw 8-32
12	WB18X31493 GE Burner Box Harness
21	WB01K10067 GE Oven Screw 1/4" HD 20
30	MODULE SPARK 6+0
40	WB28K10509 GE Nut and Tube Assembly
41	WB28K10511 GE Tube and Nut Assembly
42	WB28K10510 GE Oven Tube and Nut Assembly
43	WB28K10512 GE Tube and Nut Assembly
55	ELBOW SWAGED ASM
56	WB28K10514 GE Grill Tube and Nut Assembly
60	WB28T10114 GE Oven Injector Burner 18K
90	WB25K10012 GE Oven LED Assembly
111	WB18K10047 GE Oven HV Harness
304	WB02K10192 GE Range Injection Bracket
306	VALVE DUAL
308	WB21K10126 GE Oven Switch Valve Assembly
321	WB28K10533 GE Oven Pipe Manifold Assembly
322	WB27K10298 GE Oven Transformer
323	WB28K10534 GE Left Pipe Manifold Assembly
333	WB21K10137 GE Oven Regulator
344	WB19K10033 GE Oven Safety Valve
380	BRACKET POWER SUPPLY
800	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
999	GEN 31-10697
999	GEN 31-14752
999	GEN 31-10691
999	WB02K10359 GE Oven Mastic Tape 4 in x 2 in
999	GEN 31-10693
999	WB02T10111 GE Cleaner Stainless Steel
999	GEN 45-85119
