ZIC360NHALH CONTROLS & COMPONENTS

ZIC360NHALH CONTROLS & COMPONENTS

Written by

in

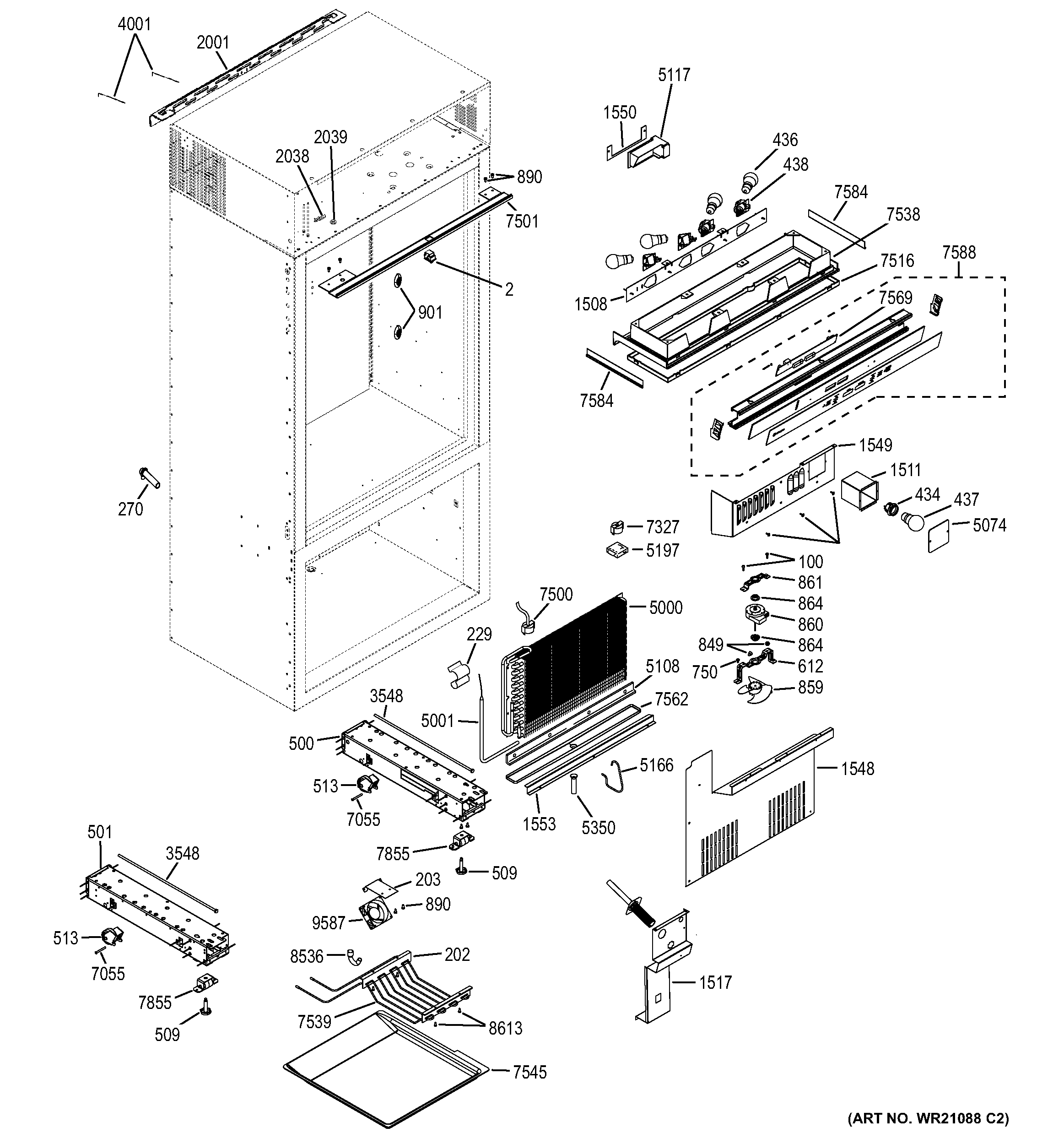

ZIC360NHALH CONTROLS & COMPONENTS

Products

PositionProduct
2SWITCH LIGHT
100SCREW, 10-24 X 1/2 TYPE
202BRACKET COND SUPPORT BM
203BRACKET FAN MTG
229GEN WR02X10552
270WR02X13037 GE Water Fill Grommet
434WR02X11626 GE Refrigerator Light Socket
436RANGE ONLY 40W 120V APPL BULB
438WR02X10591 GE Light Socket and Terminal
500WR13X30113 GE Refrigerator Right HandBase Channel
501WR13X30112 GE Refrigerator Left Hand Base Channel
509LEVELING LEG
513WR2X8377 GE Refrigerator Wheel Assembly
612WR02X10653 GE Refrigerator Orifice Fan Bracket
750WR1X1826 GE Refrigerator Screw
849BUMPER
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
890WD2X295 GE Refrigerator Screw
901WR71X10325 GE Refrigerator Air Diffuser
1508FIXTURE LIGHTING
1511BRACKET LIGHT HOUSING MT
1517WR02X13607 GE Refrigerator Fill Tube Cover
1548WR74X23406 GE Refrigerator Evaporator Cover
1549WR74X10353 GE Refrigerator Evaporator Fan Cover Service
1550WR17X11009 GE Refrigerator Bracket Damper Mounting
1553WR17X23352 GE Evaporator Trough Catch
2001WR02X42385 GE Wall Mounting Bracket
2038HAIRPIN COTTER
2039WR01X10906 GE Washer 3/8"
3548WR01X10256 GE Refrigerator Base Shaft
4001ROD
5000WR87X20947 GE Refrigerator Evaporator BM Assembly
5001WR51X10125 GE Refrigerator Defrost Heater
5074WR17X10347 GE Refrigerator Light Shield
5108WR17X10349 GE Refrigerator Drain Baffle
5117DAMPER ASM
5166WR01X10045 GE Refrigerator Wire RET Evaporator Heater
5197WR02X10145 GE Refrigerator Left Hand Evaporator Baffle
5350WR17X26689 GE Refrigerator Drain Tube
7055WR02X43425 GE Wheel Axle
7327WR50X10003 GE Refrigerator Thermostat
7500WR50X10105 GE Refrigerator Evaporator TOD
7501WR17X11561 GE Refrigerator Switch Plate Left Hand
7516WR17X11014 GE Refrigerator Light Shield
7538WR17X11015 GE Trim Lighting
7539WR84X23357 GE Refrigerator Bottom Condenser BM
7545WR17X11016 GE Refrigerator Drain Pan
7562WR17X11098 GE Refrigerator Evaporator Trough
7569WR55X23353 GE Refrigerator Temperature Control Board Assembly
7584WR38X10255 GE Light Trim Gasket
7588WR55X23503 GE Refrigerator HMI Control Assembly
7855WR02X11210 GE Refrigerator Front Roller Assembly
8536WR17X10675 GE Refrigerator Drain Trap AUX Condenser
8613WR1X2129 GE Screw
9587WR60X23405 GE Refrigerator Drain Fan Assembly
