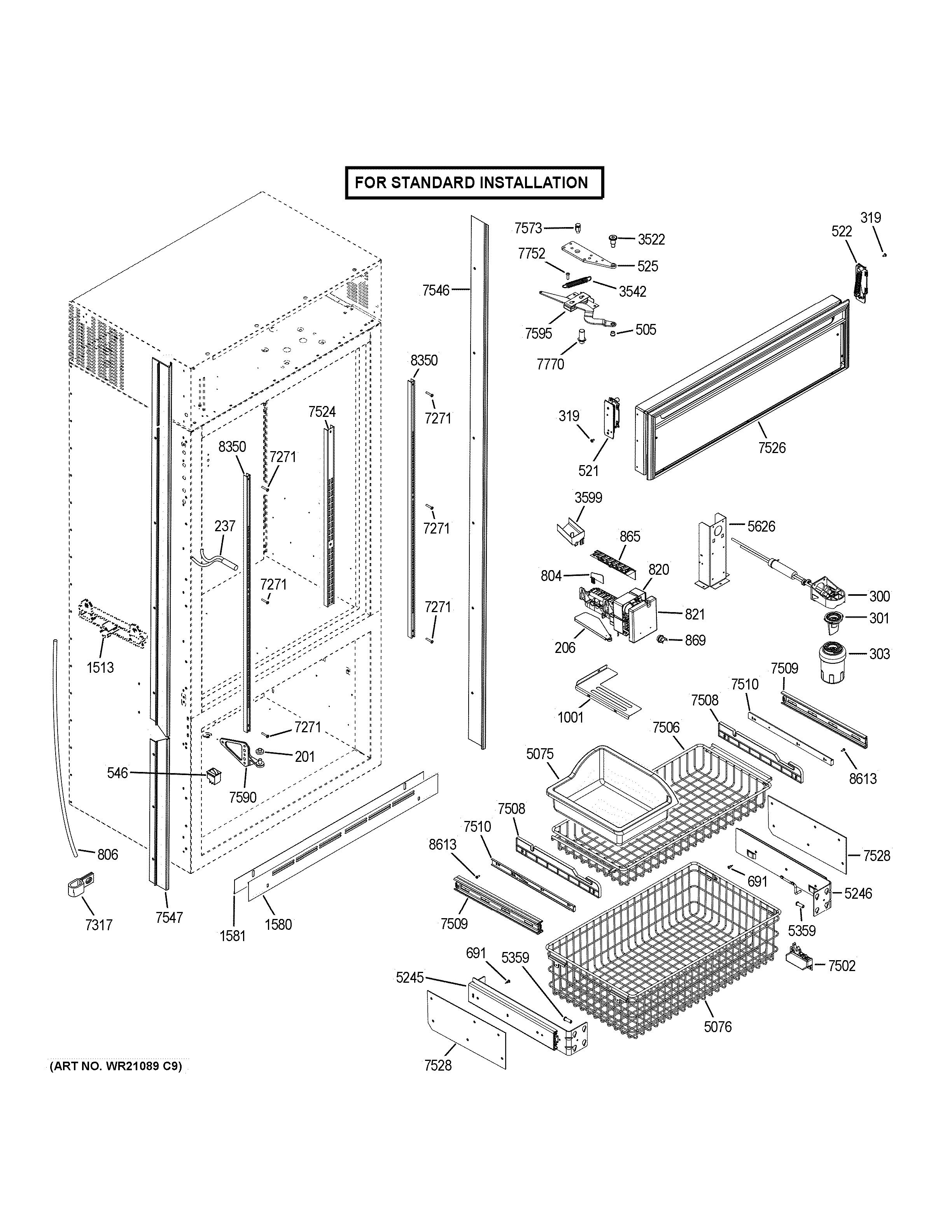

ZIC360NHCLH CABINET – STANDARD

ZIC360NHCLH CABINET – STANDARD

Written by

in

ZIC360NHCLH CABINET – STANDARD

Products

PositionProduct
201WR02X10953 GE Refrigerator Bushing Hinge Bottom
206WR29X35945 GE Refrigerator Feeler Arm
237WR55X10025 GE Refrigerator Temperature Sensor
300MWF MANIFOLD
301WR17X22070 GE Water Filter Bypass Plug
303MWFP GE Replacement Water Filter Pureline for Refrigerator
319WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
505WR02X10951 GE Refrigerator Bushing Arm Nylon
521WR13X10730 GE Left Grill Hinge
522WR13X10204 GE Refrigerator Left Grille Hinge Assembly
525WR13X23350 GE Refrigerator Upper Hinge Case
546FREEZER LIGHT SWITCH
691WR1X2138 GE Refrigerator Screw
804WR29X10054 GE Refrigerator Ice Maker Guard Rail
806WR17X1948 GE Refrigerator Water Line
821WR29X10082 GE Ice Maker Cover
865WR29X10083 GE Refrigerator Ice Maker Stripper
869WR30X10093 GE Refrigerator Ice Maker
1001WR29X10107 GE Refrigerator Ice Shield
1513WR02X10942 GE Refrigerator Thermistor Holder
1581WR74X23504 GE Refrigerator Toekick Service Kit
3522WR01X10752 GE Refrigerator Shoulder Bolt
3542WR01X10255 GE Refrigerator Spring Fresh Food Door Closure
3599WR29X20863 GE Refrigerator Cup Fill Assembly
5075WR32X10075 GE Refrigerator Ice Bucket
5076WR32X29399 GE Refrigerator Large Freezer Basket
5245WR72X10124 GE Refrigerator Left Hand Slide Support Assembly
5246WR72X10396 GE Refrigerator Drawer Slide Assembly
5359WR01X10049 GE Refrigerator Screw TRUSS HD 1/4-20 X
5626BRACKET WATER FILTER
7271WR01X10051 GE 10-24 x 1" Phillips Head Tap
7317WR17X3046 GE Clamp 1/4"
7502WR02X13480 GE Refrigerator Closure Assembly
7506WR32X29396 GE Refrigerator Small Freezer Basket
7508WR72X10080 GE Refrigerator Support Assembly
7509WR72X10081 GE Refrigerator Upper Slide Liner
7510WR72X10082 GE Refrigerator Slide Basket
7524TRACK SHELF CENTER
7526WR74X10343 GE Grill Assembly Custom
7528WR72X10085 GE Refrigerator Freezer Slide Shim
7546WR17X12831 GE Refrigerator Trim Case Right Hand Side
7547WR17X23885 GE Refrigerator Left Hand Trim Case
7573WR01X10258 GE Spring Stud
7590WR13X23349 GE Refrigerator Hinge Assembly Case Bottom Left Hand
7595WR02X10979 GE Refrigerator Link Actuator Left Hand
7752WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
7770WR02X11209 GE Refrigerator Shear Pin
8350WR17X20773 GE Refrigerator Shelf Track
8613WR1X2129 GE Screw
