ZICP360SRDSS CONTROLS & COMPONENTS

ZICP360SRDSS CONTROLS & COMPONENTS

Written by

in

ZICP360SRDSS CONTROLS & COMPONENTS

Products

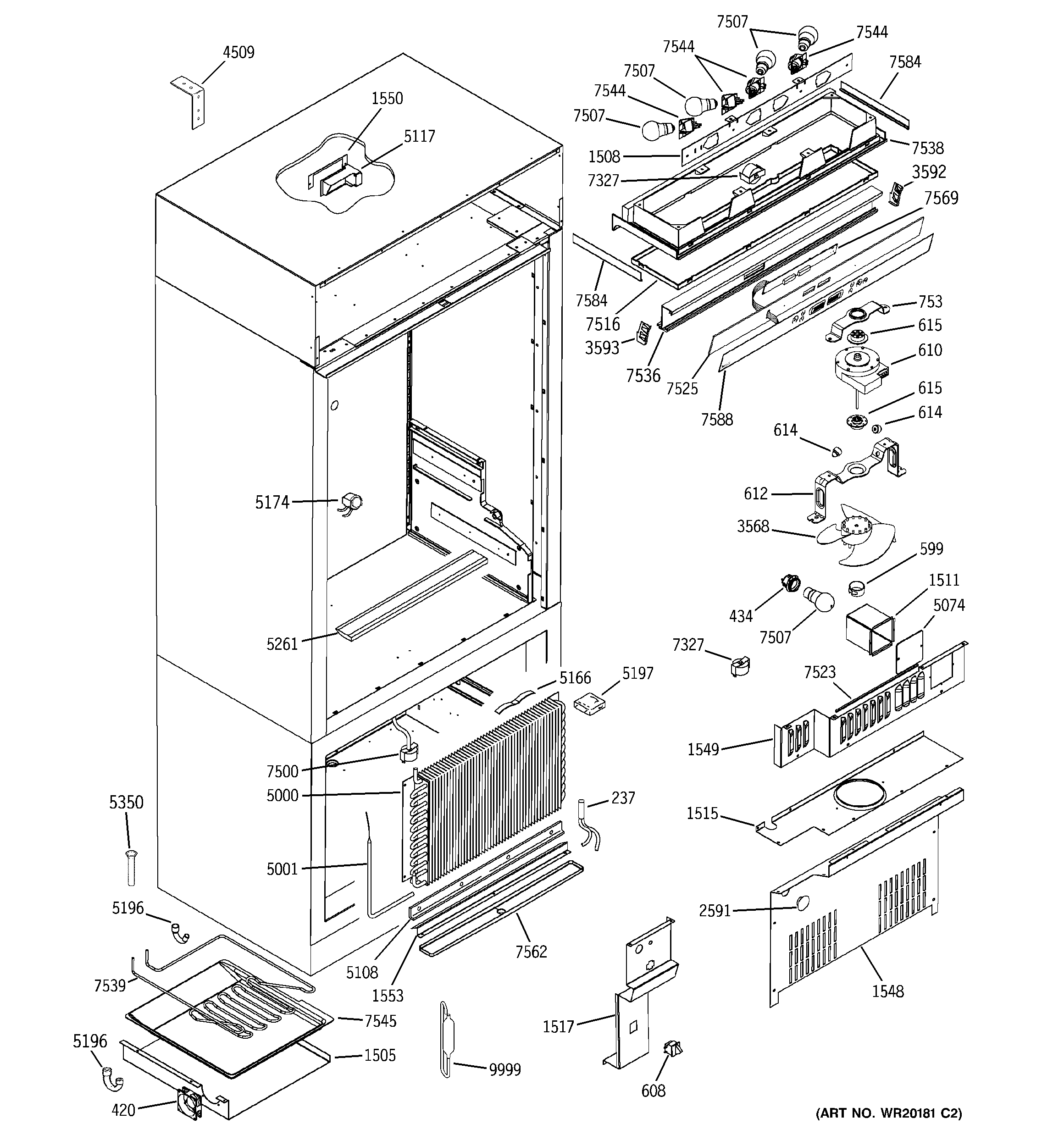

PositionProduct
237WR55X10025 GE Refrigerator Temperature Sensor
420WR60X10225 GE Refrigerator Fresh Food Fan
434WR02X11626 GE Refrigerator Light Socket
599WR02X12149 GE Refrigerator Ring
608WR23X427 GE Refrigerator Freezer Light Switch
610WR60X10185 GE Refrigerator Evaporator Fan Motor
612WR02X10653 GE Refrigerator Orifice Fan Bracket
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
753WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
1505GEN WR17X11006
1508FIXTURE LIGHTING
1511BRACKET LIGHT HOUSING MT
1515WR74X10292 GE Evaporator Orifice
1517WR74X10086 GE Refrigerator Fill Tube Cover
1517WR49X10093 GE Refrigerator Fill Tube Kit
1548WR74X10293 GE Refrigerator Evaporator Cover
1549WR74X10353 GE Refrigerator Evaporator Fan Cover Service
1550WR17X11009 GE Refrigerator Bracket Damper Mounting
1553WR17X11010 GE Refrigerator Water Collector
2591GEN WR02X10154
3568EVAPORATOR FAN BLADE
3592WR02X11291 GE Right HMI Endcap
3593LH HMI ENDCAP
4509GEN WR01X11130
5000WR85X10007 GE Refrigerator Evaporator Coil
5001WR51X10015 GE Refrigerator Defrost Heater
5074WR17X10347 GE Refrigerator Light Shield
5108WR17X10349 GE Refrigerator Drain Baffle
5117DAMPER ASM
5166WR01X10045 GE Refrigerator Wire RET Evaporator Heater
5174WR50X10003 GE Refrigerator Thermostat
5197WR02X10145 GE Refrigerator Left Hand Evaporator Baffle
5261WR49X10015 GE Refrigerator Mullion Block Kit Bottom MT
5350WR17X26689 GE Refrigerator Drain Tube
7500WR50X10030 GE Refrigerator Evaporator. Thermostat
7507RANGE ONLY 40W 120V APPL BULB
7516WR17X11014 GE Refrigerator Light Shield
7525WR55X10918 GE Refrigerator HMI Control Assembly
7536GEN WR74X10238
7538WR17X11015 GE Trim Lighting
7539GEN WR84X10029
7544GEN WR02X11024
7545WR17X11016 GE Refrigerator Drain Pan
7562WR17X11098 GE Refrigerator Evaporator Trough
7569BOARD ASM CONTROL TEMP
7584WR38X10255 GE Light Trim Gasket
9999GEN WR49X10143
