ZICP360SRDSS FREEZER SECTION, TRIM & COMPONENTS

ZICP360SRDSS FREEZER SECTION, TRIM & COMPONENTS

Written by

in

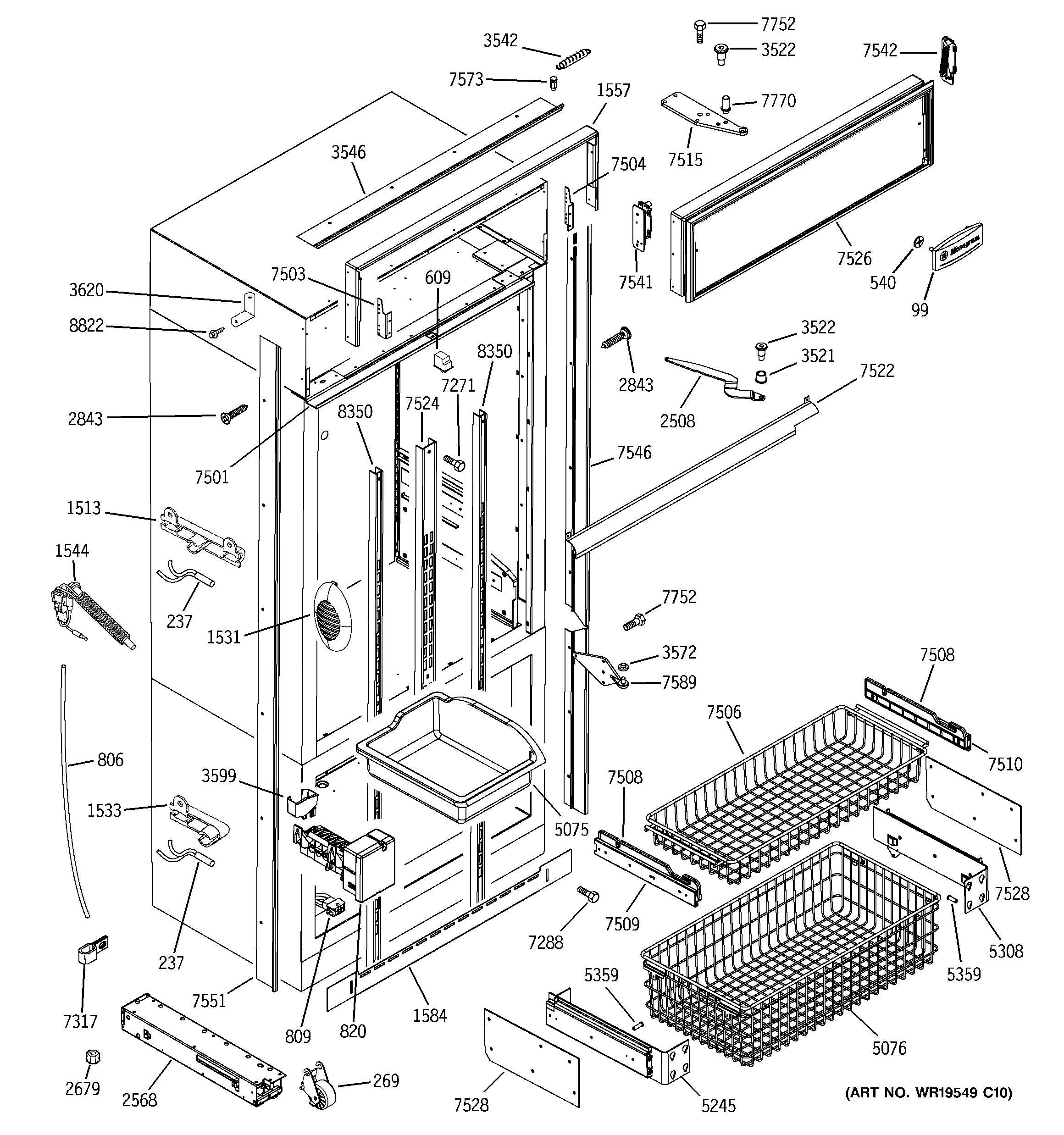

ZICP360SRDSS FREEZER SECTION, TRIM & COMPONENTS

Products

PositionProduct
99WB02X26123 GE Monogram Badge
237WR55X10025 GE Refrigerator Temperature Sensor
269GEN WR01X1803
540WR01X10300 GE Refrigerator Logo Clip
609WR23X37285 GE Light Switch
806WR17X1948 GE Refrigerator Water Line
820WR30X10093 GE Refrigerator Ice Maker
1513WR02X10942 GE Refrigerator Thermistor Holder
1531WR71X10325 GE Refrigerator Air Diffuser
1533GEN WR02X10944
1557GEN WR74X10081
1584GEN WR74X10218
2508WR02X10948 GE Refrigerator Door Actuator Arm
2568WR13X30112 GE Refrigerator Left Hand Base Channel
3521WR02X10951 GE Refrigerator Bushing Arm Nylon
3522WR01X10752 GE Refrigerator Shoulder Bolt
3542WR01X10255 GE Refrigerator Spring Fresh Food Door Closure
3546GEN WR17X11611
3572WR02X10953 GE Refrigerator Bushing Hinge Bottom
3599WR29X10092 GE Refrigerator Ice Maker Fill Cup
3620WR02X11256 GE Refrigerator Top Case Trim Bracket
5075WR32X10075 GE Refrigerator Ice Bucket
5076WR32X29399 GE Refrigerator Large Freezer Basket
5245WR72X10124 GE Refrigerator Left Hand Slide Support Assembly
5308WR72X10396 GE Refrigerator Drawer Slide Assembly
5359WR01X10049 GE Refrigerator Screw TRUSS HD 1/4-20 X
7288WR01X10065 GE Screw
7317WR17X3046 GE Clamp 1/4"
7501SWITCH PLATE RH
7506WR32X29396 GE Refrigerator Small Freezer Basket
7508WR72X10080 GE Refrigerator Support Assembly
7509WR72X10081 GE Refrigerator Upper Slide Liner
7510WR72X10082 GE Refrigerator Slide Basket
7515WR13X10656 GE Refrigerator Upper Hinge
7524GEN WR17X11097
7526GEN WR74X10219
7528WR72X10085 GE Refrigerator Freezer Slide Shim
7541WR13X10410 GE Refrigerator Grille Hinge Left Hand
7542WR13X10411 GE Grill Right Hinge
7546WR17X11562 GE Refrigerator Right Hand Hinge Side Trim
7573WR01X10258 GE Spring Stud
7589WR13X10209 GE Refrigerator Bottom Right Hand Hinge Assembly
7752WR1X2138 GE Refrigerator Screw
8350WR17X20773 GE Refrigerator Shelf Track
8822WH2X1211 GE Screw
