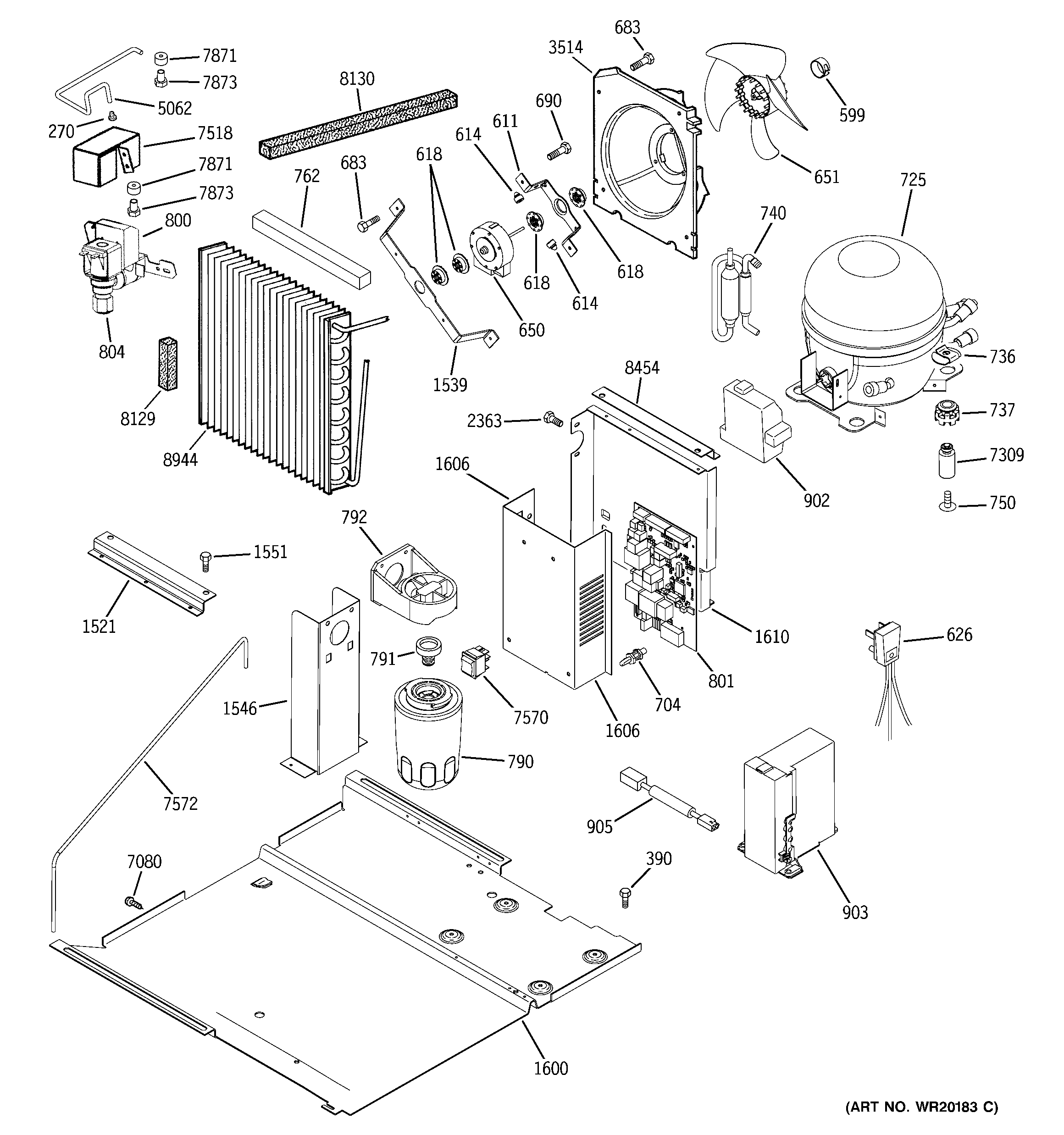

ZICP360SRDSS SEALED SYSTEM & MOTHER BOARD

ZICP360SRDSS SEALED SYSTEM & MOTHER BOARD

Written by

in

ZICP360SRDSS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
270WR2X8474 GE Fill Tube
599WR02X12149 GE Refrigerator Ring
611WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
614BUMPER
618WR02X10520 GE Refrigerator Fan Motor Grommet
626WR23X10300 GE Refrigerator Power Cord Assembly
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
690WZ5X158D GE Screw Package of 12
704WR01X10301 GE Refrigerator Main Board Standoff
725COMPRESSOR VCC3 REPL. KI
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
762GEN WR14X0313
790MWFP GE Replacement Water Filter Pureline for Refrigerator
800WR57X10033 GE Refrigerator Water Inlet Fill Valve
801BOARD ASM MAIN CONTROL
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
905WR23X10491 GE Refrigerator Harness Inverter Common
1539GEN WR02X12486
1546GEN WR02X12482
1600GEN WR17X11794
1606WR02X12570 GE Motherboard Cover
1610GEN WR17X11795
3514GEN WR17X11188
5062GEN WR02X10141
7309WR01X10308 GE Flat Washer 3/8" x 7/8"
7309WR1X1779 GE Refrigerator Stud Mounting Compressor
7518GEN WR02X10958
7570WR49X10070 GE Refrigerator Master Light SW. Kit
7572GEN WR86X10042
7871WR57X57 GE Refrigerator Nut
8129GEN WR14X10042
8130WR14X10043 GE Top Foam Baffle
8454WR38X10190 GE Refrigerator Edge Trim
8944WR84X212 GE Refrigerator Condenser
