ZICP720ASASS CONTROLS & COMPONENTS

ZICP720ASASS CONTROLS & COMPONENTS

Written by

in

ZICP720ASASS CONTROLS & COMPONENTS

Products

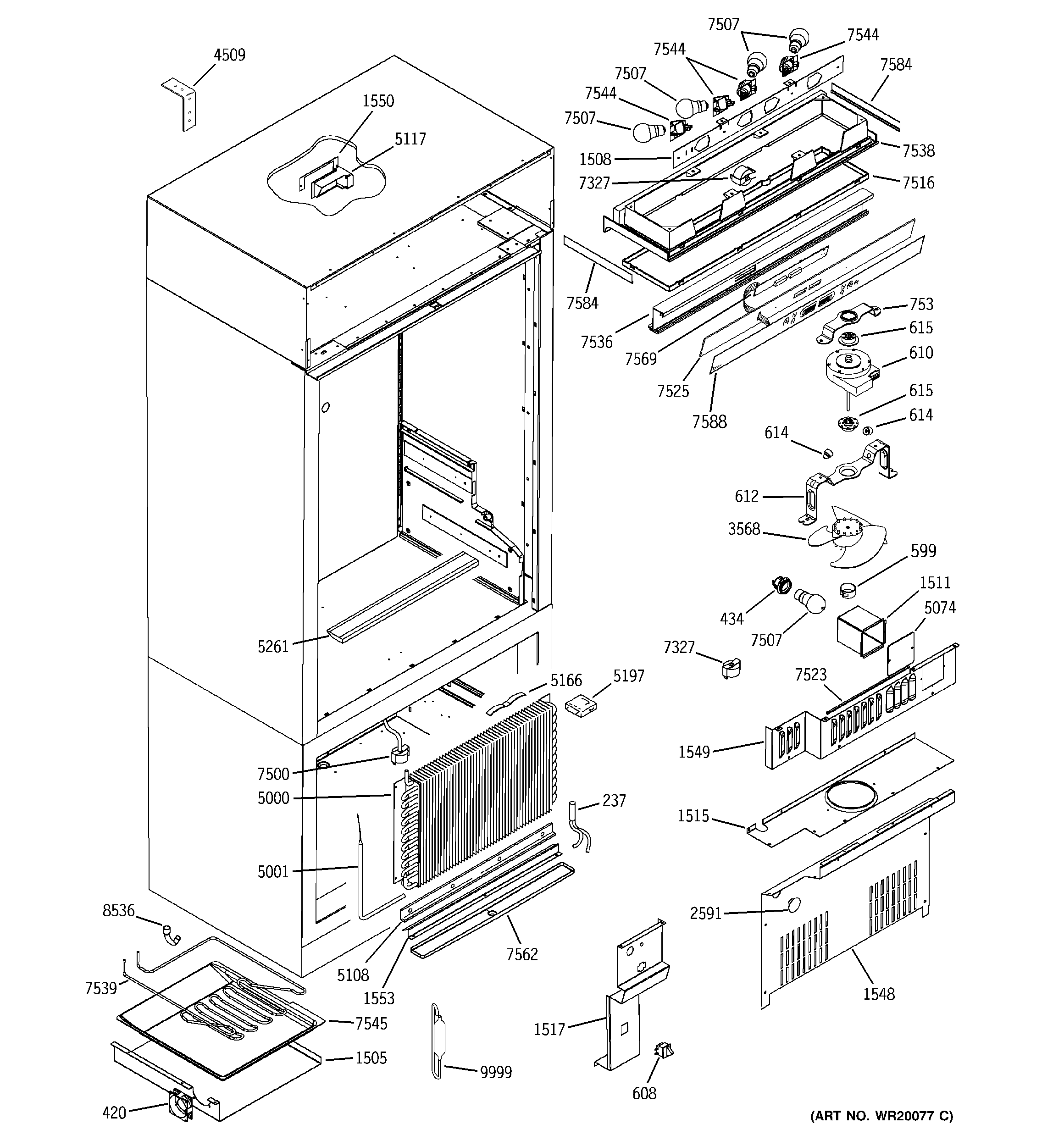

PositionProduct
420WR60X10225 GE Refrigerator Fresh Food Fan
608WR23X427 GE Refrigerator Freezer Light Switch
610WR60X10185 GE Refrigerator Evaporator Fan Motor
612WR02X10653 GE Refrigerator Orifice Fan Bracket
614BUMPER
1505GEN WR17X11006
1508FIXTURE LIGHTING
1515WR74X10292 GE Evaporator Orifice
1517WR74X10086 GE Refrigerator Fill Tube Cover
1548WR74X10293 GE Refrigerator Evaporator Cover
1549WR74X10353 GE Refrigerator Evaporator Fan Cover Service
1550WR17X11009 GE Refrigerator Bracket Damper Mounting
2591GEN WR02X10154
4509GEN WR01X11130
5000WR85X10007 GE Refrigerator Evaporator Coil
5001WR51X10015 GE Refrigerator Defrost Heater
5074WR17X10347 GE Refrigerator Light Shield
5108WR17X10349 GE Refrigerator Drain Baffle
5117DAMPER ASM
5166WR01X10045 GE Refrigerator Wire RET Evaporator Heater
5197WR02X10145 GE Refrigerator Left Hand Evaporator Baffle
7500WR50X10030 GE Refrigerator Evaporator. Thermostat
7516WR17X11014 GE Refrigerator Light Shield
7538WR17X11015 GE Trim Lighting
7539GEN WR84X10029
7544GEN WR02X11024
7545WR17X11016 GE Refrigerator Drain Pan
7562WR17X11098 GE Refrigerator Evaporator Trough
7569BOARD ASM CONTROL TEMP
7584WR38X10255 GE Light Trim Gasket
7588WR55X10918 GE Refrigerator HMI Control Assembly
